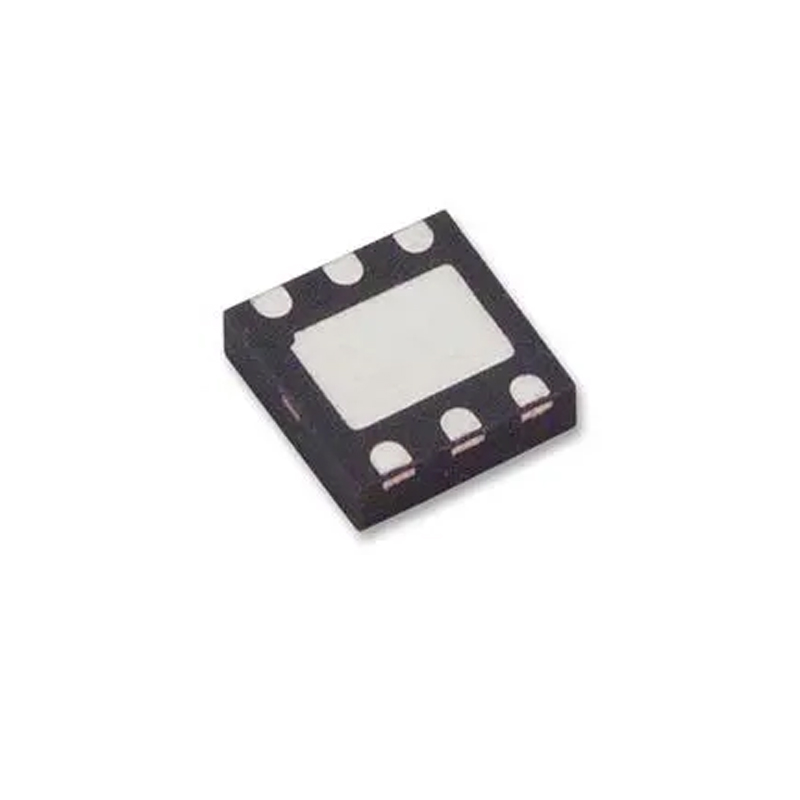

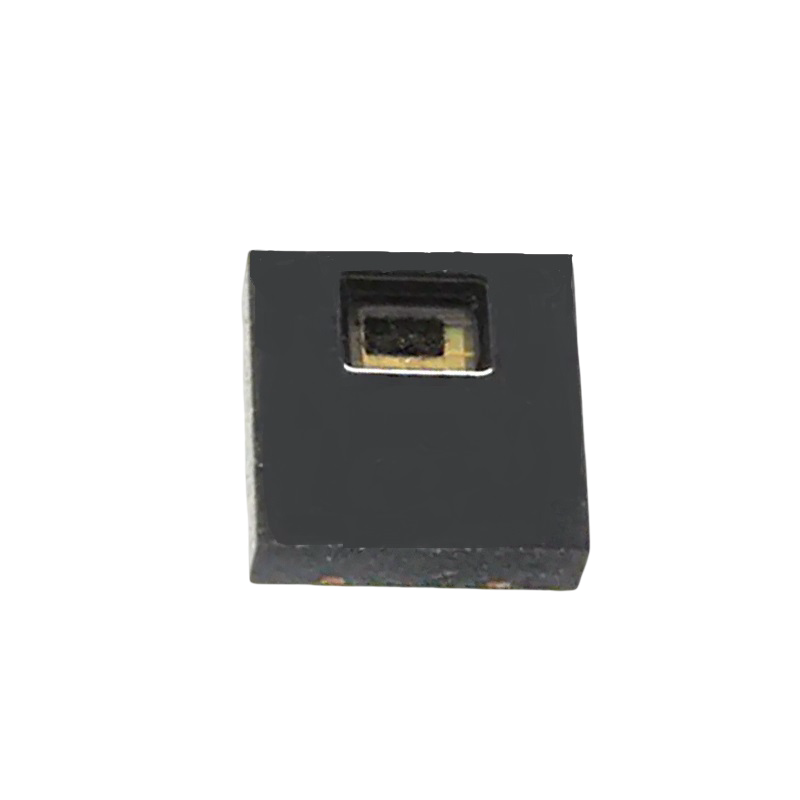

TE Connectivity HTU21D Temperature and Humidity Sensor, 0-100% RH, -40°C to 125°C, I2C Digital, DFN-6 Package
The TE Connectivity HTU21D is a fully calibrated digital temperature and humidity sensor in a compact DFN-6 package, providing linearized I2C output for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32 across a 1.8V to 3.6V supply range.
Features
- High-accuracy digital sensor with 0-100% RH humidity and -40°C to 125°C temperature measurement range.
- Fully calibrated and linearized I2C digital output, eliminating the need for user calibration.
- Ultra-compact 3 x 3 x 0.9 mm DFN package ideal for space-constrained OEM and embedded applications.
- Low power consumption with optional PTFE filter (F version) for protection against dust and water.
- Individually factory calibrated and marked for traceability, with onboard electronic identification.
Out of stock
The HTU21D from TE Connectivity (formerly Measurement Specialties) is a high-performance MEMS-based capacitive humidity sensor with an integrated band-gap temperature sensor. It delivers fully calibrated, linearized digital signals via a two-wire I2C interface, simplifying system design and reducing microcontroller processing overhead. The sensor’s robust silicon-based construction ensures long-term stability and fast recovery from condensation or saturation events.
Designed for high-volume and cost-sensitive applications, the HTU21D operates from 1.8V to 3.6V, making it compatible with modern low-power microcontrollers. It features adjustable resolution for power vs. accuracy optimization and includes a low battery detection function. The optional F version incorporates a hydrophobic PTFE membrane filter, providing IP67-equivalent protection against dust and water ingress without significantly impacting sensor response time.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.3 × 0.3 × 0.09 cm |
