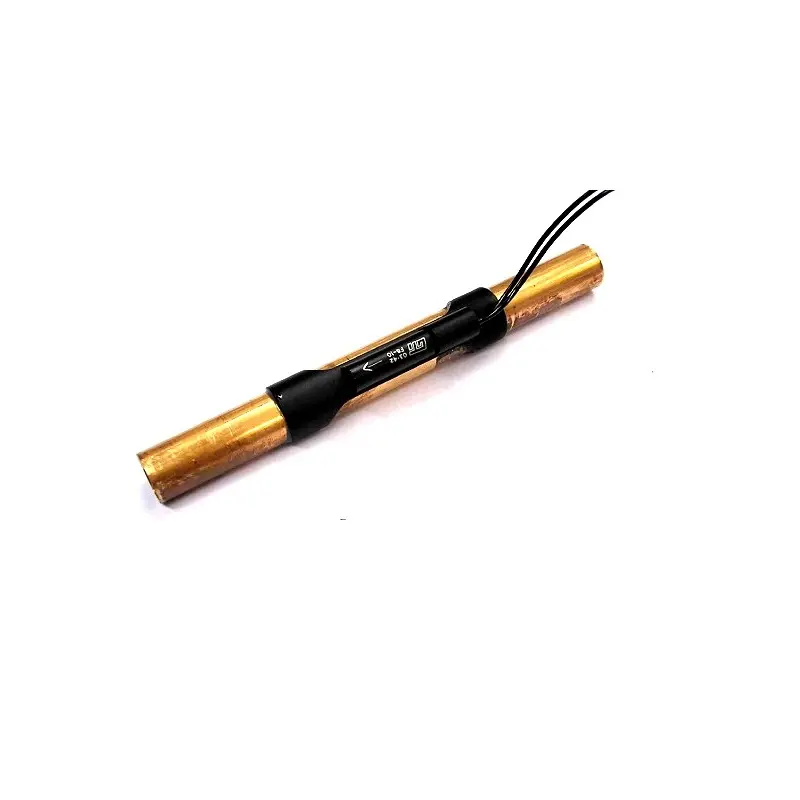

TE Connectivity FS-10 Flow Switch 0–500 mL/min 15mm Copper Pipe SPST-NO 10 Bar
The TE Connectivity FS-10 is a vertical-mount flow switch designed for 15mm copper piping systems, providing reliable SPST-NO reed switch actuation for flow rates from 0 to 500 mL/min. It is suitable for monitoring water and air flow in central heating, cooling, and leak detection systems with a maximum pressure rating of 10 Bar.
Features
- SPST-NO (Form A) reed switch rated for 300 VDC, 1.0A, and 15 Watts switching capacity.
- 15mm copper pipe fitting with minimal pressure drop, operates from a small head of water.
- Rugged construction with ruthenium contacts, rated for 0–85°C operation in water medium.
- Vertical mounting (±15°) with high shock (50g for 11ms) and vibration (35g up to 500Hz) tolerance.
- Includes 1.0-meter long cable with 2 x 16/0.2mm PVC insulated wires for easy installation.
Out of stock
The FS-10 Flow Switch from TE Connectivity utilizes a hermetically sealed reed switch mechanism actuated by a magnetic piston. Flow of the medium (water or air) moves the piston, which closes the SPST-NO (Single-Pole, Single-Throw, Normally Open) contacts. This design ensures high reliability and long life with minimal pressure drop, making it ideal for systems where low flow initiation is critical.
Constructed with a 15mm copper pipe body and ruthenium contacts, the switch is built for durability in residential and light industrial fluid control applications. Its vertical mounting orientation and robust mechanical ratings allow for stable operation in environments with significant vibration and shock, such as in power showers, central heating pumps, and cooling system monitors.
Additional Information
| Weight | 0.063 kg |
|---|---|
| Dimensions | 18 × 11 × 1 cm |
