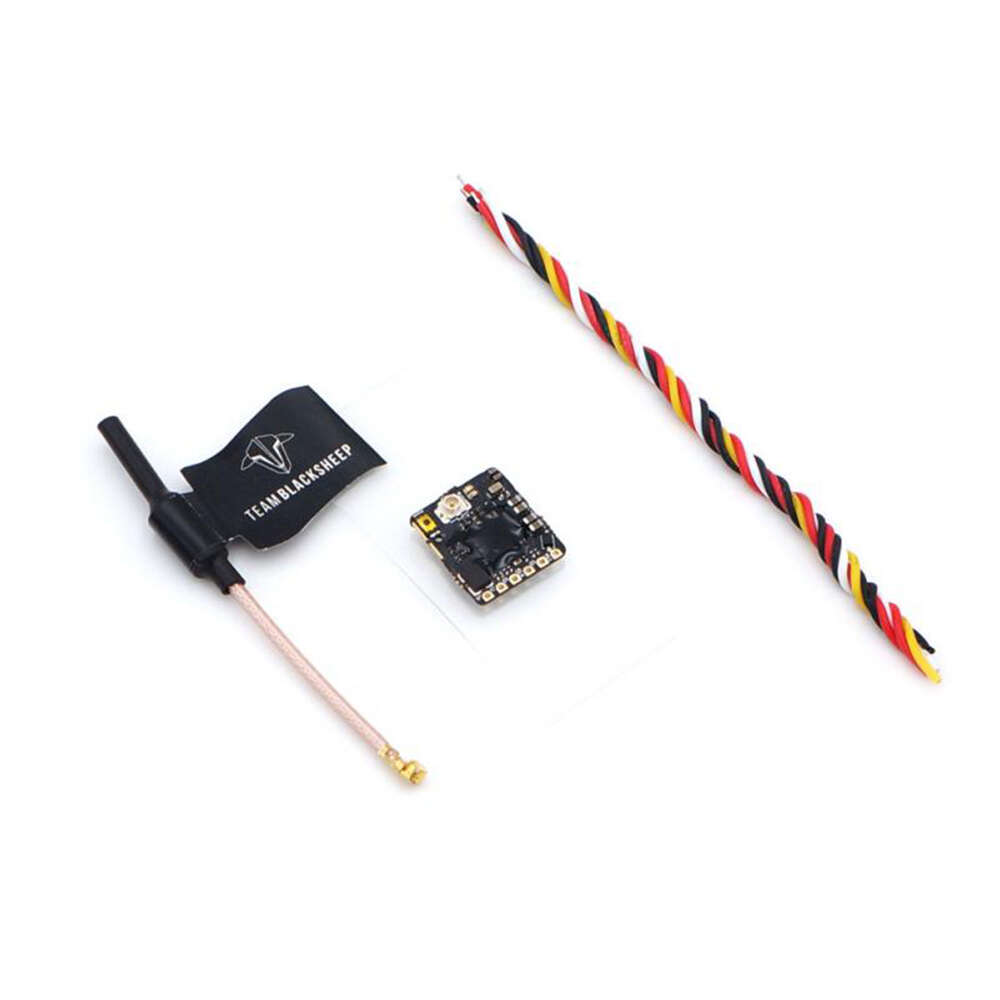

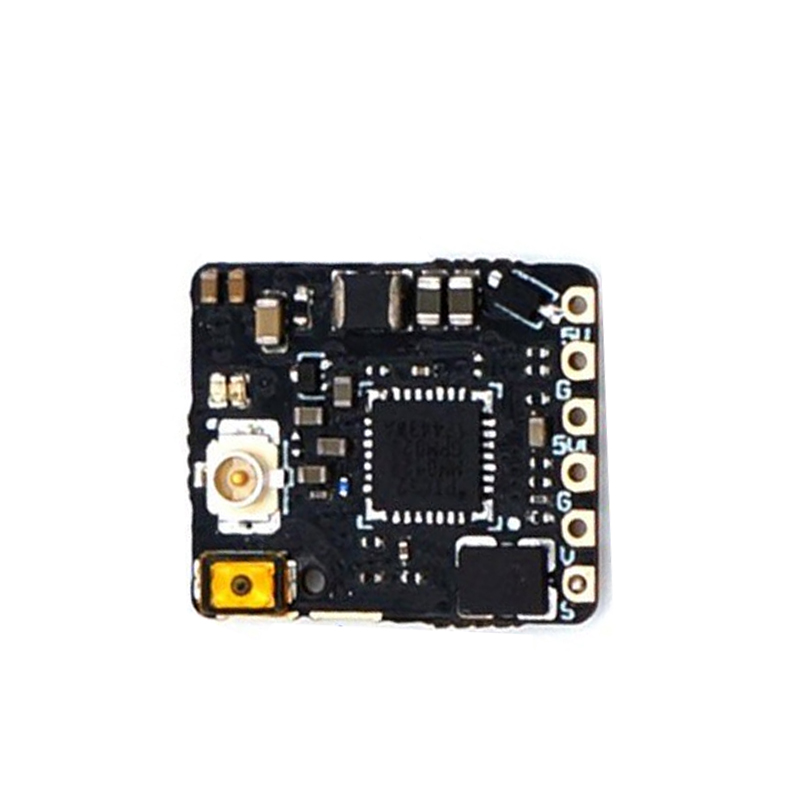

TBS Unify Pro32 Nano 5G8 V1.1 Video Transmitter
The TBS Unify Pro32 Nano 5G8 V1.1 is a compact, high-performance video transmitter designed for FPV drones, offering up to 500mW output power, ultra-clean transmission for multi-pilot environments, and advanced features like PitMode and OSD configuration via Betaflight.
Features
- Ultra-compact and lightweight design at just 1g, ideal for nano and micro drone builds.
- High-power output up to 500mW+ for robust video signal penetration and range.
- Advanced PitMode with team-race capability for safe power-up during FPV racing events.
- OSD-configurable via Betaflight for convenient channel, power, and band changes without buttons.
- Robust RF amplifier designed for high reliability, even in demanding flight conditions.
Out of stock
The TBS Unify Pro32 Nano V1.1 represents a significant evolution in nano-sized video transmitters, engineered for professional FPV pilots and racers. Its design focuses on maximizing output power and signal clarity while minimizing electrical noise, enabling up to 16 pilots to fly simultaneously on clean channels. The integrated SmartAudio and Tramp telemetry protocols allow for seamless integration with modern flight controllers like those running Betaflight or KISS, providing full control over VTX settings directly from your OSD or radio transmitter.
Built with a robust RF front-end, the Unify Pro32 Nano is engineered for durability and can withstand temporary operation without an antenna, a critical failsafe for protecting the module. Its wide input voltage range of 4.5V to 13V supports direct power from 1S to 3S LiPo batteries or regulated 5V/12V BECs, making it versatile for various multirotor platforms. The unit’s thermal management is designed for continuous high-power operation with adequate airflow.
Additional Information
| Weight | 0.001 kg |
|---|---|

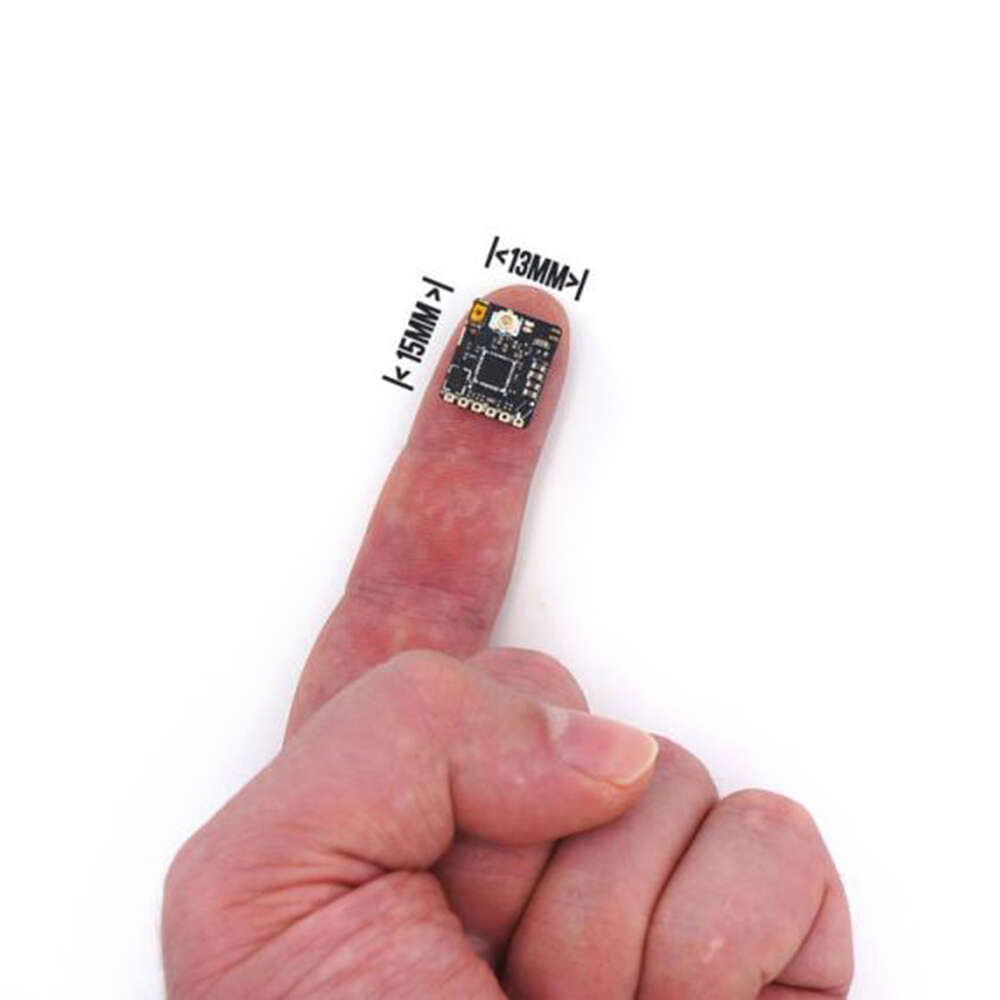

| Dimensions | 1.3 × 1 cm |
