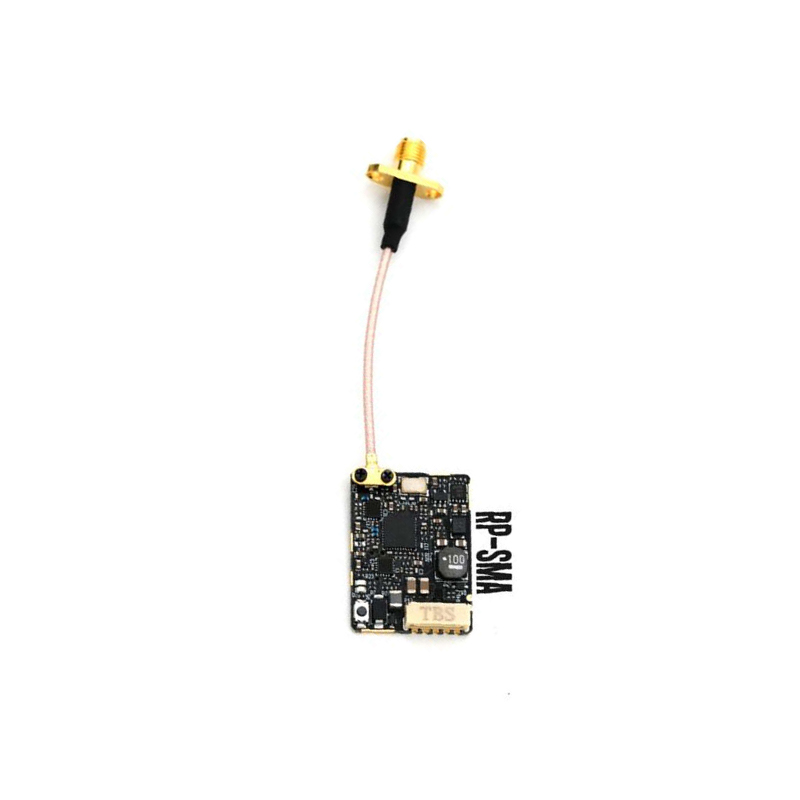

TBS TBS Unify Pro 5G8 HV Video Transmitter - RP-SMA
The TBS Unify Pro 5G8 HV is a compact, high-power 5.8GHz FPV video transmitter supporting 2S to 6S LiPo input and delivering up to 800mW of output with ultra-clean transmission for multi-pilot racing environments.
Features
- Ultra-compact and lightweight design at just 7g (without antenna).
- Wide 2S-6S LiPo input voltage range with integrated power filtering.
- High-power output up to 800mW with PitMode for race-day safety.
- Provides a regulated 5V output for direct camera power.
- Features SmartAudio and Tramp telemetry for OSD/FC channel control.
Out of stock
The TBS Unify Pro 5G8 HV (RP-SMA) is engineered for high-performance FPV racing and freestyle drones, offering a robust 800mW RF amplifier in a remarkably small footprint. Its direct 2S-6S battery input eliminates the need for an external voltage regulator, while integrated filtering ensures clean video feed even in electrically noisy environments. The unit includes a dedicated 5V BEC output to power your FPV camera directly.
Designed for competitive use, it features PitMode to keep the VTX at low power until armed, and supports SmartAudio and Tramp telemetry protocols for seamless channel, power, and band changes via Betaflight or similar flight controller OSDs. The robust construction allows for brief operation without an antenna, providing protection during bench testing.
Additional Information
| Weight | 0.05 kg |
|---|---|
| Dimensions | 6 × 6 × 4 cm |
