TBS Podracer AIO Flight Controller
The TBS Podracer AIO is a compact, all-in-one flight controller and 30A ESC designed for seamless integration with TBS Pro32 Nano VTX and Crossfire/Tracer Nano receivers. Featuring an F4 MCU with MPU6000 gyro and BLHeli32 firmware, it supports 2S-6S LiPo inputs for cinewhoops, racers, and long-range FPV builds.
Features
- Integrated 30A BLHeli32 4-in-1 ESC with support for Dshot600 and up to 6S input voltage.
- Compact F4 flight controller with MPU6000 gyro and dedicated UARTs for TBS Pro32 Nano VTX and Crossfire/Tracer Nano RX.
- Onboard AT7456E OSD chip for clean video overlay and Betaflight configuration.
- Ultra-lightweight design at just 7.6g, ideal for weight-sensitive micro and 5-inch builds.

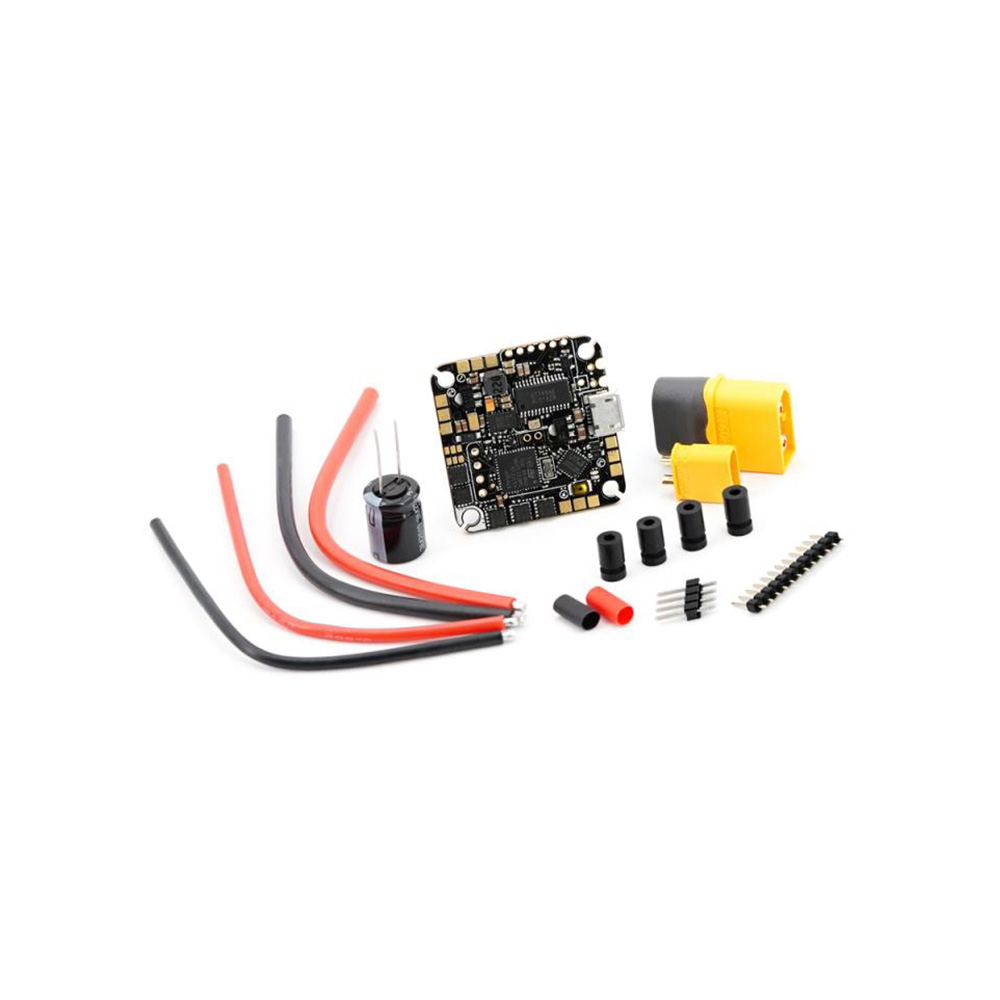

- Includes comprehensive accessory pack with capacitors, XT60/XT30 connectors, and pinheaders for VTX/RX.
Out of stock

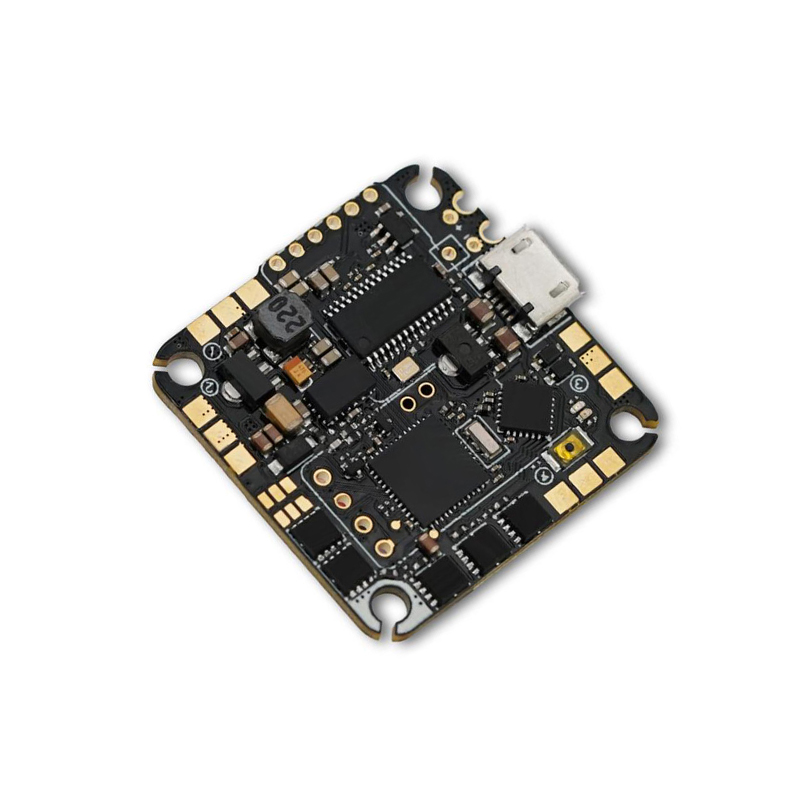

The TBS Podracer AIO consolidates a high-performance flight controller and a robust 30A electronic speed controller into a single, ultra-compact unit. Its design philosophy centers on minimizing wiring and simplifying builds that utilize the TBS ecosystem, specifically the Pro32 Nano video transmitter and Crossfire or Tracer Nano receivers. The board’s layout dedicates specific UARTs for these components, enabling a plug-and-play installation that reduces clutter and potential points of failure.
Engineered around an STM32F4 processor and an MPU6000 inertial measurement unit, the flight controller delivers stable and responsive flight characteristics. The integrated 4-in-1 ESC runs BLHeli32 firmware, providing advanced features like bidirectional Dshot for RPM filtering, a wide PWM frequency range (24-96KHz), and robust current handling with a 35A peak rating. The built-in AT7456E OSD chip allows pilots to configure and display critical flight data directly in their FPV feed without external components.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 10 × 9 × 3 cm |
