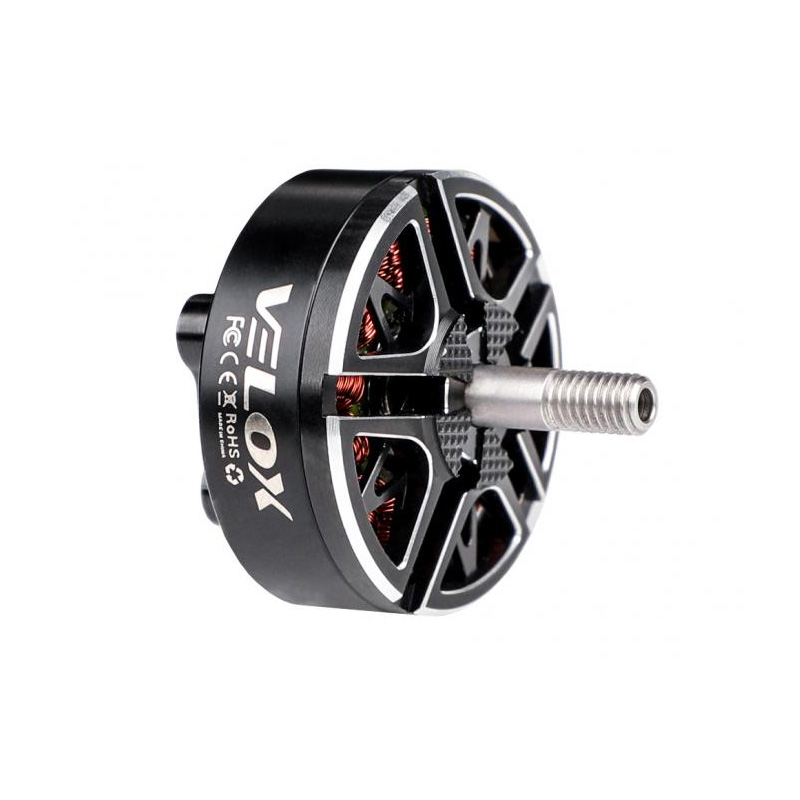

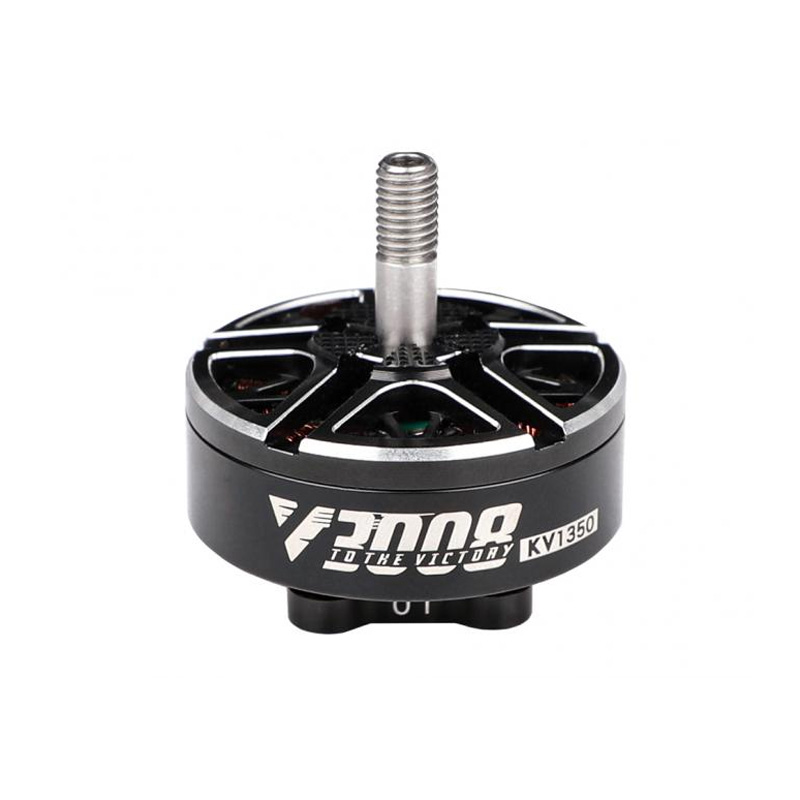

T-Motor Velox V3008 1350KV 6S Long-Range FPV Motor - 16x19mm M3 Mount

₹4,269.00 (Inclusive of all taxes)
Out of Stock

The T-Motor Velox V3008 is a 1350KV brushless motor engineered for 7-8 inch long-range FPV and racing drones, optimized for 6S LiPo power systems to deliver high efficiency, smooth control, and extended flight endurance.

Features

  • 1350KV rating optimized for 6S LiPo voltage and 7-8 inch propellers.
  • Designed for long-range FPV and racing applications requiring high efficiency and stability.
  • 16x19mm (M3) mounting pattern for broad frame compatibility.
  • Premium construction with durable components for reliable, long-lasting performance.
  • Lightweight design at approximately 70 grams balances power and flight responsiveness.

Out of stock

Description

The Velox V3008 from T-Motor represents a specialized brushless motor solution for pilots demanding extended flight times and smooth, controlled power delivery. Its 1350KV winding is precisely calibrated for 6S LiPo batteries, maximizing efficiency to reduce current draw and heat generation during long-range cruising and high-performance racing scenarios.

Built with high-grade materials and precision machining, the motor offers a robust thermal and mechanical design. The 16x19mm M3 mounting pattern ensures secure attachment to a wide range of 7-8 inch long-range and racing frames, while the optimized magnetic circuit and low-resistance windings contribute to its notable power efficiency and low operational noise.

Key Features

  • Optimized 1350KV winding for 6S LiPo operation, balancing torque and RPM for 7-8 inch props.
  • High-efficiency design reduces power consumption and heat buildup for extended flight endurance.
  • Durable construction with premium bearings and high-temp magnets for reliable long-term use.
  • 16x19mm (M3) mounting hole pattern ensures compatibility with most long-range drone frames.
  • Precision-balanced rotor for smooth operation and reduced vibration, enhancing flight stability and video feed quality.
  • Lightweight yet robust housing maximizes the power-to-weight ratio for responsive flight characteristics.

Applications

  • 7-inch and 8-inch long-range FPV drones for mapping, exploration, and endurance flights.
  • High-performance 7-inch FPV racing quads requiring efficient 6S power systems.
  • Heavy-lift cinematic platforms built on 7-8 inch frames for smooth, stable footage.
  • DIY multirotor builds targeting extended flight time with 6S LiPo batteries.

Technical Specifications

ModelT-Motor Velox V3008
KV Rating1350 KV
Motor TypeOutrunner Brushless
Stator Size30mm x 08mm (3008)
Rated Voltage6S LiPo (22.2V)
Max Current30A
Mounting Pattern16x19mm (M3)
Shaft DiameterStandard (M5)
WeightApprox. 70g
Recommended Prop Size7-8 inch

Frequently Asked Questions

What is the recommended propeller size for the T-Motor Velox V3008 1350KV motor?

The Velox V3008 is optimized for 7-inch and 8-inch propellers when used with a 6S LiPo battery. This combination provides the ideal balance of thrust, efficiency, and RPM for long-range flight and stable racing performance. Always ensure your ESC and battery can handle the current draw of your chosen prop.

What is the mounting pattern of this motor, and will it fit my frame?

This motor features a 16x19mm bolt hole pattern using M3 screws. This is a common mounting standard for many 7-inch and 8-inch long-range and racing frames. You should verify your frame's motor mounting hole spacing matches this pattern before purchase.

Can I run the Velox V3008 on a 4S battery, or is it strictly for 6S?

While the motor is specifically wound and optimized for 6S voltage (22.2V) to achieve its rated performance and efficiency, it can physically operate on lower voltages like 4S. However, on 4S, you will experience significantly reduced RPM and thrust, and it may not perform optimally with the large 7-8 inch propellers it's designed for.

What is the maximum current this motor can handle?

The specified maximum current for the Velox V3008 is 30A. It is crucial to pair it with Electronic Speed Controllers (ESCs) rated for at least this continuous current, preferably with a higher margin (e.g., 35A-40A ESCs) to ensure reliability, especially during aggressive throttle punches or when using larger propellers.

Package Includes

  • 1 x T-Motor Velox V3008 1350KV Brushless Motor
  • Mounting hardware (M3 screws)

Additional Information

Weight 0.085 kg
Dimensions 5 × 5 × 5 cm
