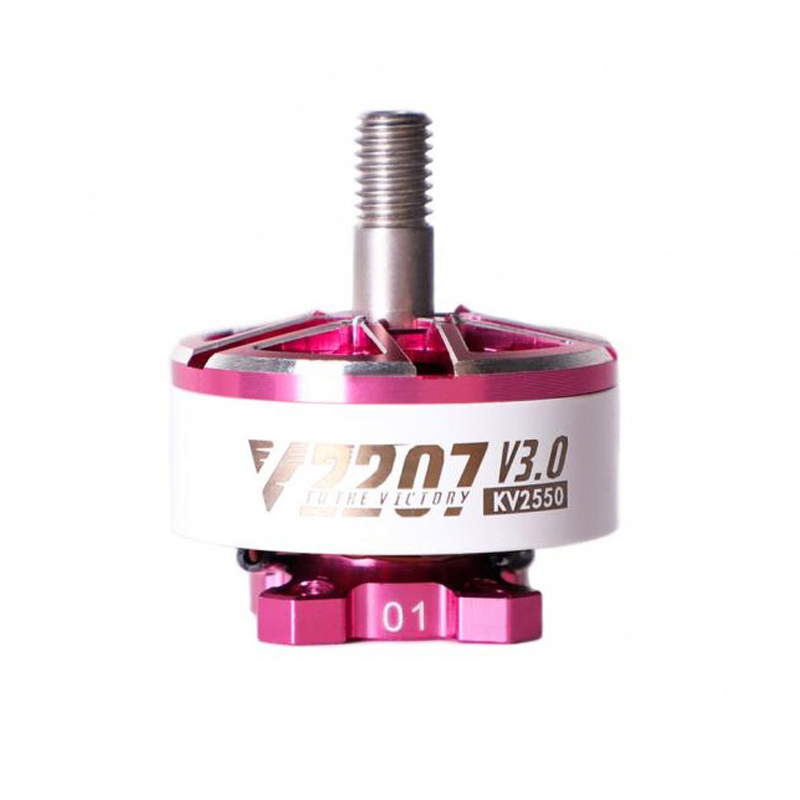

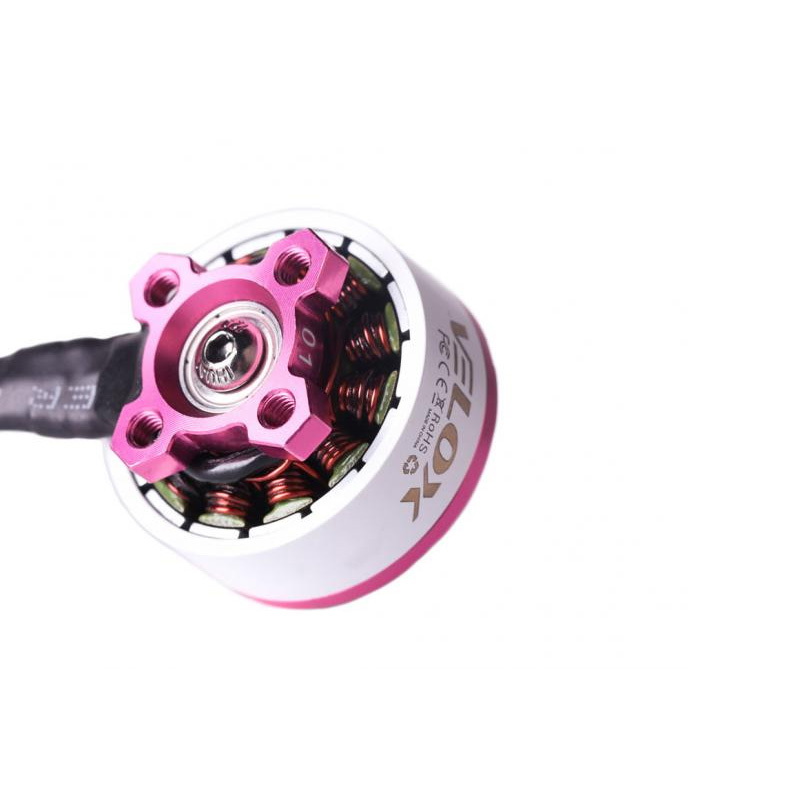

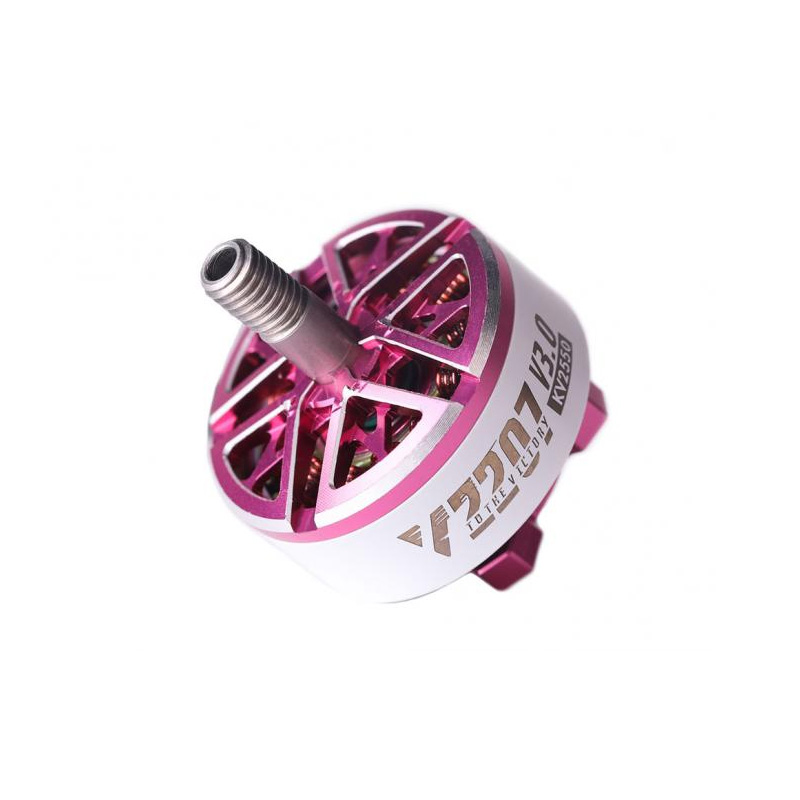

Name: T-Motor Velox V2207 V3.0 2550KV Brushless Motor - 4-5S
Brand: T-Motor
SKU: DRFC-2557
Price: 2089.00 INR
Availability: OutOfStock

₹2,089.00 (Inclusive of all taxes)

Out of Stock

The T-Motor Velox V2207 V3.0 is a 2550KV brushless motor engineered for 5-inch FPV racing and freestyle drones operating on 4S to 5S LiPo batteries. It delivers a high power-to-weight ratio with robust construction for aggressive maneuvers.

Features

2550KV rating optimized for 4S-5S LiPo power on 5-inch propellers.
V2207 V3.0 stator design balances high torque and efficient power delivery.
Curved N52SH neodymium magnets for smoother rotation and enhanced magnetic efficiency.
High-grade bearings and CNC-machined housing for durability under extreme loads.
35.5g weight contributes to a responsive and agile flight characteristic.

Out of stock

Get Notified When Available

Description

The Velox V2207 V3.0 motor from T-Motor represents a refined iteration of a proven 2207 platform, specifically tuned for dynamic freestyle and racing applications. Its electrical design is optimized to handle high current bursts up to 30A, providing consistent torque across the throttle range without excessive heat buildup.

Structural integrity is a key focus, with a one-piece CNC-machined bell and a reinforced stator assembly that resists deformation during high-G impacts. The thermal management system, including an open-bottom design and high-temp windings, ensures reliable performance during extended, aggressive flight sessions.

Key Features

V3.0 Enhanced Stator: Updated laminations and winding pattern for reduced iron losses and improved efficiency.
Curved Magnet Technology: Utilizes curved N52SH magnets for a more sinusoidal magnetic field, reducing cogging and ensuring smoother low-RPM operation.
High-Temp Components: High-temperature solder, enameled copper wire, and high-grade bearings withstand the thermal demands of 5S operation.
Precision Balancing: Dynamically balanced rotor assembly minimizes vibrations for cleaner video feed and reduced frame stress.
Robust Shaft: Hardened steel 5mm shaft with secure retention provides reliable force transfer and impact resistance.
Optimized Airflow: Bell and baseplate design promotes passive cooling during flight.

Applications

5-inch FPV freestyle quadcopters requiring high torque for rapid directional changes and power loops.
5-inch FPV racing drones where a balance of top-end speed and mid-throttle responsiveness is critical.
Lightweight 5-inch cinematic builds that benefit from the motor's smooth low-end control.
Aggressive 4S or 5S-powered builds using propellers like HQProp 5x4.3x3 or Ethix S4.

Technical Specifications

Model	T-Motor Velox V2207 V3.0
KV Rating	2550 KV
Stator Size	22x7mm
Max Current	30A
Rated Voltage	4-5S LiPo (14.8V - 18.5V)
Motor Type	Outrunner Brushless
Shaft Diameter	5mm
Mounting Pattern	16x19mm M3
Weight	35.5g
Connection	3.5mm Bullet (Standard)

Frequently Asked Questions

What is the recommended propeller size for the Velox V2207 2550KV motor?

This motor is optimized for 5-inch propellers on 4S or 5S LiPo batteries. For freestyle, tri-blade props like HQProp 5x4.3x3 or Ethix S4 are excellent. For racing, lighter bi-blade or lower-pitch tri-blade props can maximize top speed. Always monitor motor temperatures when testing new propellers.

Is this motor compatible with 6S batteries?

No, the Velox V2207 V3.0 2550KV is rated for 4S to 5S LiPo operation (14.8V - 18.5V). Applying 6S voltage (22.2V) would exceed the design limits of the windings and magnets, leading to excessive current draw, overheating, and almost certain motor failure.

What is the mounting hole pattern for this motor?

It uses the standard 16x19mm M3 mounting pattern common to most 2207 and 2306 motors. This pattern is compatible with the majority of 5-inch FPV drone frames. Ensure you use the provided or high-quality M3 screws, torqued evenly to avoid stripping the aluminum threads.

How do I ensure smooth operation and long bearing life?

Keep the motor clean from dirt and debris. After flights in wet or dusty conditions, use compressed air to blow out particles. Avoid direct impacts which can dent bearings. Periodically check for axial and radial play in the bell; any significant movement indicates bearing wear and the need for replacement.
