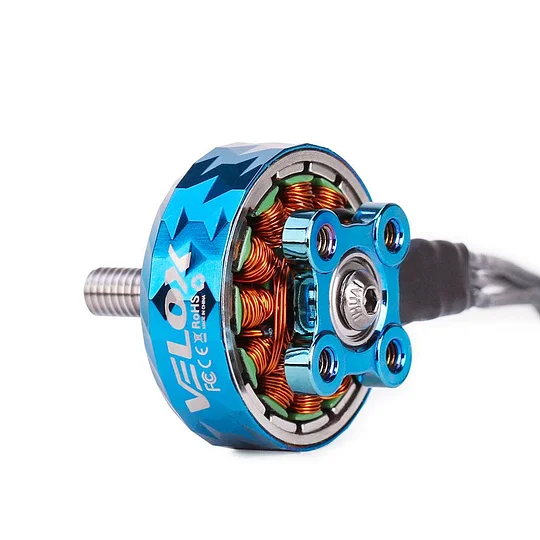

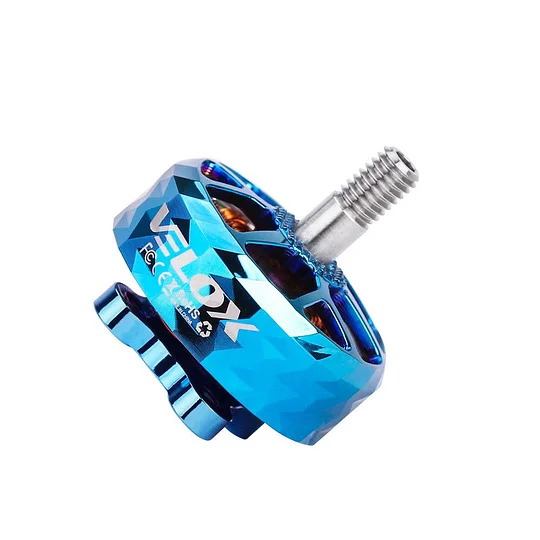

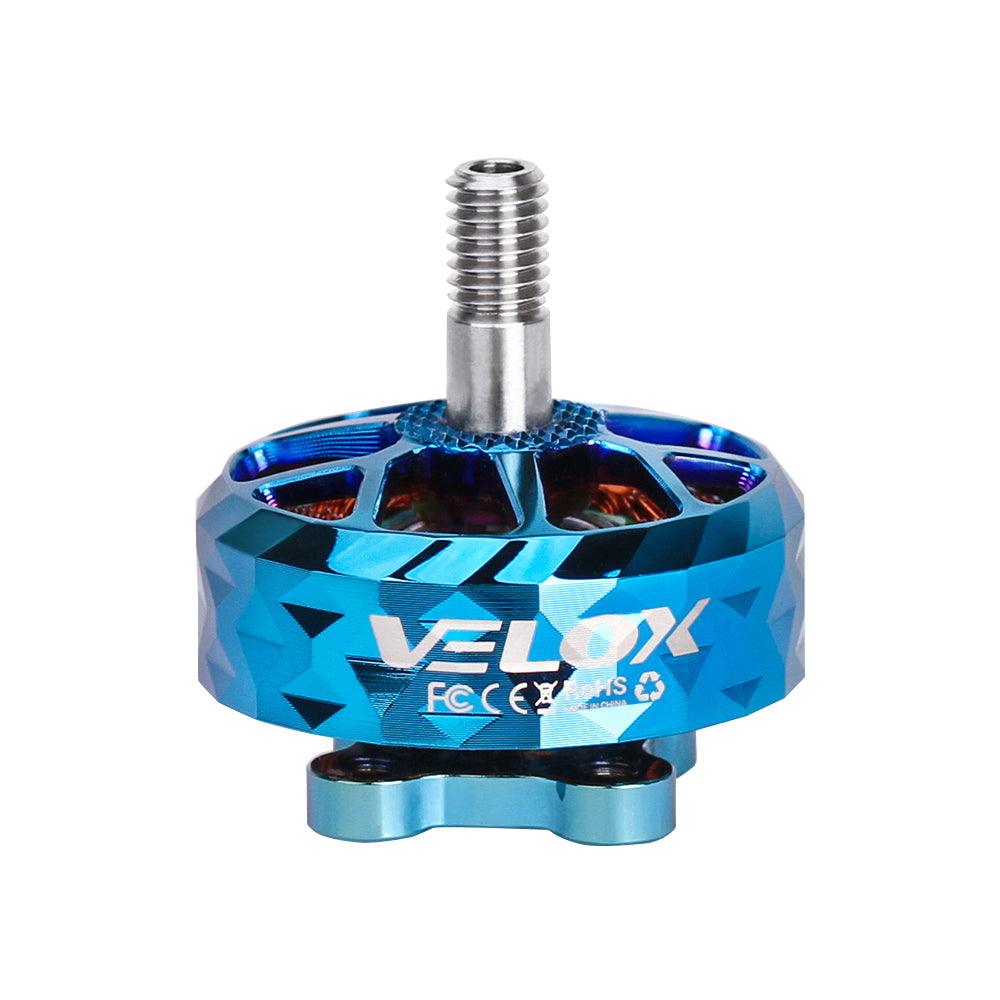

T-Motor VELOX V2 V2207.5 1950KV FPV Motor
The T-Motor VELOX V2 V2207.5 1950KV motor is a high-performance brushless motor engineered for 5-inch FPV racing and freestyle drones. It delivers a balance of power and efficiency for 4S to 6S LiPo battery systems.
Features
- 1950KV rating optimized for 4S-6S LiPo power systems.
- V2207.5 stator size (22×7.5mm) for high torque and responsive throttle control.
- Premium components and 12N14P configuration for smooth, efficient operation.
- Durable construction with a 4mm hardened steel shaft for impact resistance.
- Low internal resistance (74mΩ) for cooler running and extended flight times.
Out of stock
The T-Motor VELOX V2 V2207.5 1950KV motor is engineered for pilots seeking reliable, high-value performance in 5-inch FPV builds. Its 22mm stator diameter and 7.5mm stator height provide a robust magnetic circuit capable of generating significant torque, translating to crisp throttle response and powerful acceleration suitable for aggressive freestyle maneuvers and competitive racing.
Built with a 12N14P (12 stator slots, 14 magnet poles) configuration, the motor offers smooth rotation and efficient power delivery. The low internal resistance of 74mΩ minimizes electrical losses as heat, allowing the motor to run cooler and maintain efficiency throughout demanding flight sessions. The hardened 4mm steel shaft and durable bell construction ensure the motor can withstand the impacts common in FPV flying.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 6 × 6 × 3 cm |
