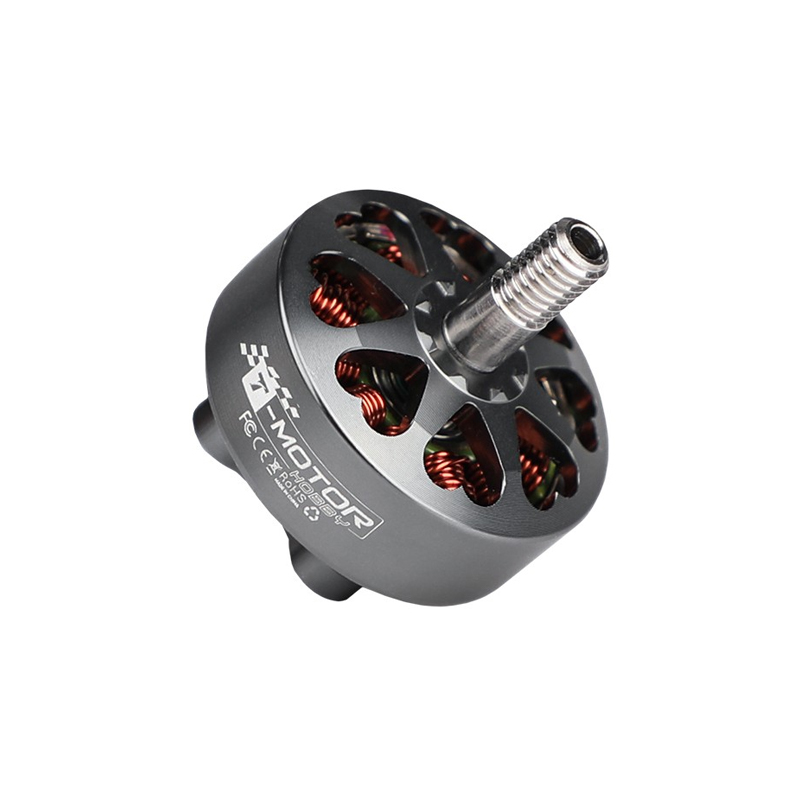

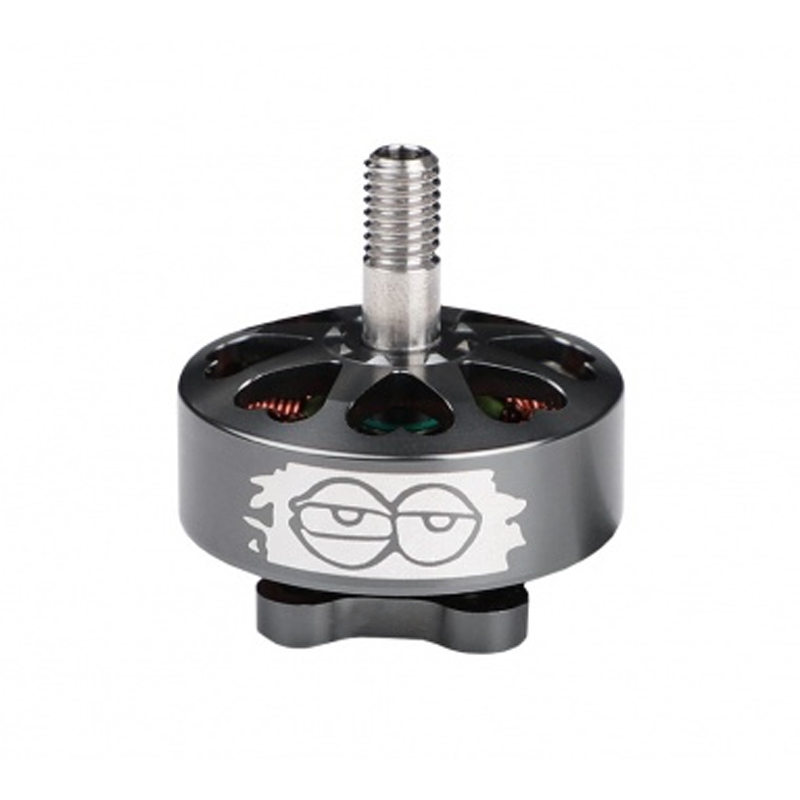

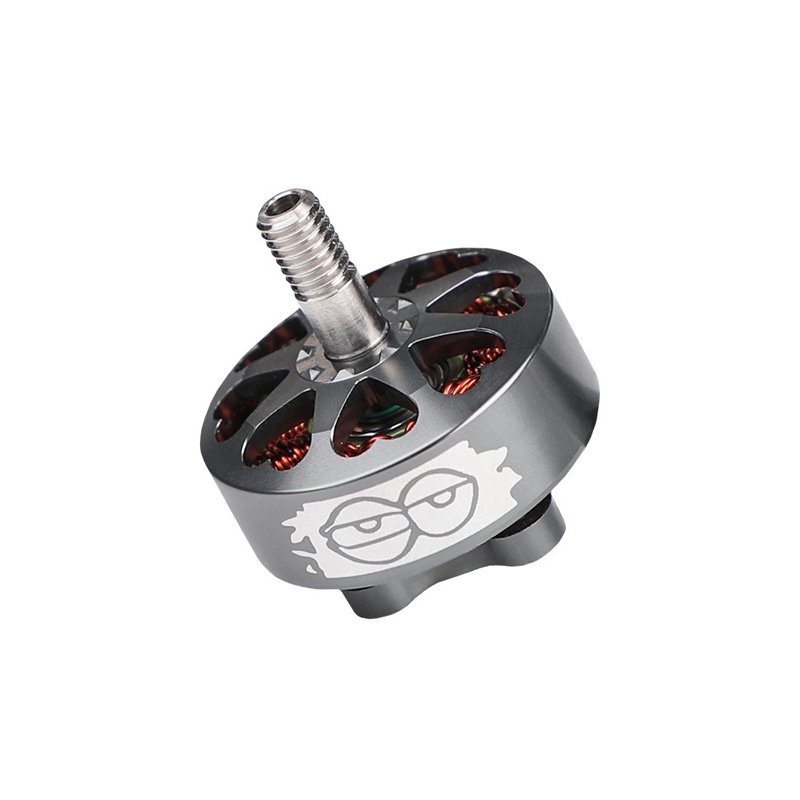

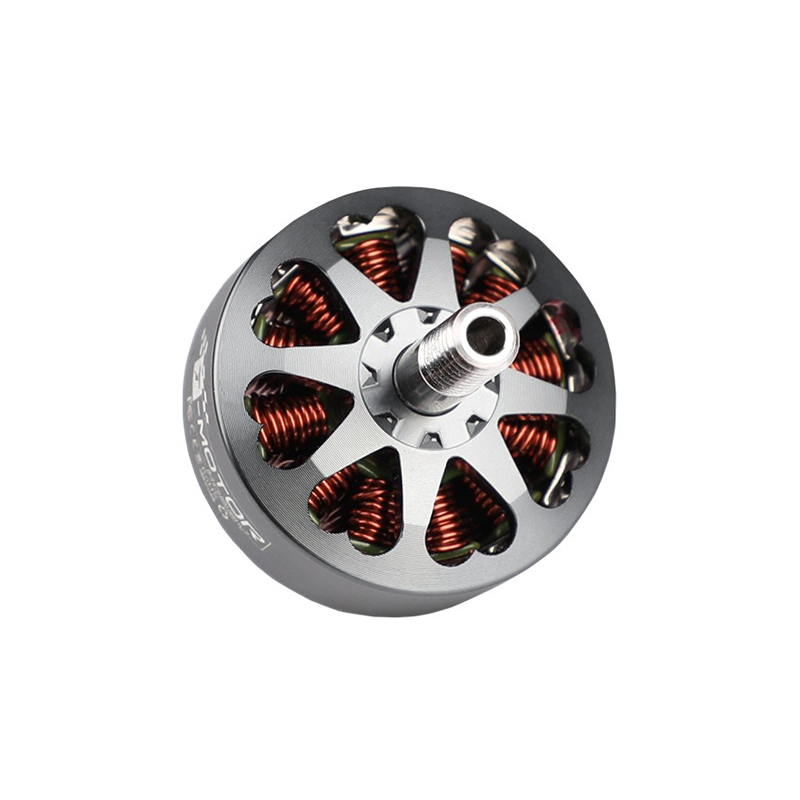

T-Motor SlattFPV 2306.3 FPV Motor - 2500KV - Grey

Name: T-Motor SlattFPV 2306.3 FPV Motor - 2500KV - Grey
Brand: T-Motor
SKU: DRFC-2548
Price: 3989.00 INR
Availability: OutOfStock

₹3,989.00 (Inclusive of all taxes)

Out of Stock

The T-Motor SlattFPV 2306.3 is a 2500KV brushless motor engineered for high-performance 4S FPV freestyle and racing drones. Its Unibell design integrates the bell and shaft for enhanced durability and precise control, delivering 629W peak power with a lightweight 33.8g construction.

Features

2500KV rating optimized for 4S LiPo battery setups.
Unibell (integrated bell/shaft) design for superior durability and reduced weight.
High peak power output of 629.3W for aggressive freestyle maneuvers.
Lightweight construction at 33.8 grams with a robust 4mm steel shaft.
12N14P stator configuration for smooth throttle response and high efficiency.

Out of stock

Get Notified When Available

Description

Co-developed with SlattFPV, the 2306.3 motor is tailored for pilots demanding fast response and reliable power in freestyle and bando environments. The 2306 stator size provides a balanced torque-to-weight ratio, enabling precise control during complex acrobatic sequences.

Its thermal management and electrical design ensure stable performance under high loads, with an idle current of 1.45A at 10V. The motor’s compact dimensions (Φ28.6 x 30.3mm) and standard mounting pattern allow for easy integration into a wide range of 5-inch and 6-inch FPV drone frames.

Key Features

Unibell construction enhances structural integrity and reduces potential points of failure.
Optimized 12N14P magnetic configuration for smooth operation and high efficiency.
High-temp windings and bearings support sustained peak currents up to 38.7A.
Precision-balanced bell and rotor assembly for minimal vibration.
20AWG 150mm silicone lead wires for flexible and reliable solder connections.
Grey anodized finish for corrosion resistance and a professional aesthetic.

Applications

5-inch FPV freestyle drones for bando and park flying.
4S-powered FPV racing quads requiring high throttle response.
Lightweight 6-inch long-range or cinewhoop builds.
Acro and trick-focused drones where precise motor control is critical.

Technical Specifications

Model	2306.3
KV Rating	2500 KV
Stator Size	23mm x 6.3mm
Configuration	12N14P
Max Voltage	4S LiPo
Shaft Diameter	4 mm
Peak Power	629.3 W
Peak Current	38.7 A (10s)
Idle Current (@10V)	1.45 A
Motor Diameter	Φ28.6 mm
Motor Height	30.3 mm
Weight	33.8 g
Lead Wire	20AWG x 150mm
Color	Grey

Frequently Asked Questions

What battery voltage is this T-Motor 2306.3 motor designed for?

This motor is specifically optimized for 4S LiPo battery setups (nominal 14.8V, max 16.8V). Its 2500KV rating and electrical design provide the ideal torque and RPM characteristics for high-performance flight on this voltage range.

What is the benefit of the Unibell design?

The Unibell design integrates the motor bell and shaft into a single, machined component. This eliminates a traditional press-fit joint, significantly increasing structural rigidity, improving balance, and reducing the risk of shaft slippage or bell separation during high-stress maneuvers.

What size propellers are recommended for this 2306.3 2500KV motor?

For 4S operation, common propeller pairings include 5.1x3.1x3 or 5x3x3 triblade props for freestyle, and 5x4.3x3 or similar for more aggressive racing setups. Always ensure your Electronic Speed Controllers (ESCs) are rated for the expected current draw with your chosen prop.

What is the motor's mounting hole pattern?

The T-Motor SlattFPV 2306.3 uses the standard 16x19mm M3 mounting hole pattern, which is compatible with the vast majority of 5-inch and 6-inch FPV drone frames designed for 22xx and 23xx series motors.
