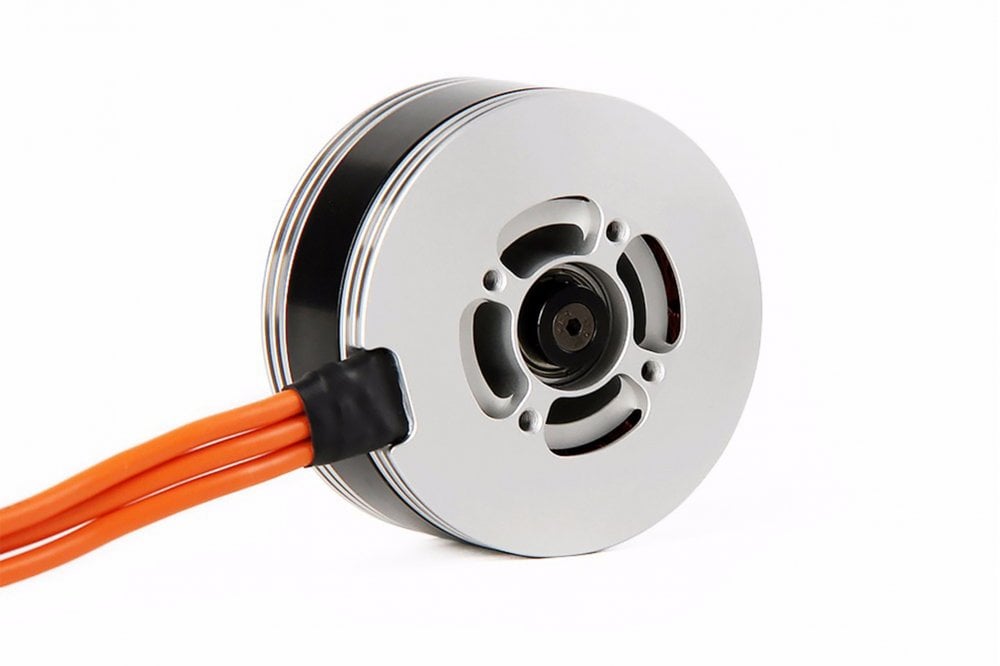

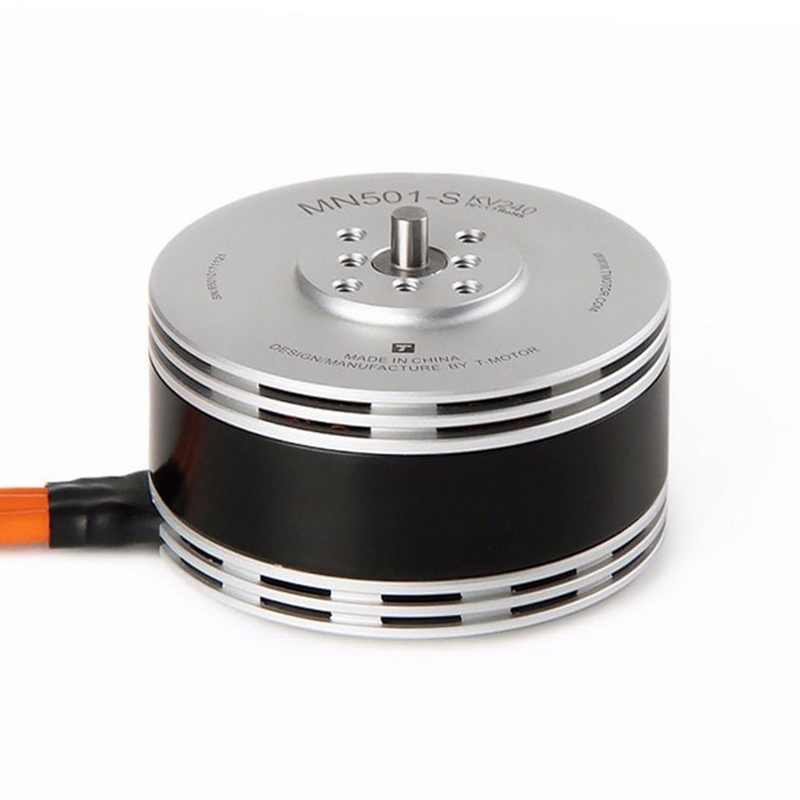

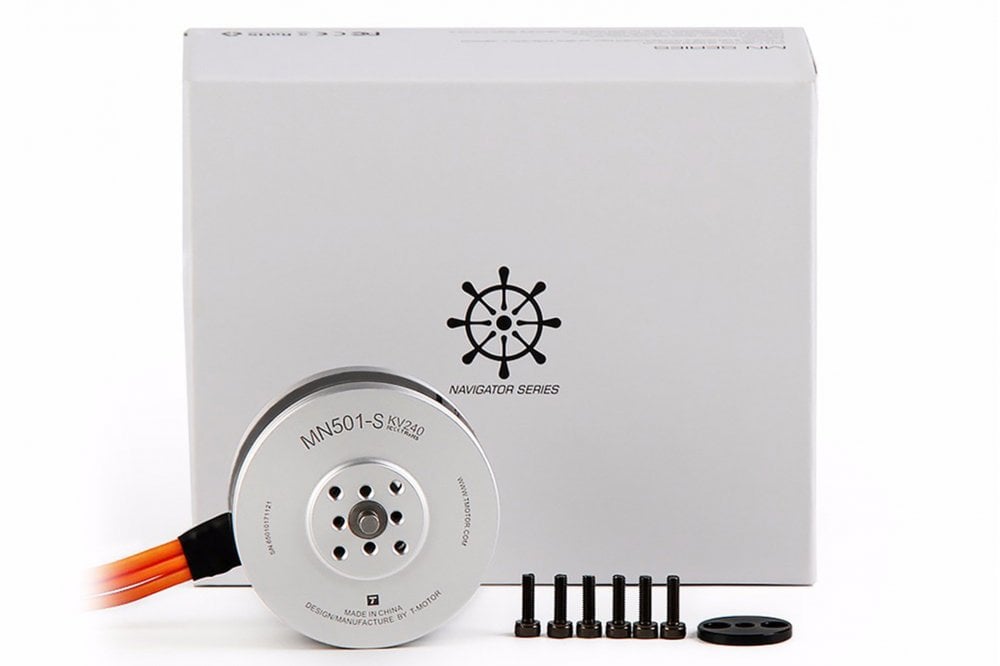

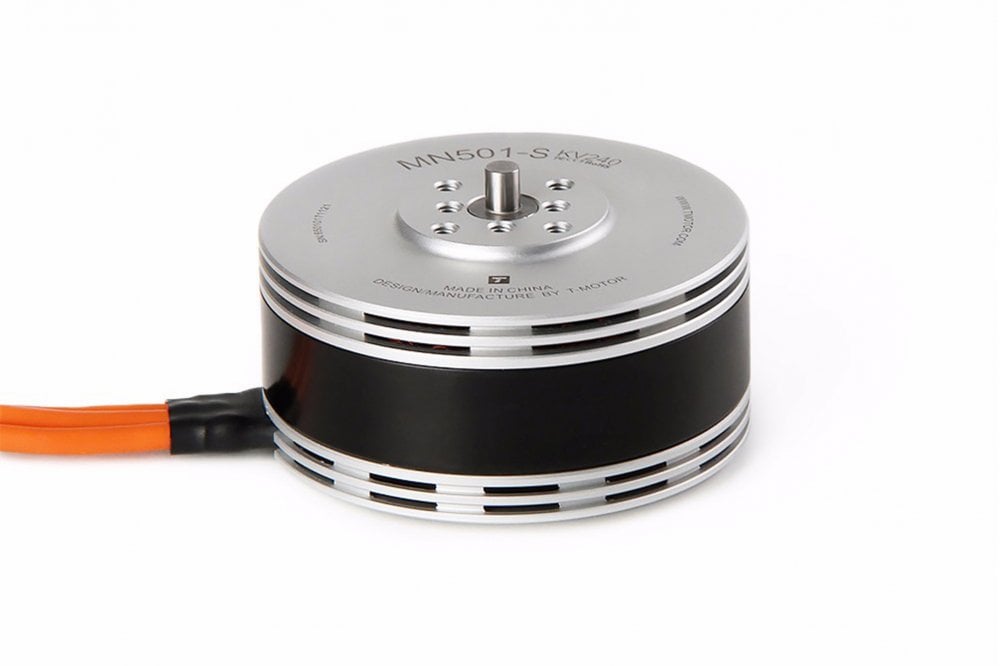

T-Motor Navigator Waterproof MN501-S 300KV - 6-8S Heavy-Lift Drone Motor
The T-Motor Navigator MN501-S is a 300KV outrunner brushless motor engineered for heavy-lift and agricultural drone applications, featuring a waterproof and dustproof IP-rated construction for reliable operation in harsh environments and compatibility with 6S to 8S LiPo battery systems.
Features
- 300KV rating optimized for high-torque, low-RPM operation on 6S-8S LiPo systems.
- Waterproof and dustproof (IP-rated) construction for all-weather and agricultural durability.
- High-efficiency design with a maximum power rating of 916W for demanding payloads.
- Features a 6mm inner / 4mm outer shaft diameter for robust propeller mounting.
- Extended operational temperature range from -40°C to 85°C.
Out of stock
The T-Motor Navigator MN501-S 300KV motor is built for professional-grade UAVs requiring exceptional durability and sustained high-thrust performance. Its outrunner design provides excellent torque and cooling, while the sealed housing protects internal components from moisture, dust, and corrosive elements common in agricultural spraying, mapping, and industrial inspection missions.
Engineered with high-quality bearings and windings, the motor maintains a low idle current of 1.1A and delivers a maximum thrust of 5277 grams. Its electrical specifications, including an internal resistance of 63 milliohms, are optimized for efficient power conversion and minimal thermal buildup during extended flight times under heavy load.
Additional Information
| Weight | 0.1 kg |
|---|---|
| Dimensions | 8 × 6 × 4 cm |
