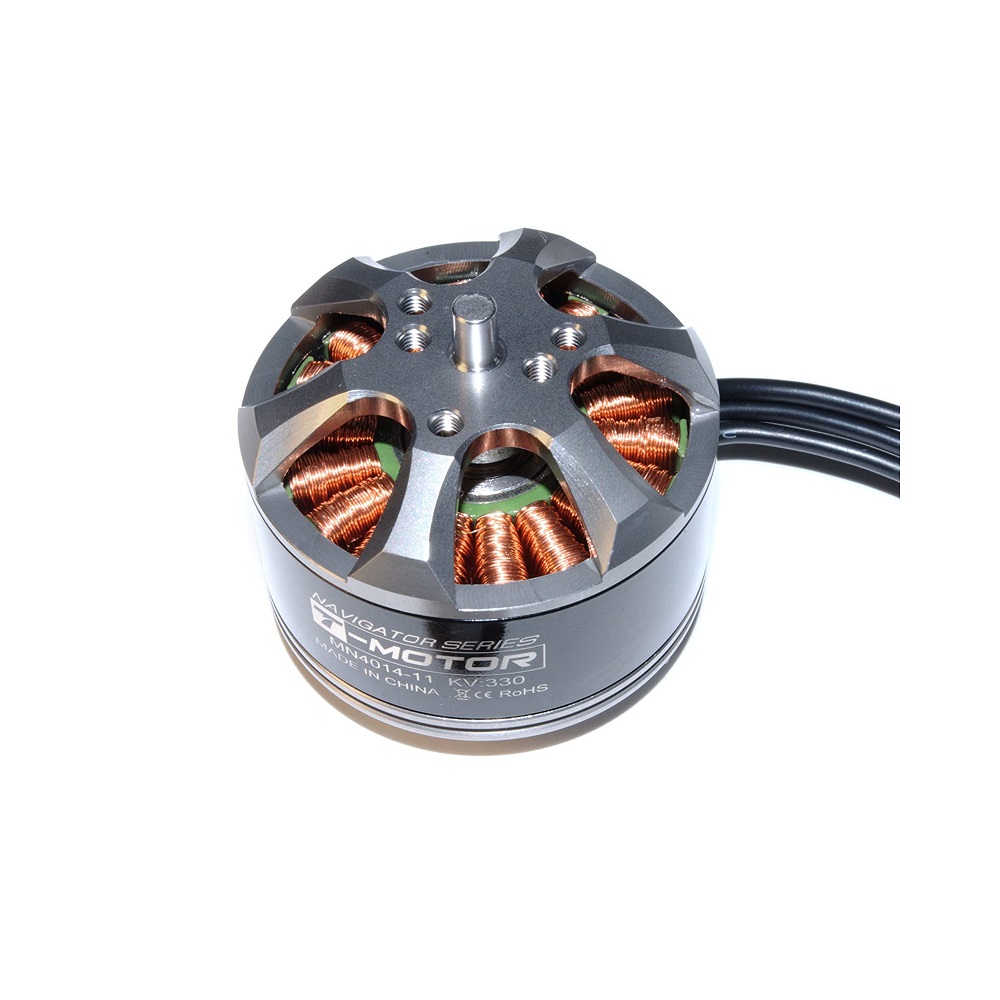

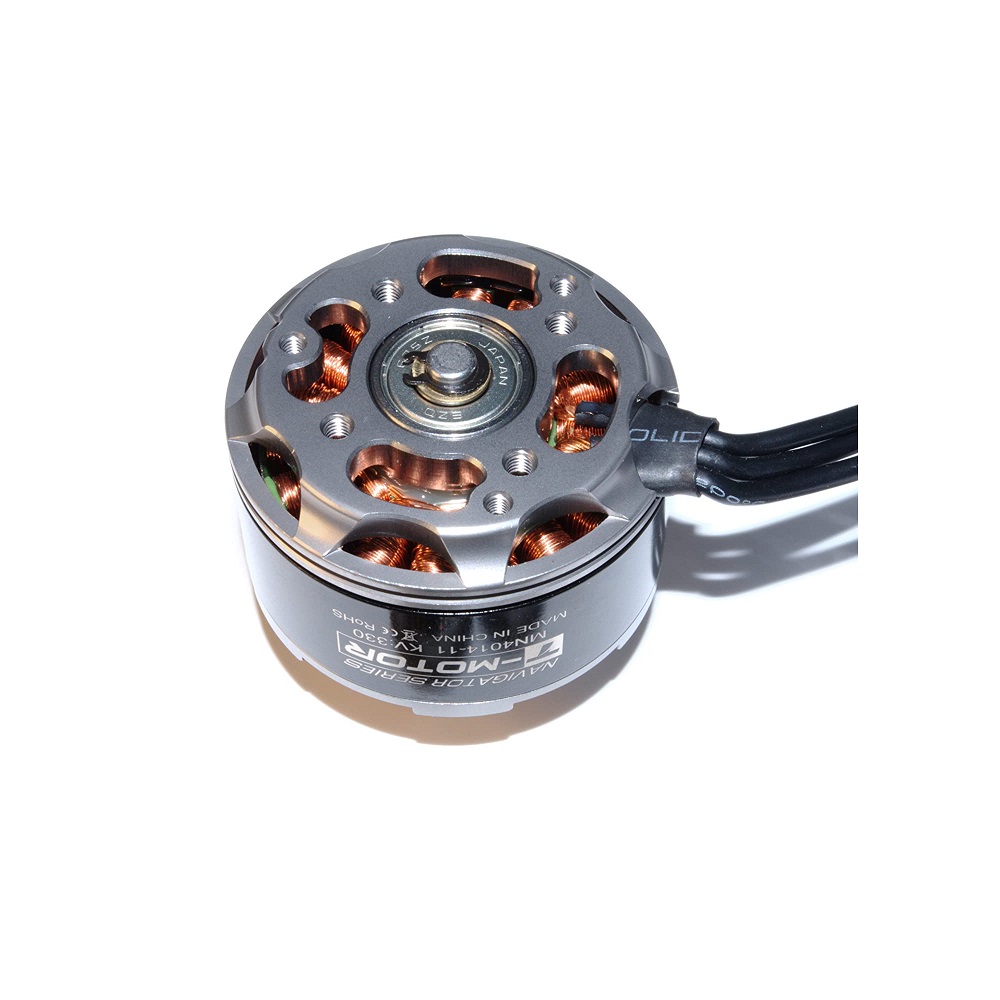

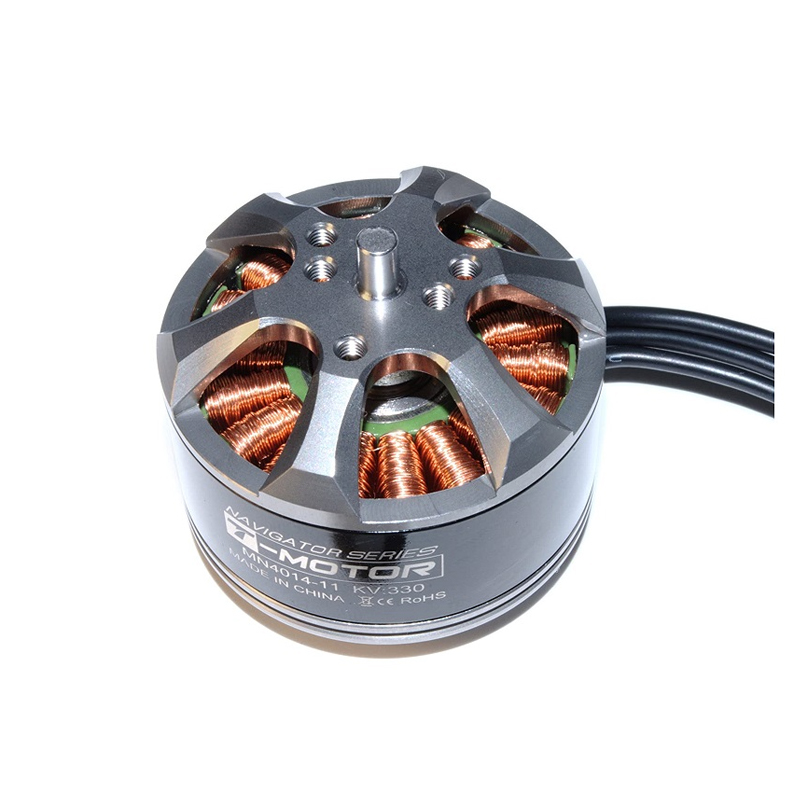

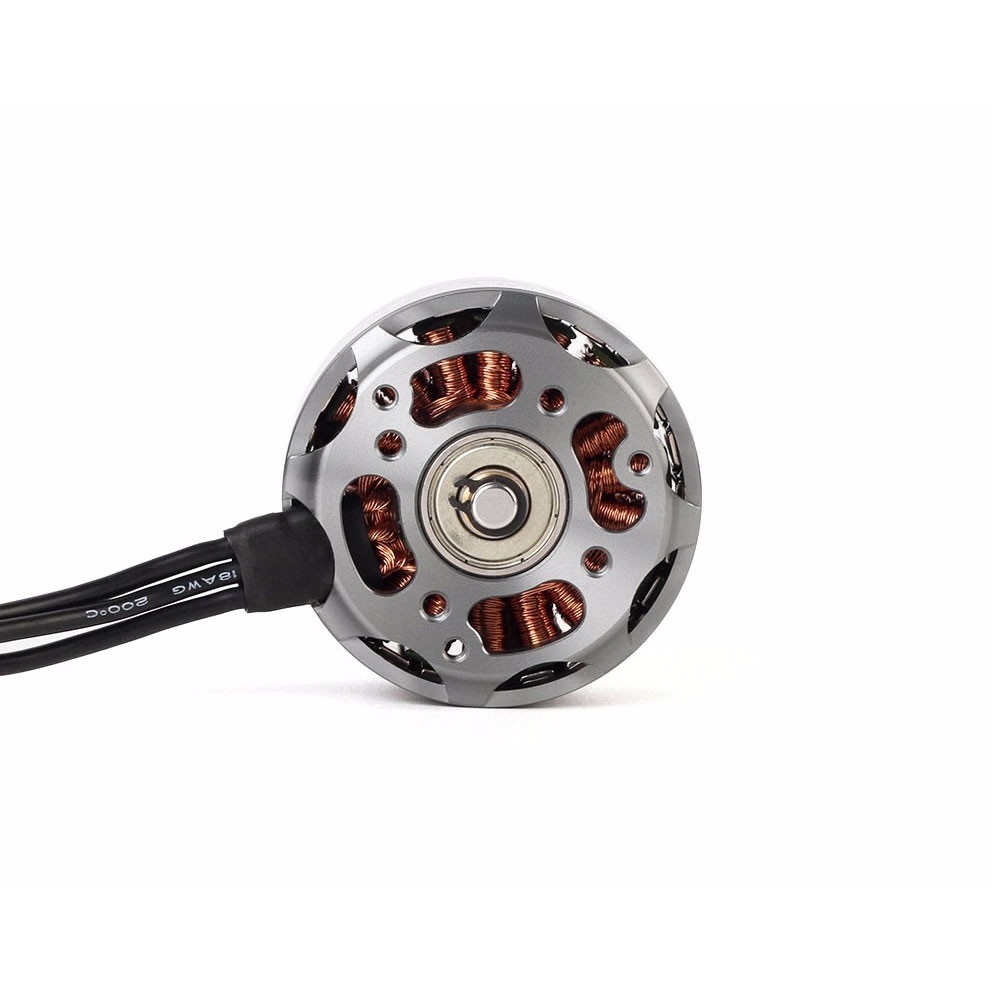

T-Motor Navigator MN4014 330KV Brushless Motor
The T-Motor Navigator MN4014 is a 330KV brushless motor engineered for heavy-lift and industrial UAV platforms, offering high torque and smooth operation on 4S to 8S LiPo battery systems for stable aerial photography and mapping applications.
Features
- 330KV rating optimized for 4S to 8S LiPo operation
- 40mm stator diameter and 14mm stator height for high torque output
- 4mm hardened steel shaft with oversized bearings for smooth, low-speed running
- Rated for 25A continuous current and up to 750W max power

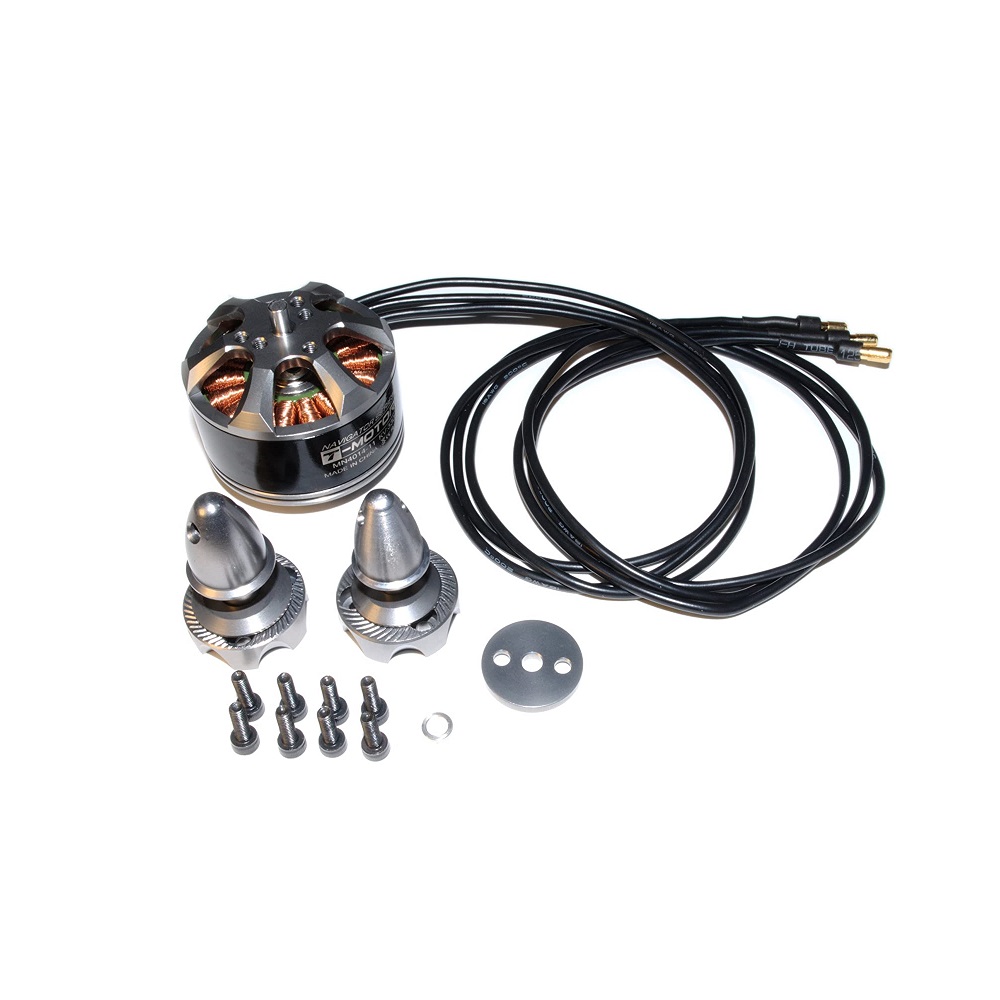

- Includes 600mm silicone-insulated motor cables for flexible installation
Out of stock
The T-Motor Navigator MN4014 330KV motor is built with an 18N24P magnetic configuration, delivering consistent torque and precise RPM control essential for demanding multirotor applications. Its large stator volume and optimized magnetic circuit ensure efficient power conversion and minimal heat generation during prolonged flight sessions.
Engineered for reliability, the motor incorporates precision-grade oversized ball bearings that significantly reduce radial play and vibration, contributing to stable video footage and extended operational lifespan. The robust construction and flexible mounting hole pattern allow for secure integration into a variety of heavy-lift and enterprise UAV frames.
Additional Information
| Weight | 0.312 kg |
|---|---|
| Dimensions | 8 × 8 × 8 cm |
