T-Motor MF1604 Polymer Folding Propeller - Black
The T-Motor MF1604 is a 16.4-inch polymer folding propeller designed for professional-grade heavy-lift and mapping drones, offering a 5.9-inch pitch and compatibility with high-torque motor systems.
Features
- 16.4-inch diameter with a 5.9-inch pitch for high-efficiency lift.
- Constructed from Polymer+CF composite for a high strength-to-weight ratio.

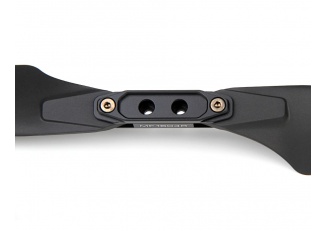

- Folding hub design minimizes storage footprint and protects blades in transit.
- Rated for ambient temperatures from -40°C to 65°C for reliable operation.
- Delivers up to 4kg of maximum thrust per propeller in suitable configurations.
Out of stock
The T-Motor MF1604 folding propeller is engineered for demanding UAV applications requiring a balance of durability, efficiency, and convenience. Its Polymer+CF (Carbon Fiber reinforced polymer) construction provides significant strength and fatigue resistance while keeping weight minimal, contributing to longer flight times and reduced motor load.
The 16.4-inch diameter and 5.9-inch pitch are optimized for generating substantial thrust on heavy-lift platforms, such as aerial photography rigs, agricultural spray drones, and mapping UAVs. The folding mechanism allows for a compact profile when not in use, simplifying transportation and reducing the risk of blade damage. It is critical to note that this propeller is not validated for coaxial (stacked motor) configurations and should only be used on standard single-motor-per-arm setups.
Additional Information
| Weight | 0.02 kg |
|---|---|
| Dimensions | 5 × 22 × 1 cm |
