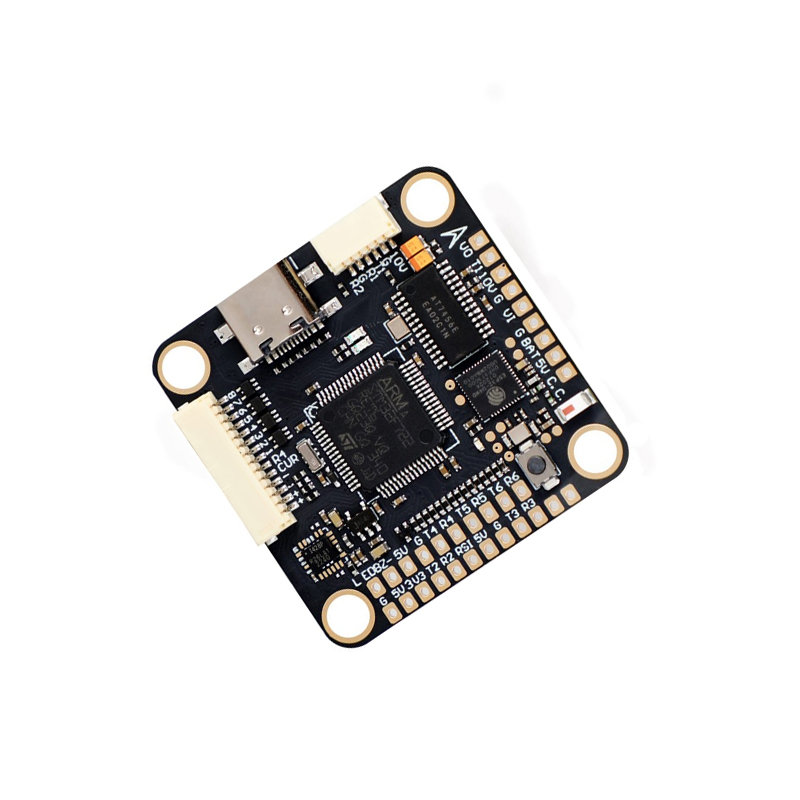

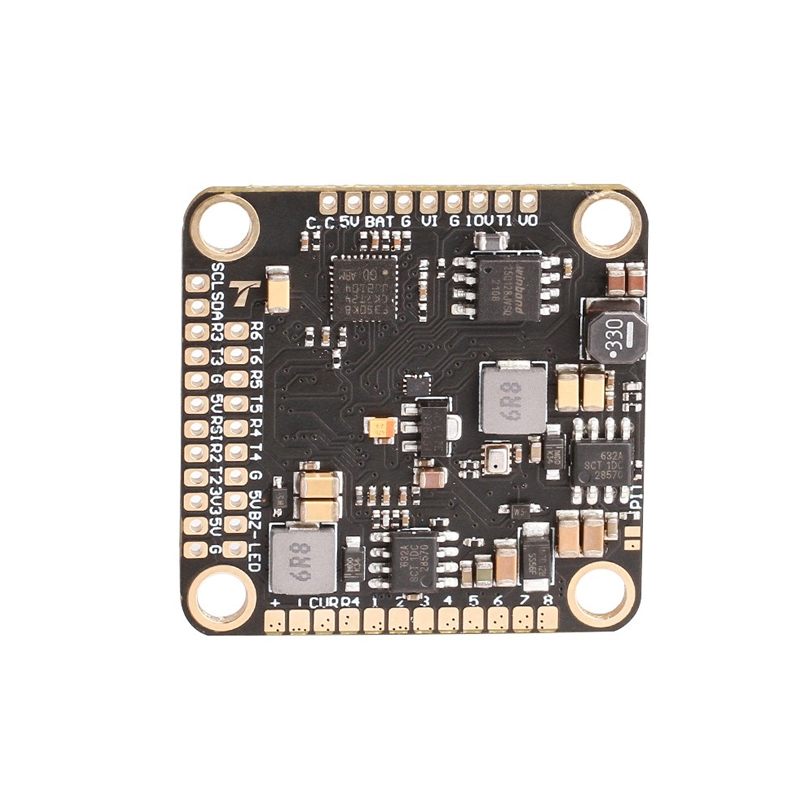

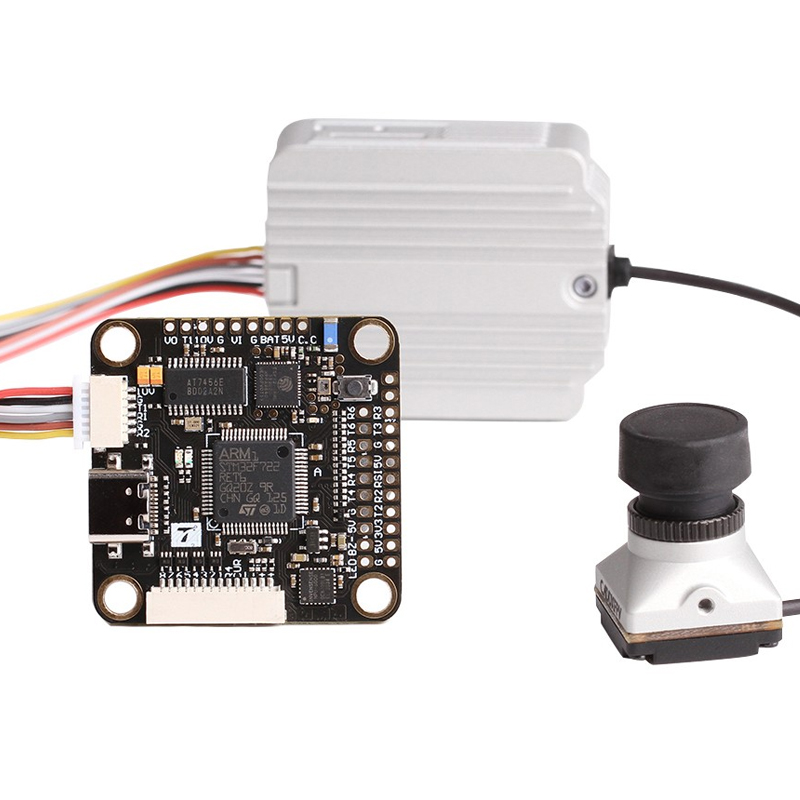

T-Motor F7 Pro Full Function Flight Controller with WiFi & Bluetooth - 30.5x30.5mm
The T-Motor F7 Pro is a full-featured 30.5×30.5mm flight controller built around the STM32F722 MCU and ICM42688 gyro, supporting 3-8S LiPo input and offering integrated WiFi and Bluetooth for wireless Betaflight/INAV configuration via the SpeedyBee app.
Features
- STM32F722 RET6 MCU & ICM42688-P IMU with BMP280 barometer for high-performance flight control.
- Integrated dual-band WiFi and Bluetooth for wireless tuning, firmware flashing, and blackbox analysis.
- Wide 3-8S LiPo input voltage range with dual BEC outputs (10V/2A & 5V/3A).
- Standard 30.5×30.5mm M3 mounting pattern, compatible with DJI digital FPV systems.
- Supports Betaflight and INAV firmware with 8 PWM outputs and built-in AT7456 OSD.
Out of stock
The T-Motor F7 Pro Flight Controller is engineered for advanced FPV cinematic and freestyle drones requiring robust processing and extensive connectivity. Its core is the STM32F722 microcontroller, paired with an ICM42688 inertial measurement unit and BMP280 barometer, delivering precise sensor fusion for stable flight in dynamic maneuvers. The board’s integrated WiFi and Bluetooth modules eliminate the need for physical USB connections, enabling comprehensive wireless setup, real-time tuning, and blackbox log retrieval directly through the SpeedyBee mobile application.
Designed for high-voltage applications, the F7 Pro accepts a broad 3-8S LiPo input, making it suitable for both lightweight 5-inch racers and larger 7-inch long-range platforms. Its dual switching BECs provide clean 10V and 5V power rails for peripherals like digital VTX systems and servos. The compact 37x37mm footprint and 30.5×30.5mm M3 mounting hole pattern ensure direct compatibility with a wide range of popular FPV frames and 4-in-1 ESC stacks.
Additional Information
| Weight | 0.0085 kg |
|---|---|
| Dimensions | 3.7 × 3.7 cm |
