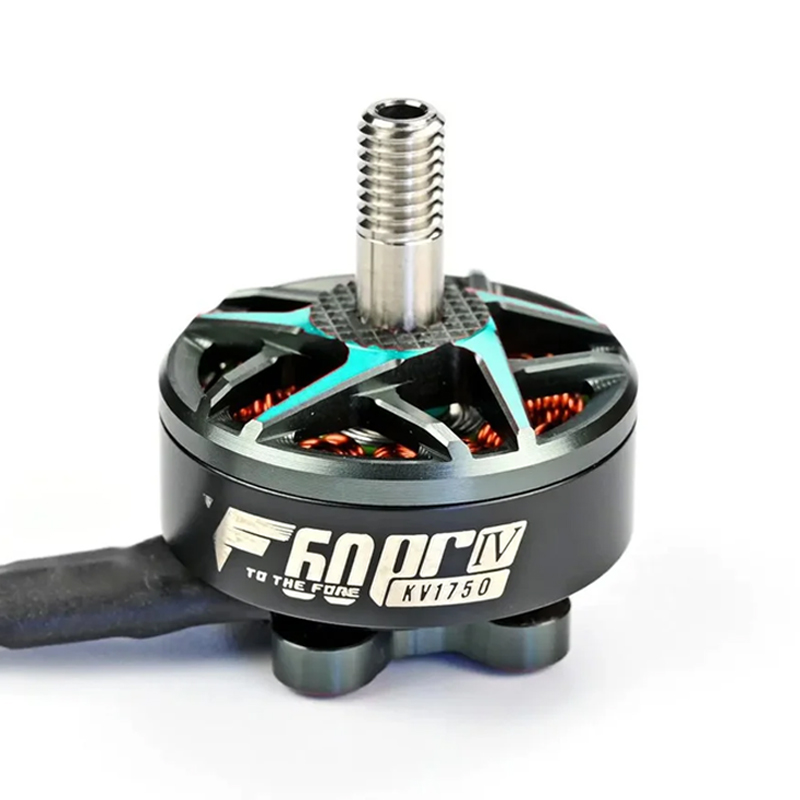

T-Motor F60PRO IV V2.0 KV1750 Drone Motor
T-Motor F60PRO IV V2.0 KV1750 Drone Motor - Image 2
SKU: DRFC-2608
📋 GST Invoice Available

T-Motor F60PRO IV V2.0 KV1750 Drone Motor

₹2,629.00 (Inclusive of all taxes)
Out of Stock

The T-Motor F60PRO IV V2.0 is a 2207 brushless motor rated at 1750KV, engineered for 4-6S LiPo FPV racing and freestyle drones. It features a durable 12mm steel shaft and a lightweight design for improved throttle response and flight endurance.

Features

  • 2207 stator size with 1750KV rating for 4-6S LiPo compatibility
  • 12mm steel shaft with interlaced rib design for enhanced durability
  • 9% weight reduction over previous generation for faster throttle response
  • Optimized mounting holes and custom prop nut for secure installation
  • 12N14P magnetic framework for smooth, efficient power delivery

Out of stock

Description

The T-Motor F60PRO IV V2.0 1750KV motor is engineered for pilots seeking a balance of smooth power, efficiency, and reliability for long-range cinematic or endurance-focused FPV builds. Its 1750KV rating, paired with 4-6S LiPo compatibility, prioritizes cooler operation and extended flight times, making it suitable for carrying heavier payloads like action cameras or LiDAR sensors.

Constructed with a robust 12mm steel shaft and an interlaced rib structure, the motor is built to withstand impacts and maintain performance. A 9% reduction in weight compared to the F60 Pro III generation translates to quicker acceleration and more agile handling through complex flight maneuvers, from tight corners to sustained high-speed passes.

Key Features

  • High-Efficiency Stator Design: 2207 stator configuration with 12N14P magnetic layout delivers consistent torque and smooth rotation across the throttle range.
  • Reinforced Mechanical Construction: The 12mm diameter steel shaft and internal ribbing significantly increase resistance to bending and impact damage from crashes.
  • Optimized Thermal Management: Motor design and KV rating promote efficient power conversion, resulting in lower operational temperatures during prolonged flight sessions.
  • Precision Balanced Bell: Factory-balanced rotor minimizes vibrations, leading to cleaner video footage and reduced wear on flight controller gyros.
  • Wide Frame Compatibility: Standard M3 mounting pattern and optimized hole spacing ensure a solid, secure fit on a vast majority of 5-inch and 6-inch FPV drone frames.
  • Thread Protection: Included custom prop nut helps safeguard the shaft threads from damage during propeller installation and removal.

Applications

  • 5-inch and 6-inch long-range FPV drones for cinematic footage and exploration.
  • Endurance-focused FPV racing quads where efficient power delivery and cooler operation are critical.
  • Freestyle drones requiring a robust motor capable of withstanding high-G maneuvers and occasional impacts.
  • Heavy-lift builds carrying action cameras (GoPro, Insta360) or lightweight mapping payloads.

Technical Specifications

Motor ModelF60 Pro IV V2.0
Motor TypeBrushless Outrunner
Stator Size2207 (22mm diameter, 7mm height)
KV Rating1750 KV (RPM/Volt)
Voltage Range4S to 6S LiPo
Shaft Diameter4mm
Shaft Length12mm
Magnetic Framework12N14P
Max Continuous Current36A
Max Continuous Power819W
No-Load Current1.2A (1200mA)
Motor Length32.7 mm
Motor Weight35.8 g

Frequently Asked Questions

What is the recommended propeller size for the F60PRO IV 1750KV motor on a 6S setup?

For optimal performance on 6S LiPo batteries, pair this 1750KV motor with propellers in the 5.1-inch to 5.5-inch range, such as HQProp 5.1x4.1x3 or similar tri-blade props. Using larger props may increase thrust but also draw more current, so ensure your Electronic Speed Controllers (ESCs) are rated for at least 45A continuous current per motor.

Is the 4mm shaft compatible with standard propeller hubs and collet adapters?

Yes, the 4mm shaft diameter is an industry-standard size for 5-inch and larger FPV drones. It is fully compatible with the majority of propeller hubs designed for M5 threaded shafts and works with standard 4mm-to-M5 collet adapters or the included T-Motor custom prop nut for secure mounting.

How does the 9% weight reduction improve flight performance compared to the F60 Pro III?

The reduced rotating mass of the F60PRO IV V2.0 bell and stator allows for faster changes in rotational speed. This translates directly to improved throttle response, quicker acceleration out of turns, and more precise control during rapid throttle punches and dives, enhancing overall agility and handling.

Package Includes

  • 1 x T-Motor F60PRO IV V2.0 KV1750 Brushless Motor
  • 1 x Custom Prop Nut

Additional Information

Weight 0.037 kg
Dimensions 4 × 4 × 2 cm
