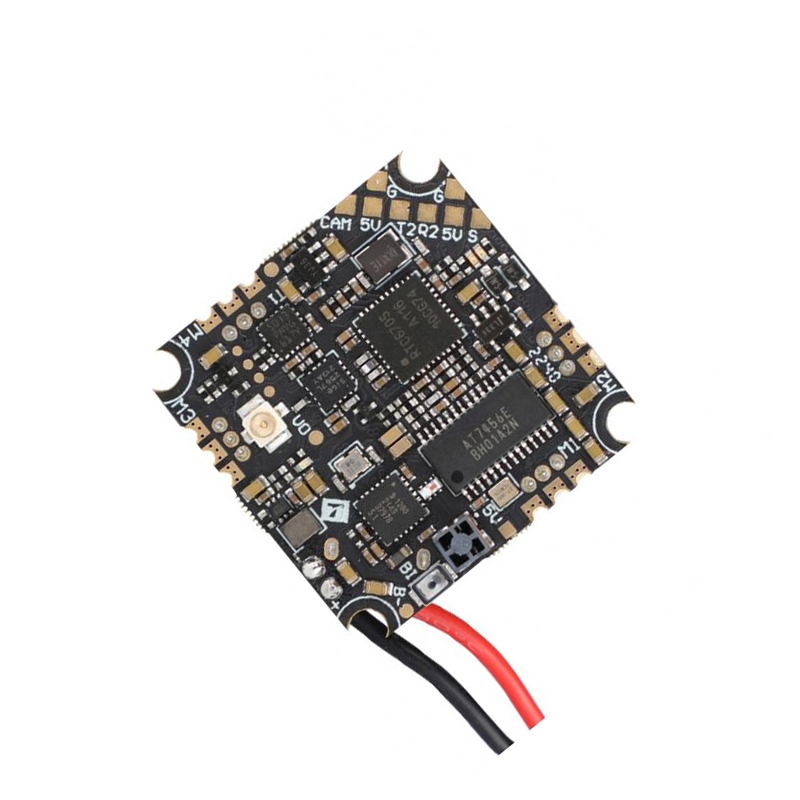

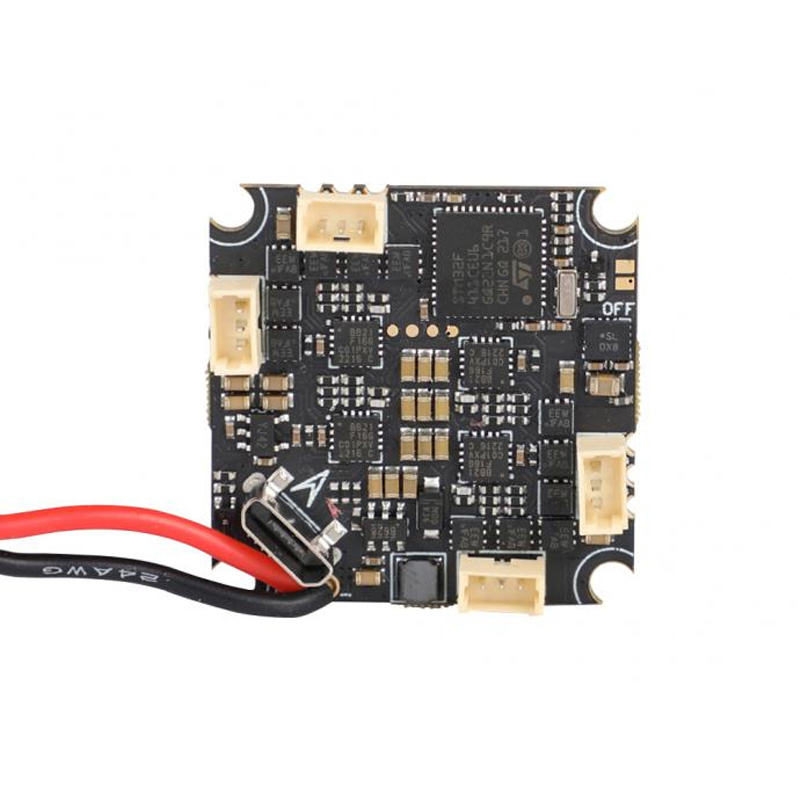

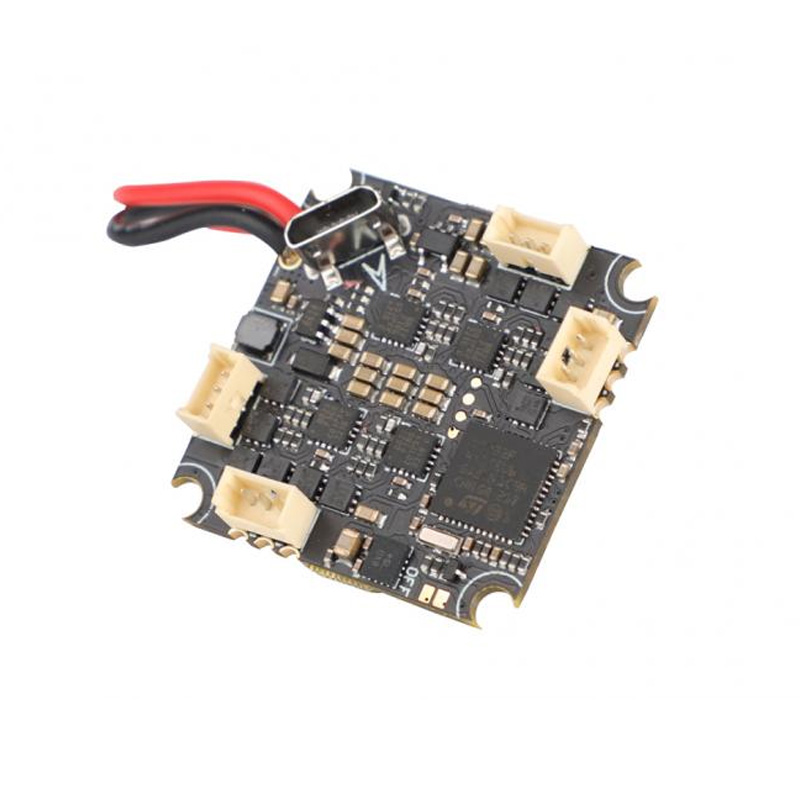

T-Motor F411 AIO 1S 6A Stack 6A
The T-Motor F411 AIO 1S 6A Stack is an all-in-one flight controller and 4-in-1 ESC designed for ultra-lightweight 1S drone builds. It integrates an F411 processor, a 6A 1S ESC, an SPI-based ELRS 2.4GHz receiver, and a 50mW analog VTX, offering a plug-and-play solution for tinywhoop and toothpick quadcopters.
Features
- Integrated 1S 6A 4-in-1 ESC with Bluejay firmware for bidirectional DShot and high-frequency PWM.
- Built-in SPI-based ELRS 2.4GHz receiver for long-range, low-latency control.
- Onboard 50mW analog video transmitter (VTX) with UFL antenna connector and OSD.
- Plug-and-play motor connectors compatible with M0802 and M0803 series motors.
- Ultra-lightweight F411-based flight controller stack weighing only 6.7 grams.
Out of stock
The T-Motor F411 AIO Stack consolidates core flight electronics into a single, compact unit optimized for 1S LiPo-powered micro drones. Its integrated design eliminates the need for separate ESC, receiver, and VTX wiring, drastically simplifying the build process and reducing overall weight. The stack is pre-flashed with Bluejay ESC firmware, enabling advanced features like bidirectional DShot for precise motor control and RPM filtering.
Engineered for reliability in small form factors, the board provides a robust 6A continuous current per motor channel, sufficient for high-performance 0802 and 0803 brushless motors. The inclusion of an SPI ELRS receiver and an analog VTX makes it a complete flight system, requiring only a camera and antenna to be fully operational for FPV flying.
Additional Information
| Weight | 0.0067 kg |
|---|---|
| Dimensions | 7 × 7 × 3 cm |
