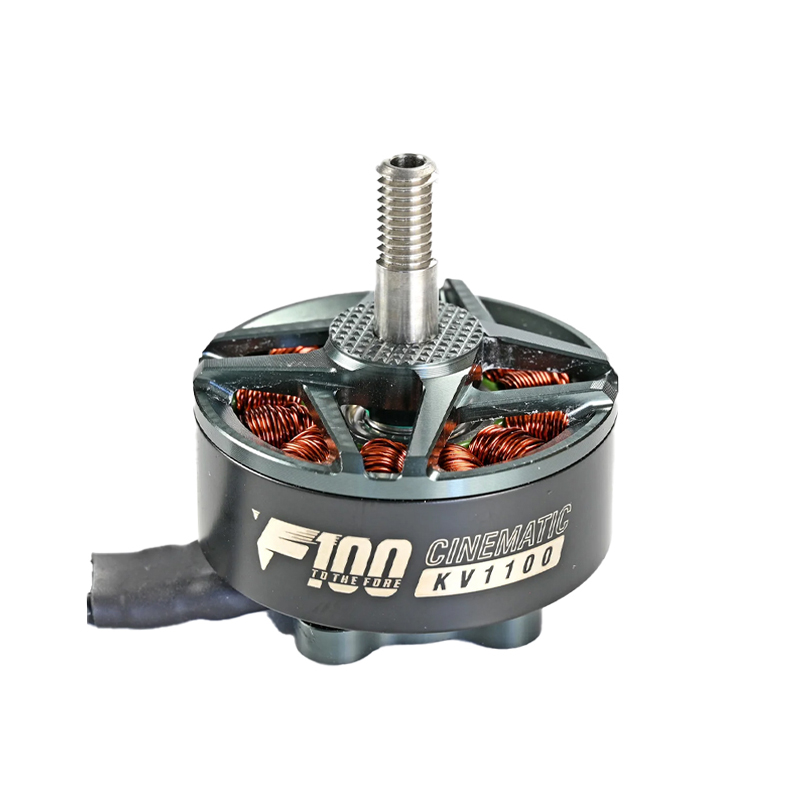

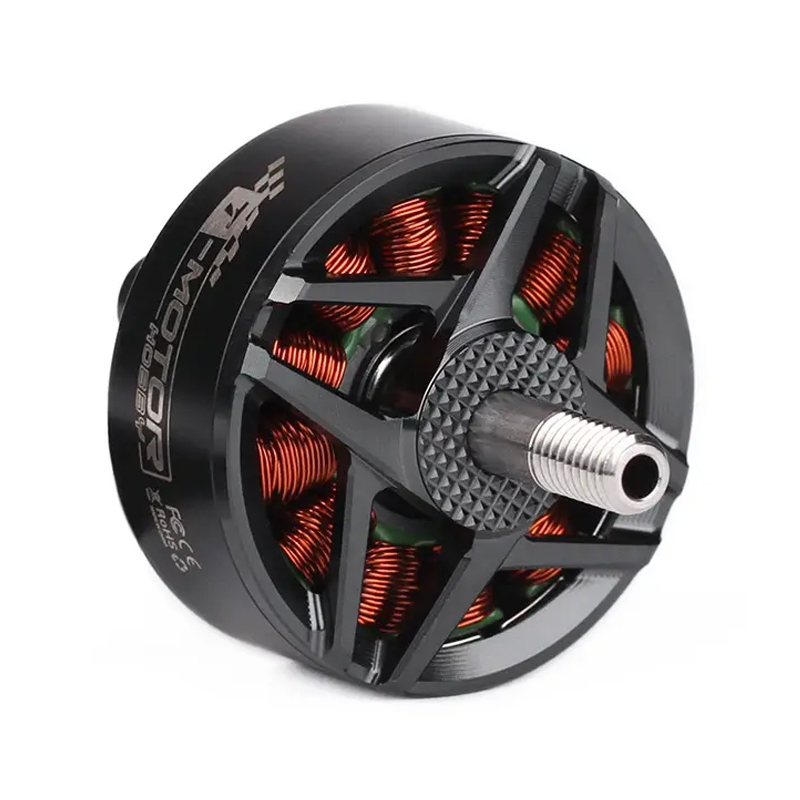

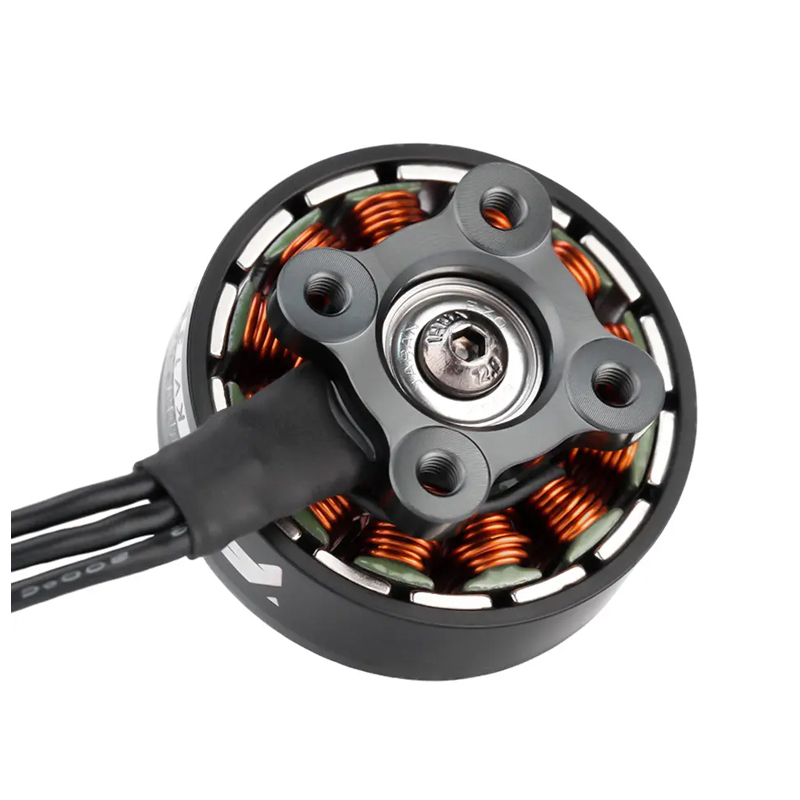

T-Motor F100 KV1100 Drone Motor
The T-Motor F100 KV1100 is a high-performance brushless motor engineered for 7-8″ cinematic and long-range drone platforms, offering 2467g of maximum thrust per motor for stable flight with professional camera payloads on 5S-6S LiPo power systems.
Features
- KV1100 rating optimized for 5S-6S LiPo batteries on 7-8″ propellers.
- Delivers up to 2467g of maximum thrust per motor for heavy-lift capability.
- Features an upgraded Unibell design for enhanced structural durability and heat dissipation.
- Hand-wound copper windings ensure high efficiency and low internal resistance (61mΩ).
- 4mm shaft diameter and 34.7mm length for robust integration into heavy-duty frames.
Out of stock
The T-Motor F100 KV1100 motor is engineered for demanding cinematic and long-range drone applications. Its core design prioritizes a balance of high-torque power for aggressive maneuvers and exceptionally smooth throttle response for precise, stable camera work. The upgraded Unibell construction integrates the bell and shaft housing into a single, reinforced unit, significantly improving impact resistance and thermal management under continuous high-load operation.
Internally, pure hand-wound copper wires minimize electrical losses, contributing to the motor’s high efficiency and peak power handling of 1176W. This design, combined with a 12N14P magnetic configuration, ensures reliable performance and precise control across the entire throttle range, making it ideal for pilots requiring both explosive power and silky-smooth cinematic motion from their aerial platforms.
Additional Information
| Weight | 0.067 kg |
|---|
