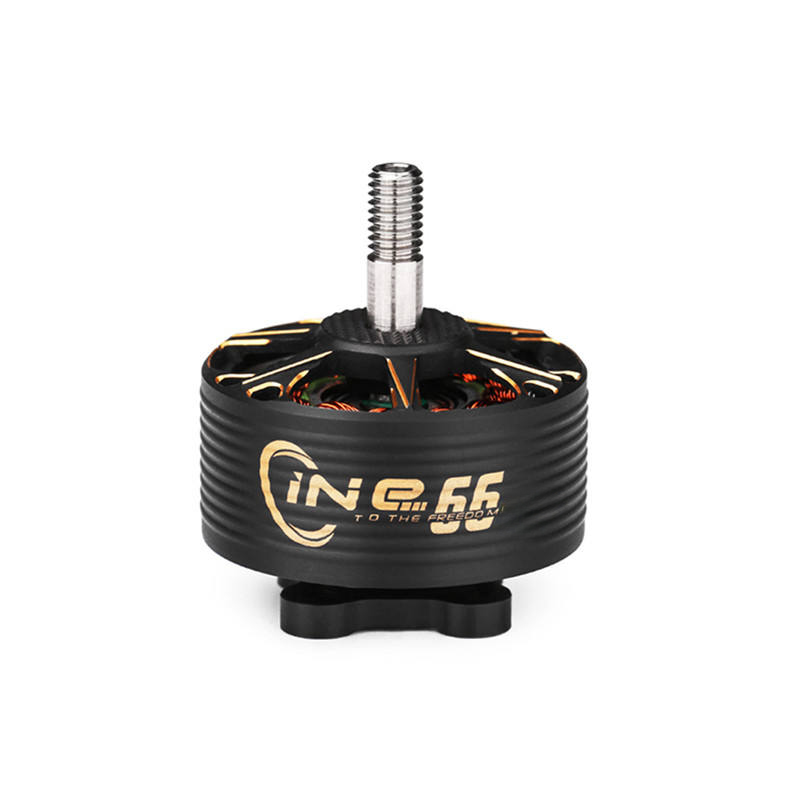

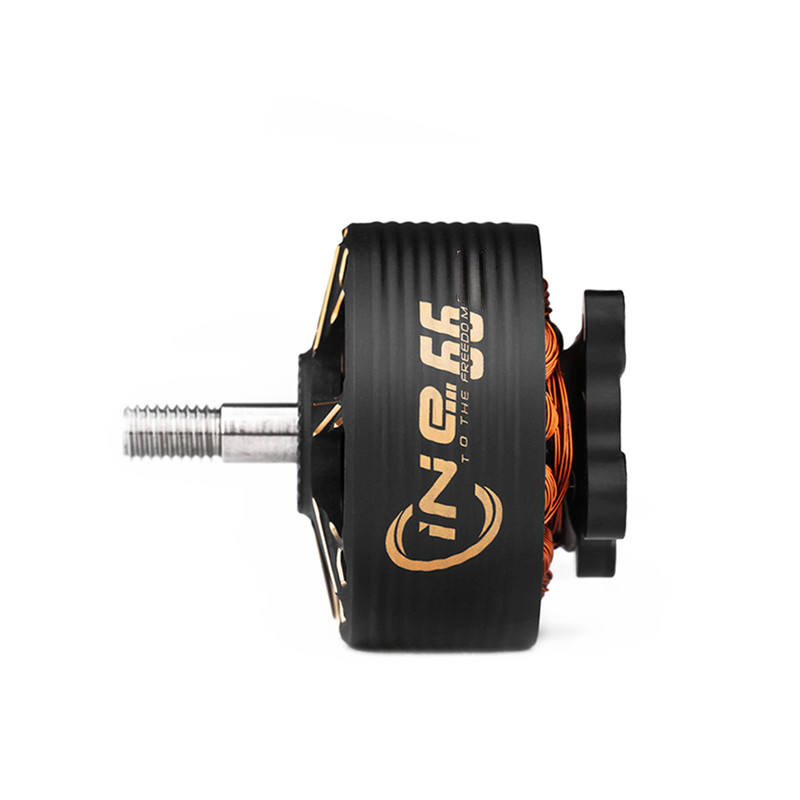

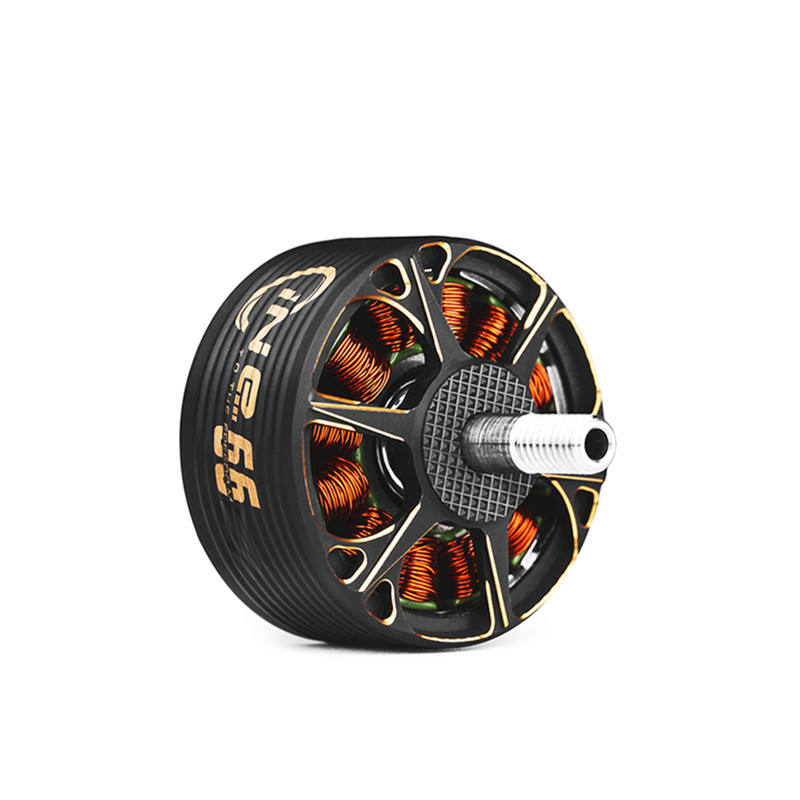

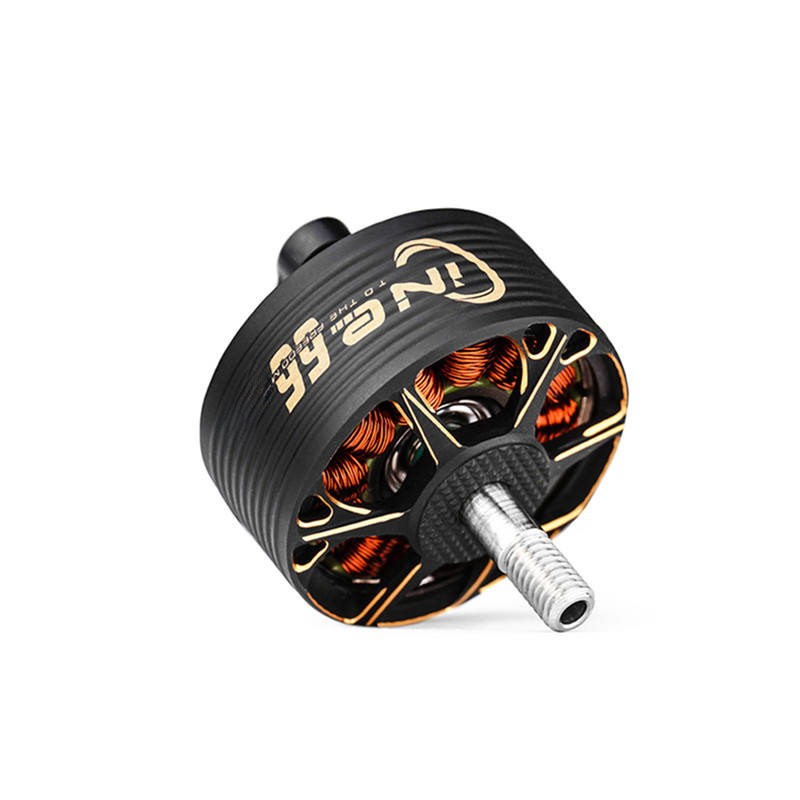

T-Motor CINE66 2812 1155KV Brushless Motor - 4-6S
The T-Motor CINE66 2812 is a 1155KV brushless motor engineered for 4-6S LiPo power, optimized for 8-9″ X8 cinematic drone builds requiring smooth, high-torque performance and reliable power delivery up to 1320W.
Features
- 1155KV rating optimized for 4-6S LiPo batteries and 8-9″ propellers.
- Unibell single-piece bell construction enhances structural safety and durability.
- Wave-shaped stator design improves active cooling and thermal efficiency.
- Delivers 1320W peak power with a 54.5A peak current rating for demanding loads.
- Lightweight 76.7g design (including cable) for improved flight agility and efficiency.
Out of stock
The T-Motor CINE66 2812 motor is engineered for professional cinematic and heavy-lift drone applications. Its 1155KV rating provides the ideal torque and RPM balance for spinning large 8-9″ propellers on 4-6S power systems, enabling smooth, stable flight characteristics essential for aerial filming. The motor’s electrical design, featuring a 12N14P configuration and low 47mΩ internal resistance, ensures efficient power conversion and minimal heat buildup under load.
Constructed with a robust Unibell design, the motor integrates the bell and shaft into a single, high-strength component, eliminating failure points and enhancing safety during high-stress maneuvers. The unique wave-shaped stator not only contributes to the motor’s distinctive appearance but also increases surface area for superior heat dissipation, allowing for sustained peak performance during extended flight sessions. This combination of advanced thermal management, structural integrity, and optimized electromagnetic design makes the CINE66 2812 a reliable propulsion solution for demanding X8 octocopter and large cinewhoop builds.
Additional Information
| Weight | 0.0767 kg |
|---|---|
| Dimensions | 3.44 × 3.44 × 4 cm |
