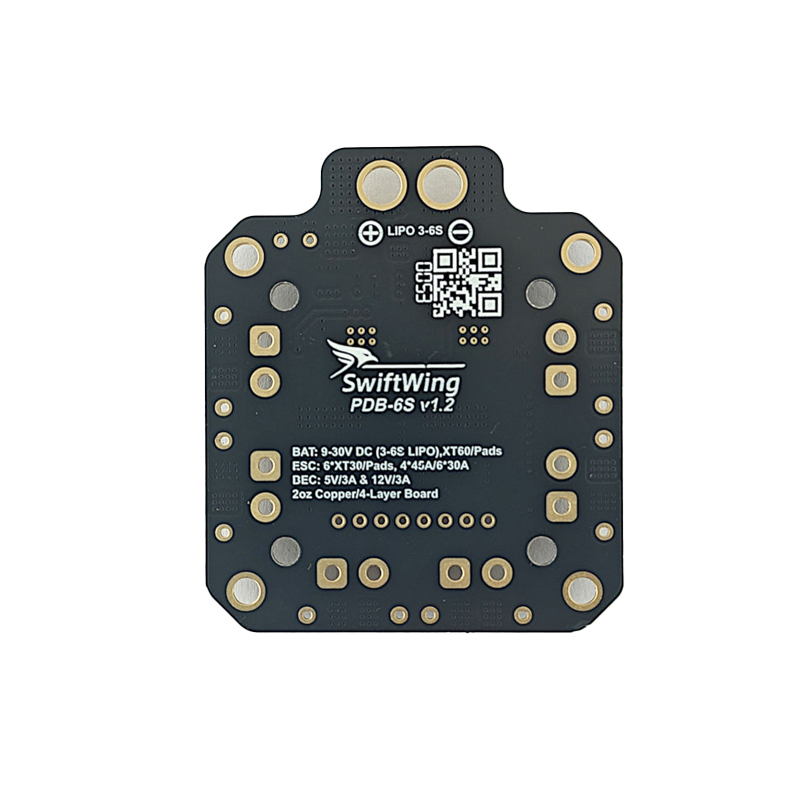

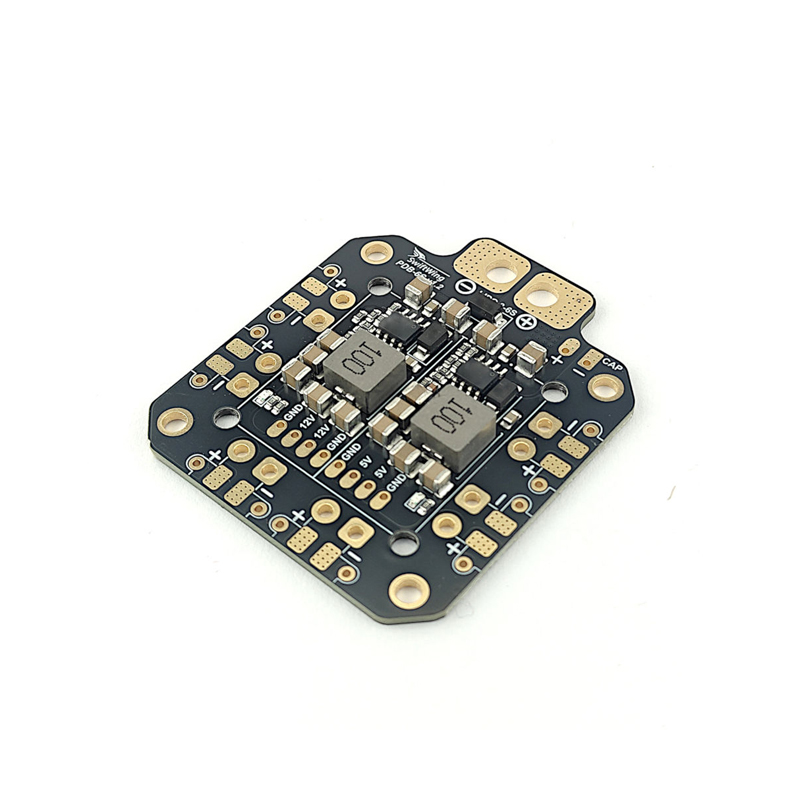

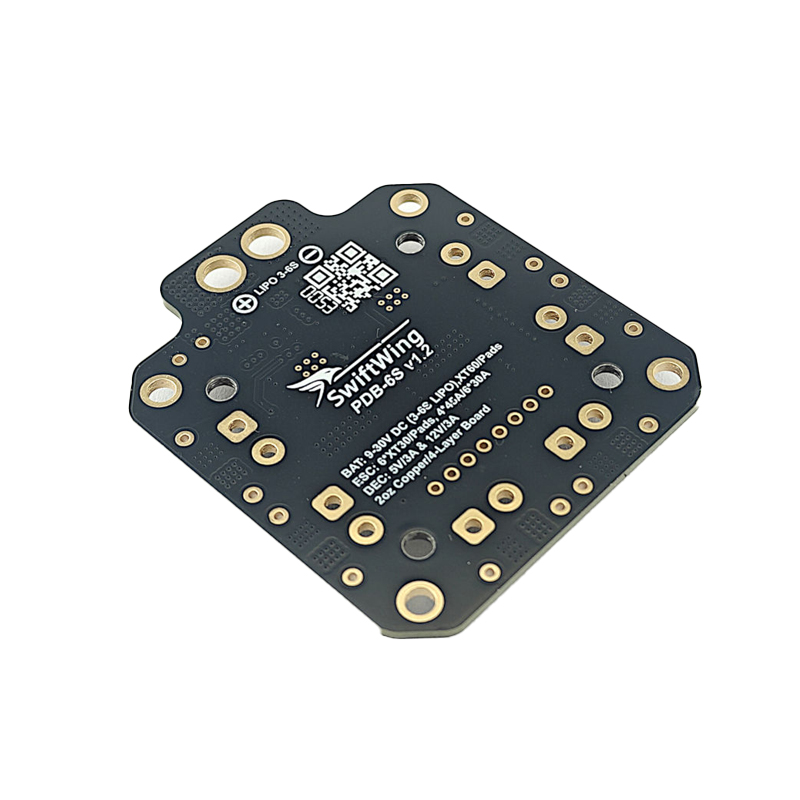

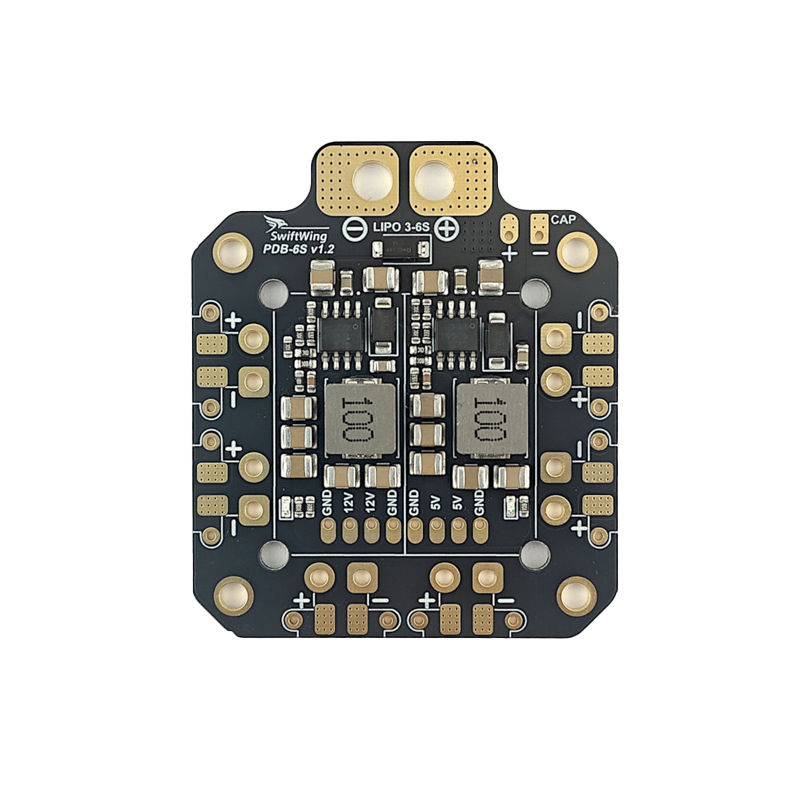

SwiftWing PDB-6S Power Distribution Board 3-6S w/ 5V 12V BEC
The SwiftWing PDB-6S is a robust power distribution board designed for 3S-6S LiPo systems, offering efficient power delivery up to 120A. It integrates stable 5V and 12V DC-DC buck regulators for powering flight controllers and peripherals.
Features
- 3S-6S LiPo input compatibility for versatile drone power systems.
- Integrated 5V/3A and 12V/3A BECs for stable peripheral power.
- High current handling up to 120A continuous for demanding setups.
- Robust 4-layer, 2 oz copper PCB for thermal resilience and low resistance.
- Dual 30.5mm & 40mm mounting patterns for broad frame compatibility.
Out of stock
The SwiftWing PDB-6S is an advanced power distribution board specifically engineered for high-current UAV and multirotor applications. It supports a wide operating voltage range from 3S to 6S LiPo batteries, ensuring broad compatibility across various drone builds. This board efficiently distributes power to electronic speed controllers while providing stable, regulated power outputs through its integrated 5V and 12V DC-DC buck converters, crucial for reliably powering flight controllers, video transmitters, and other sensitive peripherals.
Constructed with a 4-layer PCB and utilizing 2 oz copper, the PDB-6S minimizes voltage drop and delivers excellent thermal performance, even under heavy current loads up to 120A total. Its durable design ensures long-term reliability in demanding flight conditions. The board features versatile XT30/XT60 solder pads for flexible battery and ESC connectivity, simplifying the wiring process for builders. Additionally, it offers dual mounting patterns (30.5mm and 40mm) to fit a wide array of drone frames, making it an ideal choice for racing drones, aerial imaging platforms, and industrial UAVs requiring robust power management.
Additional Information
| Dimensions | 5.8 × 5 cm |
|---|
