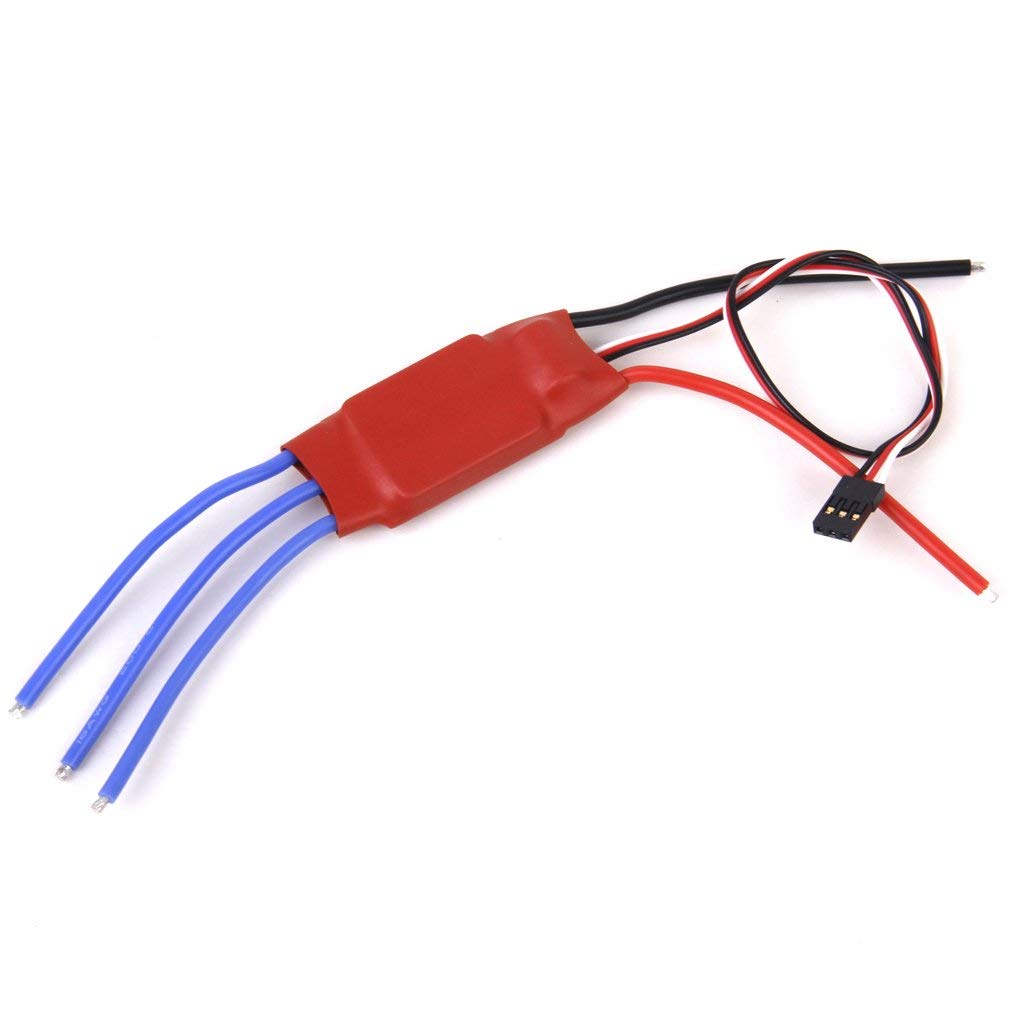

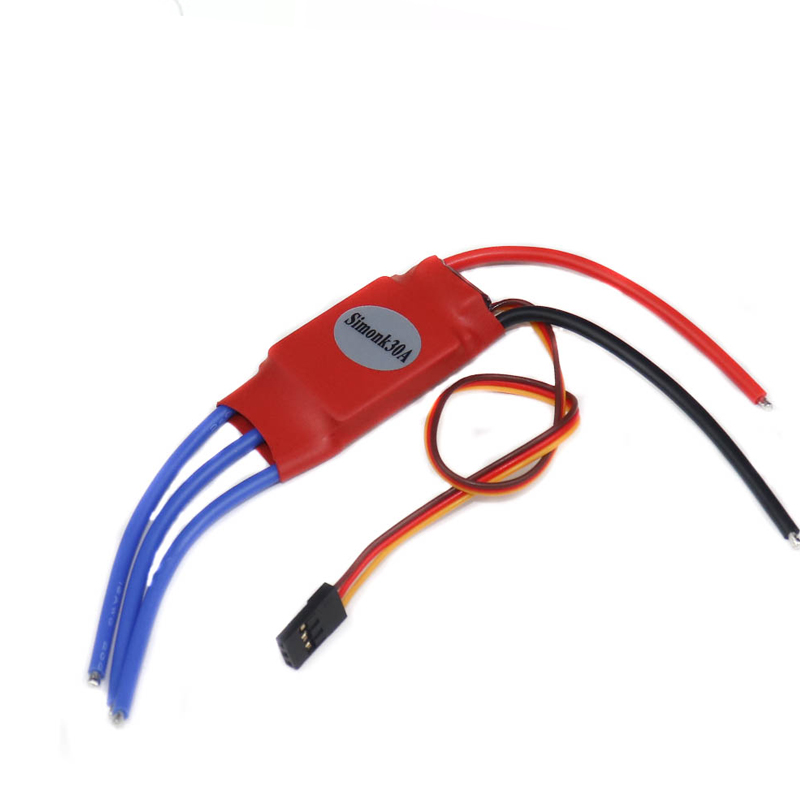

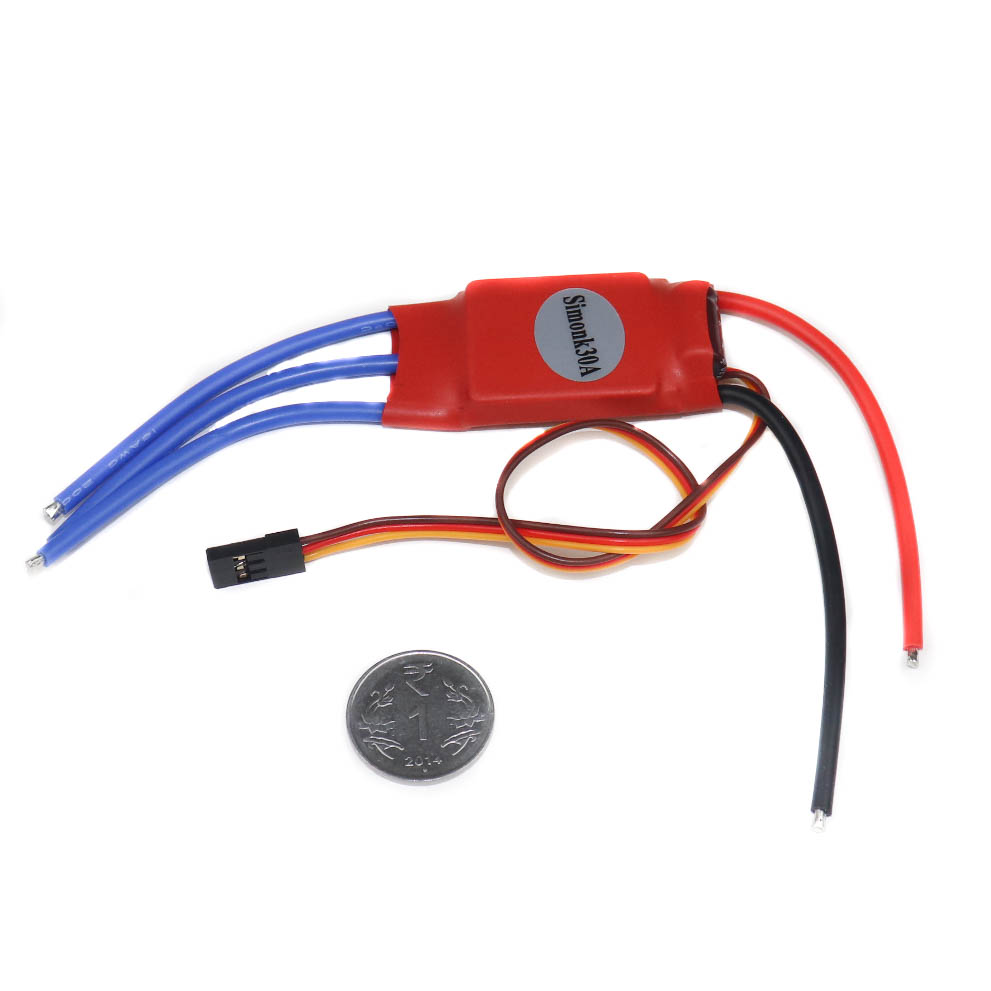

SimonK 30A BLDC ESC for 2-3S LiPo, No Connectors

The SimonK 30A BLDC ESC is a specialized electronic speed controller meticulously designed for quadcopters, multi-rotors, and RC aircraft. Its optimized firmware ensures faster and more precise motor speed control, translating into enhanced flight performance compared to conventional ESCs. This unit can efficiently drive brushless motors consuming up to 30A continuously, with a burst capability of 40A for short durations.

Operating within a 2S-3S LiPo battery range, this ESC integrates a reliable 5V/2A Battery Eliminator Circuit (BEC). This feature conveniently powers your receiver directly from the main flight battery, simplifying wiring and reducing overall weight by negating the need for a separate receiver battery. Furthermore, the ESC incorporates critical safeguards, including backward-polarity protection and protection on the 5V receiver line, significantly reducing the risk of damage from accidental reverse battery connections or interference from other BECs.

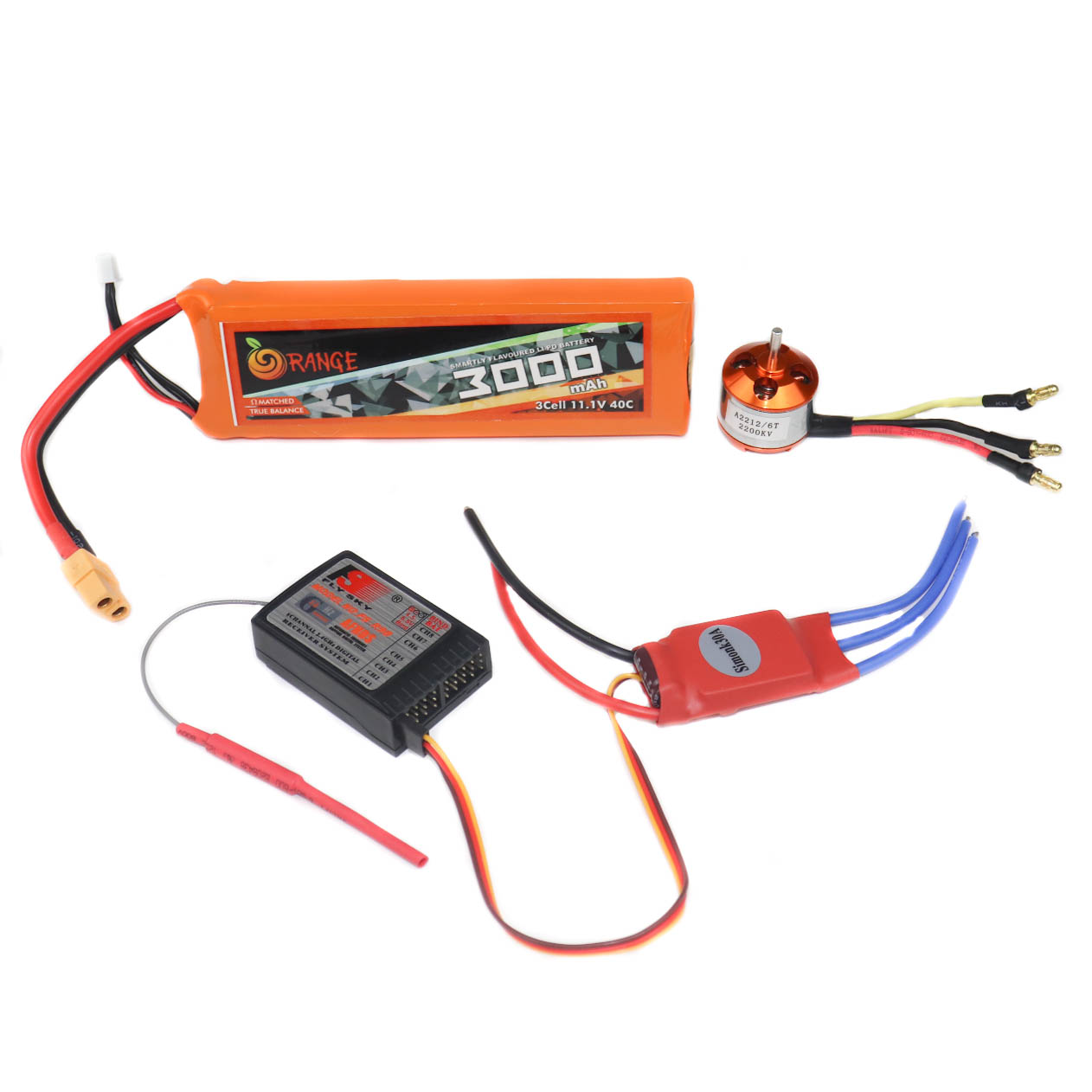

Built with high-quality MOSFETs and a high-performance microcontroller, the SimonK 30A ESC offers broad compatibility with various BLDC motor types while ensuring greater operational efficiency. Its fully programmable throttle range allows for seamless integration with any standard RC remote control. The robust heat sink, paired with an advanced heat transmission membrane, ensures superior thermal management, maintaining stable performance even under strenuous flight conditions. It is particularly recommended for setups using A2212 brushless motors (1000kv, 1400kv, 2200kv).
