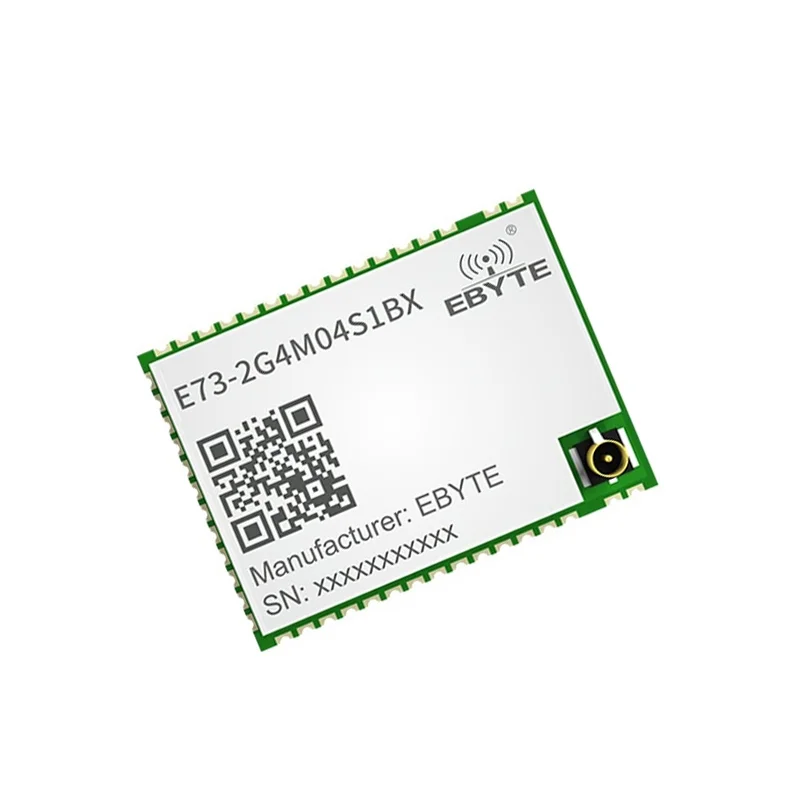

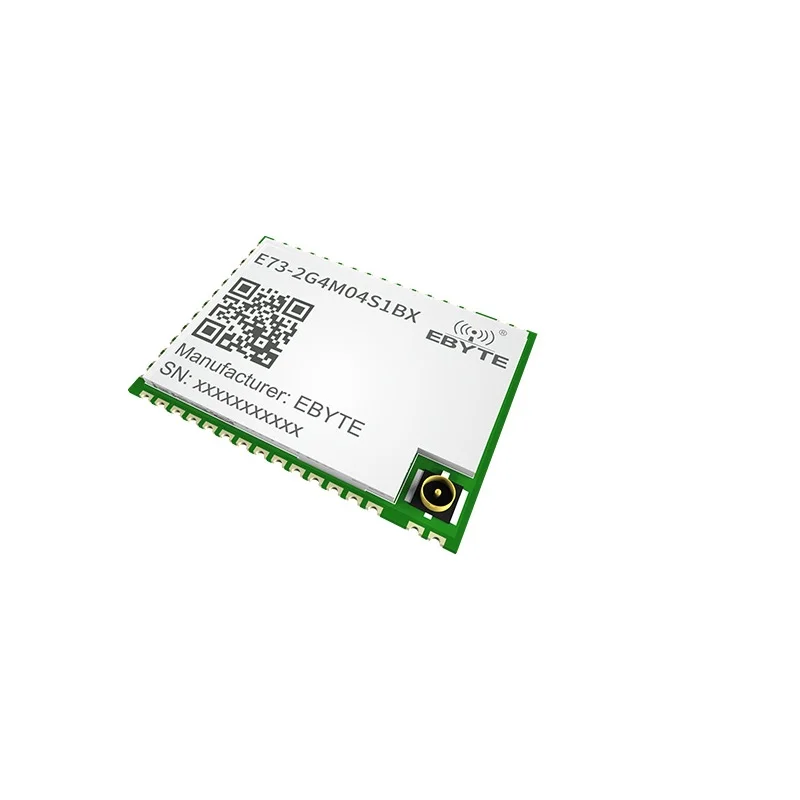

EByte E73-2G4M04S1BX nRF52832 BLE 5.0 Module w/ IPEX Antenna
The EByte E73-2G4M04S1BX is a compact, surface-mount BLE 5.0/4.2 transceiver module based on the Nordic Semiconductor nRF52832 SoC, featuring an ARM Cortex-M4F core, 512KB flash, and an IPEX antenna interface for robust 2.4GHz wireless connectivity in low-power IoT designs.
Features
- Nordic Semiconductor nRF52832 SoC with 64MHz ARM Cortex-M4F CPU, 512KB Flash, and 64KB RAM for embedded BLE applications.
- Dual-mode BLE 5.0 and BLE 4.2 support enables enhanced data throughput, longer range, and lower power consumption.
- Integrated IPEX antenna connector for external antenna attachment, improving signal strength and achieving up to 100m line-of-sight range.
- Ultra-low power operation with 4-6mA receive current and a wide 1.8V to 3.6V supply voltage, ideal for battery-powered devices.
- Industrial-grade temperature range from -40°C to +85°C ensures reliable performance in harsh environmental conditions.
Out of stock
The E73-2G4M04S1BX from EByte is a professional-grade Bluetooth Low Energy module engineered for reliable bidirectional wireless communication. Built around Nordic Semiconductor Semiconductor’s proven nRF52832 system-on-chip, it combines a powerful 32-bit ARM Cortex-M4F processor with floating-point unit and ample memory resources to run custom firmware stacks like Zephyr RTOS, Nordic Semiconductor’s nRF5 SDK, or Arduino core libraries.
Operating in the global 2.4GHz ISM band (2379-2496MHz), the module supports both legacy BLE 4.2 and modern BLE 5.0 feature sets, including 2x PHY for higher data rates and improved coexistence. Its integrated +4dBm RF power amplifier and -95dBm receiver sensitivity, coupled with the external IPEX antenna interface, provide robust link budgets for applications requiring extended range or penetration through obstacles.
Designed for surface-mount assembly, the module’s compact 17.5 x 23.5mm footprint and 1.8-3.6V wide voltage input make it a versatile drop-in solution for product designers, enabling rapid integration of Bluetooth connectivity into wearables, sensor nodes, remote controls, and smart home devices without complex RF layout challenges.
Additional Information
| Weight | 0.0021 kg |
|---|---|
| Dimensions | 2.35 × 1.75 cm |
