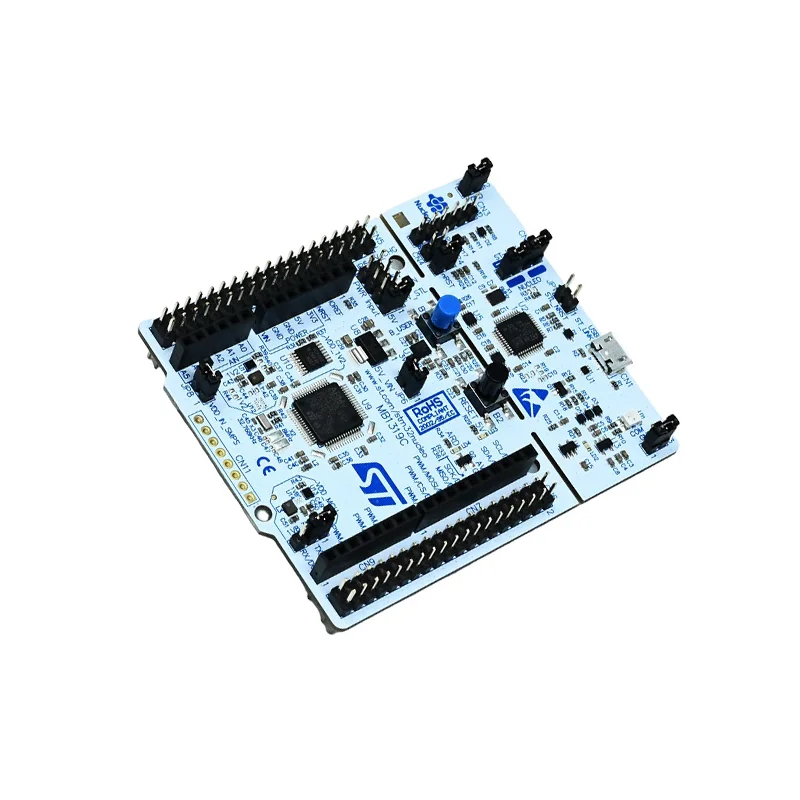

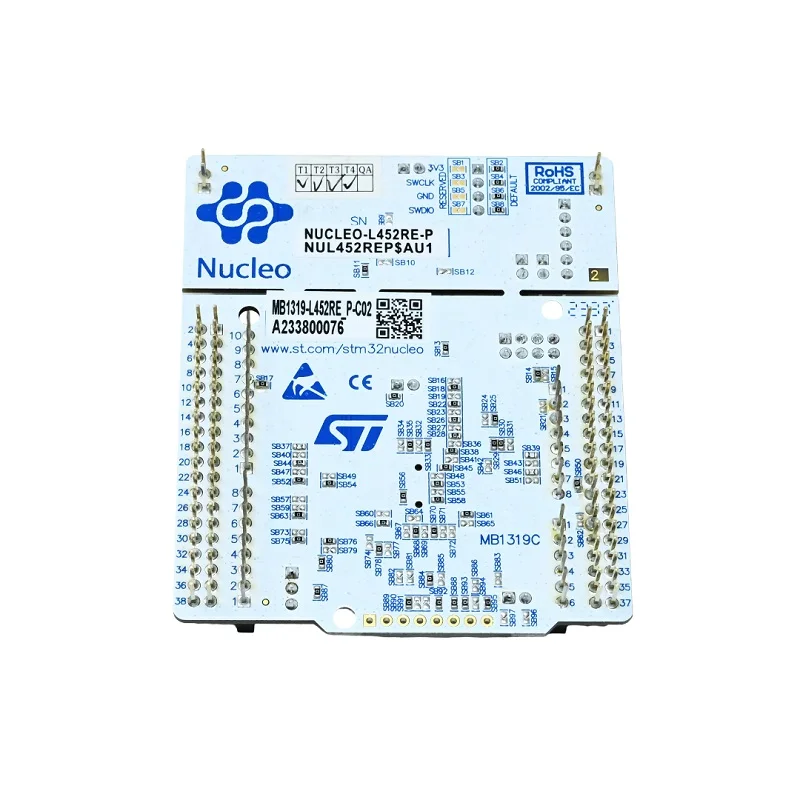

STMicroelectronics NUCLEO-L452RE-P STM32L452RE Nucleo-64 Development Board
The STMicroelectronics NUCLEO-L452RE-P is a Nucleo-64 development board featuring the ultra-low-power STM32L452RE MCU. It integrates an ST-LINK debugger/programmer and offers Arduino Uno V3 and ST Morpho headers for rapid prototyping with a wide range of shields and expansion modules.
Features
- Powered by the STM32L452RE microcontroller based on Arm Cortex-M4 core for a balance of performance and ultra-low-power operation.
- Integrated ST-LINK/V2-1 debugger and programmer eliminates the need for an external probe, streamlining development.
- Dual expansion headers: Arduino® Uno V3 connectivity and ST Morpho connectors for extensive shield and custom hardware compatibility.
- Comprehensive free software support via STM32CubeMX initialization tool and HAL libraries, compatible with IAR, Keil MDK-ARM, and STM32CubeIDE.
- Flexible power supply options including USB VBUS, external sources, and internal SMPS on compatible boards to optimize power consumption.
Out of stock
The NUCLEO-L452RE-P is a versatile Nucleo-64 platform designed for evaluating and prototyping with STMicroelectronics’ STM32L4 series of microcontrollers. It centers on the STM32L452RE, an ultra-low-power MCU featuring an Arm Cortex-M4 core with FPU, making it suitable for applications requiring efficient digital signal processing and power-sensitive operation.
The board’s architecture simplifies the development workflow by incorporating a full-featured ST-LINK debugger/programmer. This allows for seamless code uploading, debugging, and virtual COM port communication directly via a single USB connection. The combination of Arduino Uno V3 and ST Morpho extension headers provides unmatched flexibility, enabling connection to a vast ecosystem of Arduino-compatible shields as well as direct access to all MCU pins for custom carrier board design.
Additional Information
| Weight | 0.083 kg |
|---|---|
| Dimensions | 12 × 10 × 4 cm |
