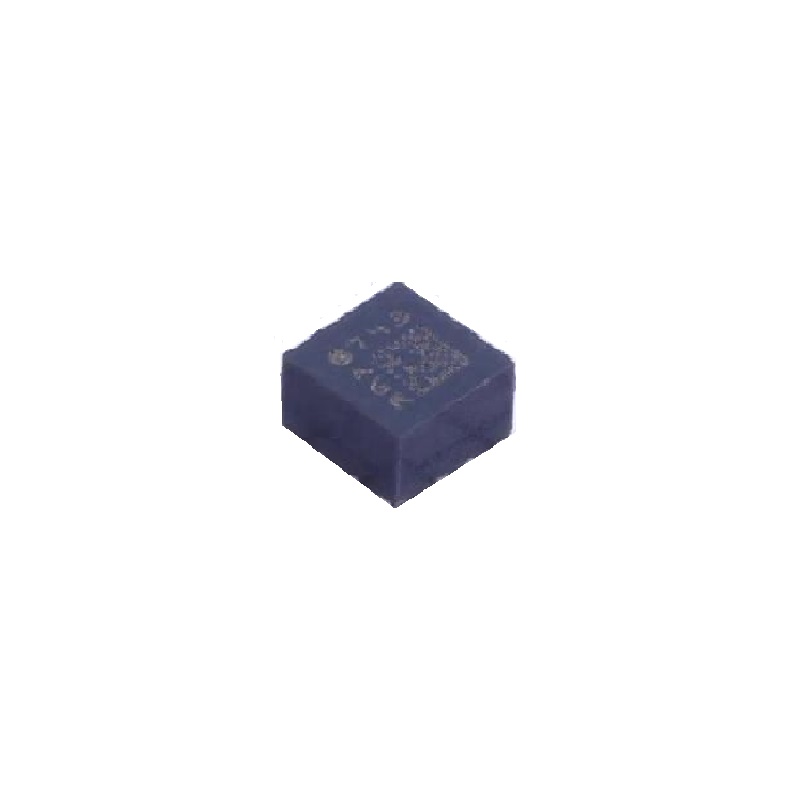

STMicroelectronics LSM303AGRTR LGA-12 Accelerometer Magnetometer Module - SPI/I2C Interface
The STMicroelectronics LSM303AGRTR is a low-power, high-performance 6-axis IMU module integrating a 3D digital accelerometer and a 3D magnetometer, featuring SPI and I2C digital interfaces for seamless integration with microcontrollers like Arduino, Raspberry Pi, ESP32, and STM32.
Features
- Integrated 3D Accelerometer (±2g/±4g/±8g/±16g) & 3D Magnetometer (±50 Gauss).
- Dual digital interfaces: SPI (3/4 wire) and I2C for flexible system integration.
- Programmable interrupts for motion, free-fall, and magnetic field detection.
- Embedded features: FIFO buffer, temperature sensor, and self-test function.
- Wide operating temperature range from -40°C to +85°C for industrial applications.
Out of stock
The LSM303AGRTR is a system-in-package (SiP) device combining a MEMS-based 3-axis linear accelerometer and a 3-axis magnetic sensor. The accelerometer provides high-resolution 16-bit data output with user-selectable full-scale ranges, while the magnetometer offers a broad ±50 Gauss dynamic range, making it suitable for precise orientation and heading reference systems (AHRS).
Advanced embedded functions, including a programmable FIFO buffer, reduce host processor load and enable power-saving modes. The integrated temperature sensor allows for thermal compensation of sensor data, enhancing measurement accuracy across the extended industrial temperature range from -40°C to +85°C.
Additional Information
| Weight | 0.001 kg |
|---|---|
| Dimensions | 2 × 2 × 0.1 cm |
