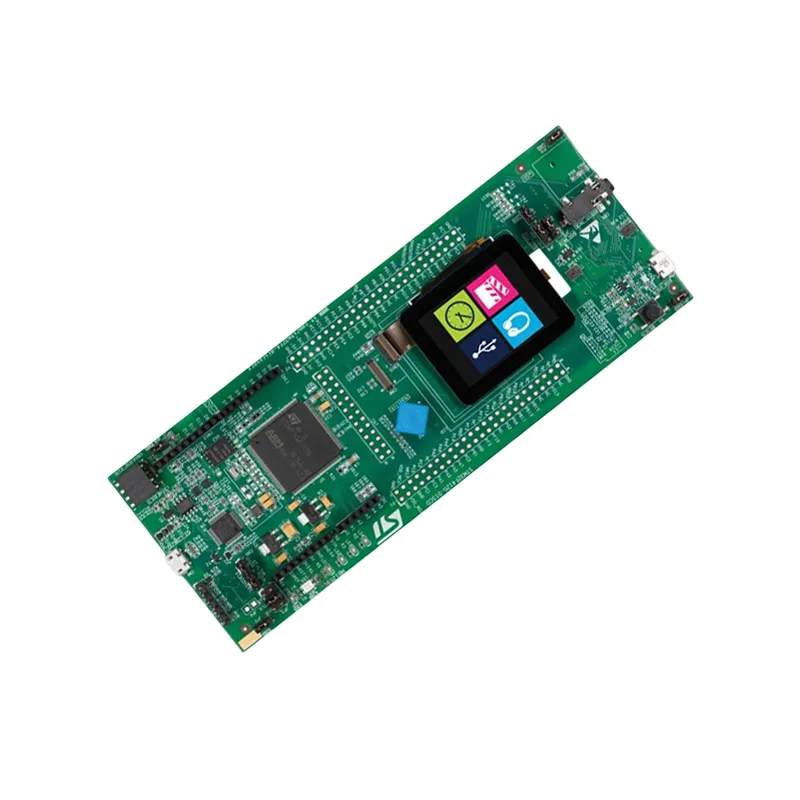

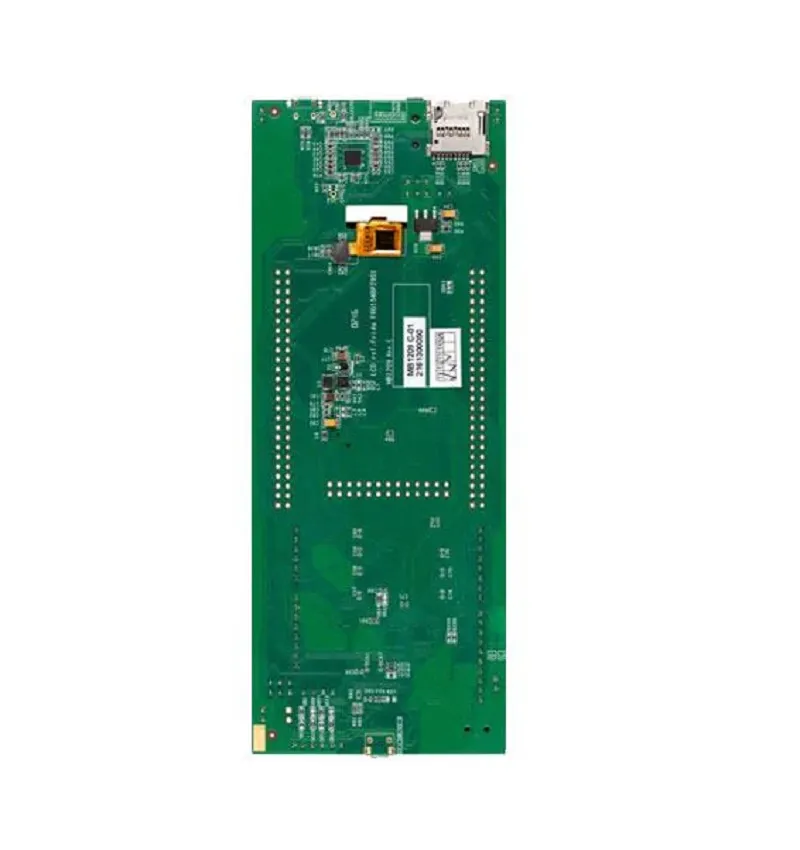

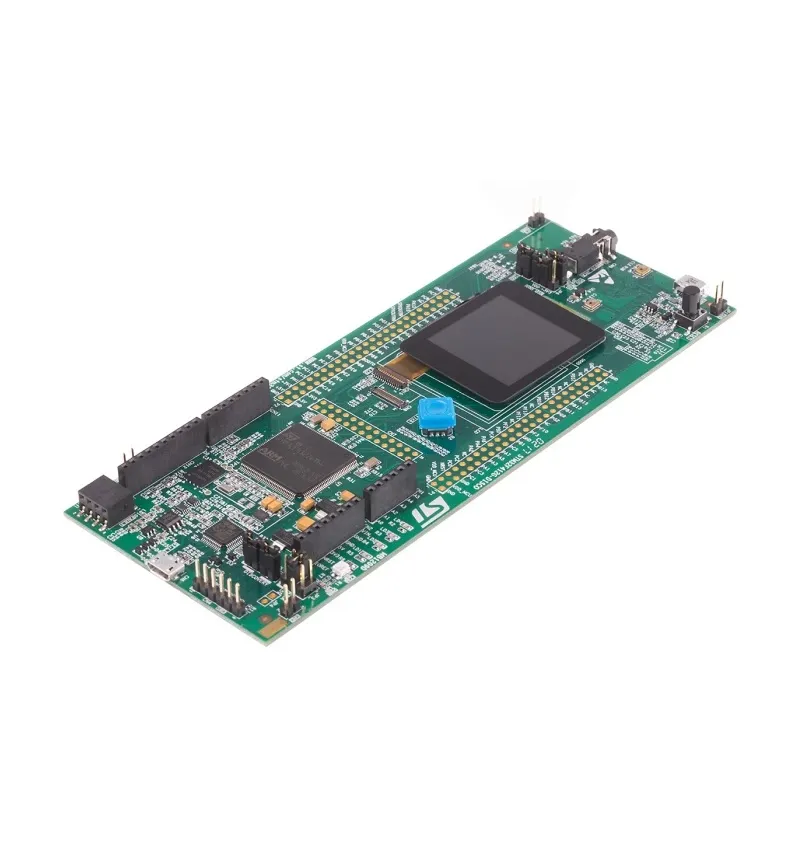

STM32F412ZG Discovery Kit with ST-LINK/V2-1 & LCD
The STMicroelectronics STM32F412ZG Development Kit offers a comprehensive platform for embedded system design, featuring the high-performance STM32F412ZG ARM Cortex-M4 MCU. It integrates an ST-LINK/V2-1 debugger/programmer and a 240×240 pixel TFT color LCD with capacitive touchscreen, providing all essentials for rapid prototyping and application development.
Features
- Features the high-performance STM32F412ZG ARM Cortex-M4 microcontroller.
- Integrated ST-LINK/V2-1 debugger/programmer for efficient code development and debugging.
- Includes a 1.54-inch 240×240 pixel TFT color LCD with parallel interface and capacitive touchscreen.
- Equipped with I2S Audio CODEC, stereo MEMS microphones, and a MicroSD card connector.
- Compatible with Arduino Uno Revision 3 connectors for enhanced expandability.
Out of stock
The STMicroelectronics STM32F412ZG Development Kit, also known as the 32F412GDISCOVERY, provides a robust and versatile platform for developers to evaluate and build applications around the STM32F412ZG microcontroller. This kit leverages the powerful ARM Cortex-M4 core, capable of up to 100 MHz, making it suitable for a broad spectrum of embedded systems requiring advanced processing and rich peripheral sets.
Key components include an integrated ST-LINK/V2-1 debugger/programmer, simplifying the development workflow by providing immediate access to programming and debugging functionalities via SWD and JTAG. The kit also boasts a 1.54-inch 240×240 pixel TFT color LCD with a capacitive touchscreen, ideal for creating interactive user interfaces. Peripheral support extends to I2S Audio CODEC with headset jack, stereo digital MEMS microphones, USB OTG FS, 128 Mbit Quad-SPI NOR Flash, and a MicroSD card connector, ensuring comprehensive connectivity and storage options for diverse projects. Its compatibility with Arduino Uno revision 3 and additional expansion connectors further enhances its versatility for specialized add-on boards.
Additional Information
| Weight | 0.137 kg |
|---|---|
| Dimensions | 29 × 16 × 4 cm |
