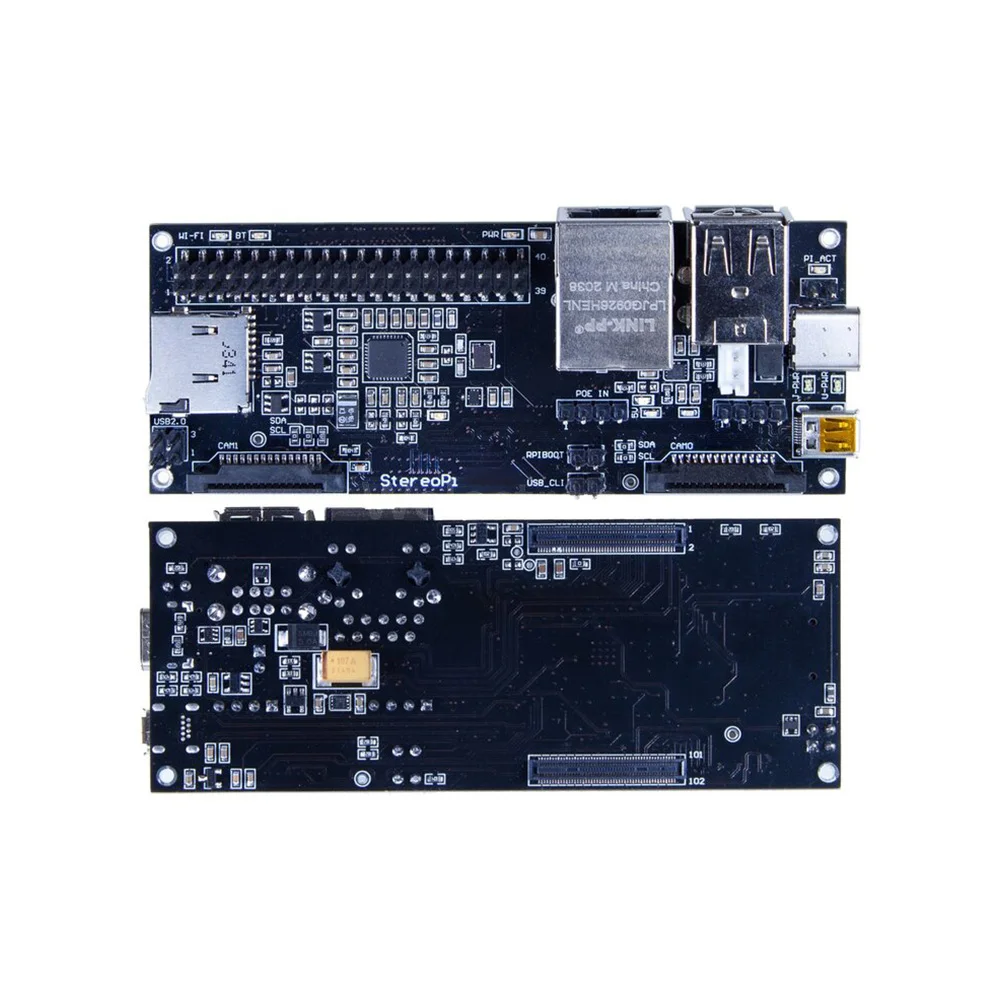

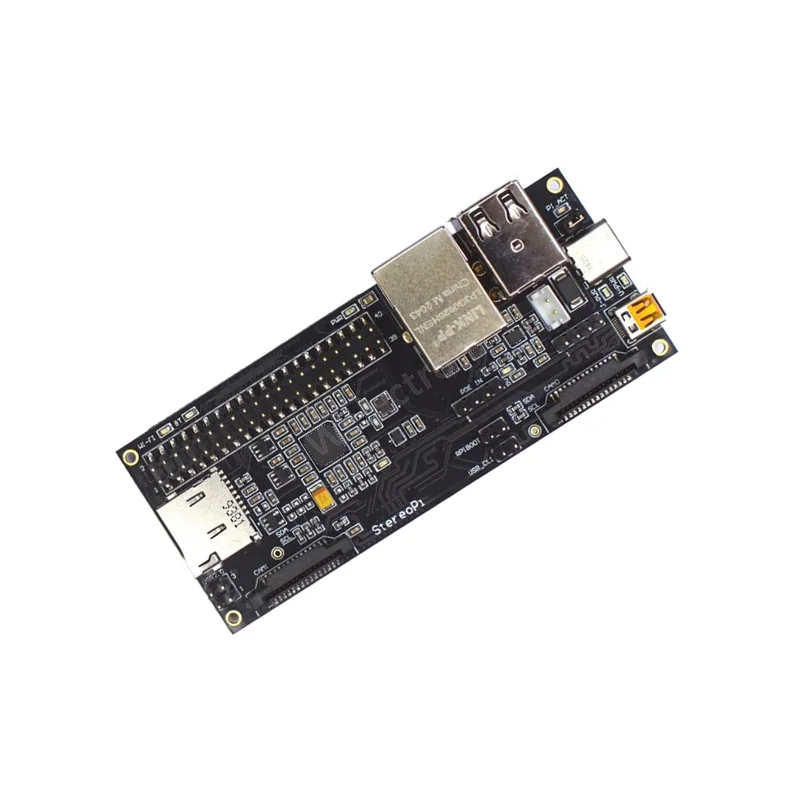

StereoPi v2 Slim Camera Carrier Board for Raspberry Pi CM4
StereoPi v2 Slim Camera Carrier Board for Raspberry Pi CM4 - Image 2
StereoPi v2 Slim Camera Carrier Board for Raspberry Pi CM4 - Image 3
SKU: IOWC-1251
📋 GST Invoice Available

StereoPi v2 Slim Camera Carrier Board for Raspberry Pi CM4

₹5,459.00 (Inclusive of all taxes)
Out of Stock

The StereoPi v2 Slim is an open-source stereoscopic camera carrier board for the Raspberry Pi Compute Module 4, designed for real-time capture, processing, and livestreaming of 3D video and images. It supports dual CSI-2 camera inputs, micro HDMI output, and runs on Raspberry Pi OS.

Features

  • Dual CSI-2 Camera Inputs: Supports two 15-pin camera connectors for stereoscopic vision with Raspberry Pi V1, V2, and HQ camera modules.
  • Compact Slim Form Factor: Measures 100mm x 40mm x 15mm for space-constrained robotics, AR/VR, and embedded vision applications.
  • Raspberry Pi CM4 Compatibility: Works with all Compute Module 4 variants (wireless/no-wireless, eMMC/no eMMC, 1-8GB RAM) for flexible system integration.
  • Micro HDMI Video Output: Provides a direct interface for real-time stereoscopic video display or monitoring.
  • Open-Source Platform: Enables custom development for robotics, computer vision, and 3D imaging projects using Raspberry Pi OS.

Out of stock

Description

The StereoPi v2 Slim is a specialized carrier board engineered to transform a Raspberry Pi Compute Module 4 into a powerful stereoscopic vision system. Its dual 15-pin CSI-2 interfaces allow for simultaneous capture from two camera modules, enabling real-time depth perception, 3D reconstruction, and immersive video streaming. The board’s slim 15mm profile is ideal for integration into drones, robotic heads, and portable AR/VR rigs where space is at a premium.

Built around the Raspberry Pi ecosystem, it provides full GPIO access (via the standard version) and supports a wide range of official and third-party camera sensors, including the high-resolution IMX477. Power is supplied via a 5V input, and the board includes essential connectivity such as micro HDMI for direct video output, with optional versions offering Ethernet for networked applications. This makes the StereoPi v2 a foundational hardware platform for developers and researchers working in advanced computer vision and real-time stereoscopic processing.

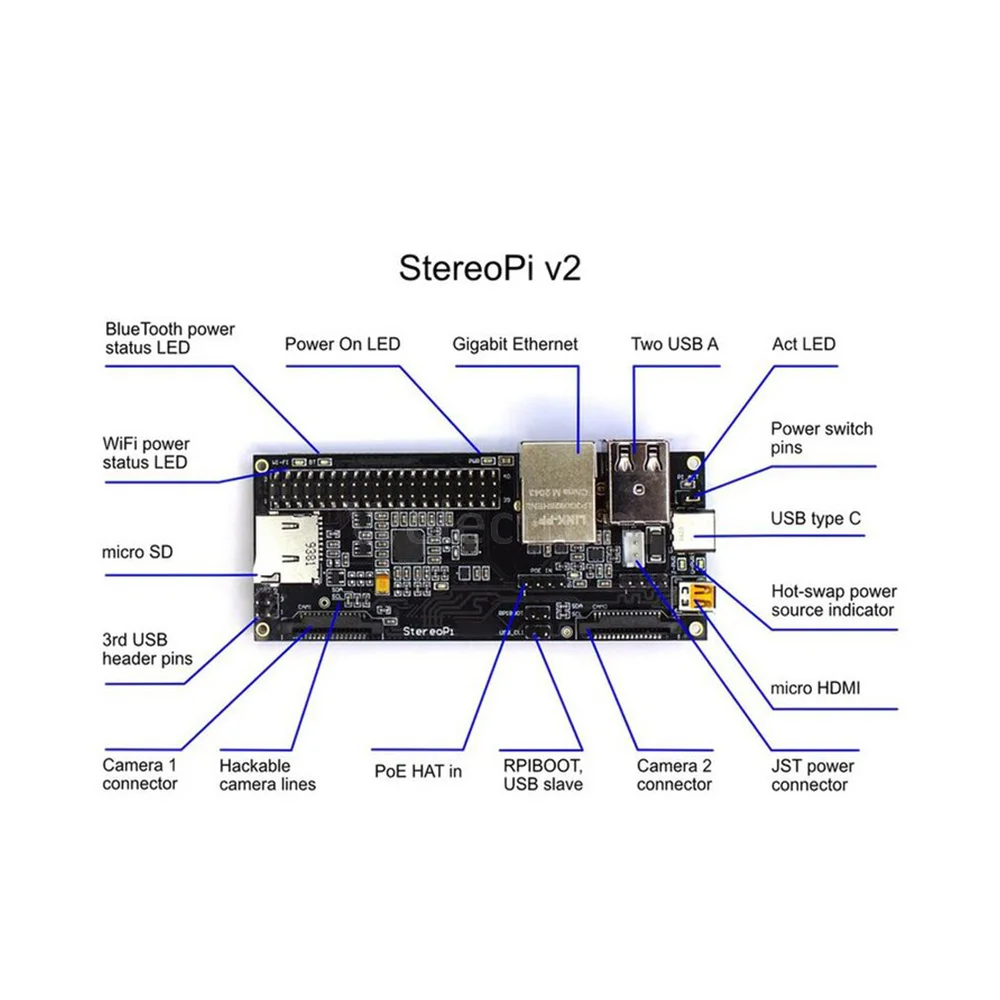

Key Features

  • Open-source stereoscopic camera carrier board for Raspberry Pi Compute Module 4.
  • Dual 15-pin MIPI CSI-2 camera connectors for simultaneous left/right image capture.
  • Ultra-slim 15mm profile design for compact embedded and mobile applications.
  • Full compatibility with Raspberry Pi OS and standard CM4 I/O, including 40-pin GPIO header.
  • Micro HDMI port for direct stereoscopic video output and live preview.
  • Supports 5V power input via JST EHR connector with included short power cables.
  • Compatible with Raspberry Pi Camera V1 (OV5647), V2 (IMX219), HQ Camera (IMX477), and other modules.
  • Optional standard version includes RJ45 Ethernet and full GPIO breakout for expanded connectivity.

Applications

  • Stereoscopic Robotics: Depth perception and navigation for autonomous robots and drones.
  • Virtual & Augmented Reality (VR/AR): Real-time 3D scene capture for immersive headsets and applications.
  • Computer Vision Research: Platform for developing and testing stereo matching, SLAM, and 3D reconstruction algorithms.
  • Live 3D Streaming: Broadcasting stereoscopic video feeds for telepresence and remote viewing.
  • Educational Tools: Teaching stereoscopy, photogrammetry, and embedded vision system design.

Technical Specifications

Compatible HostRaspberry Pi Compute Module 4 (All Variants)
Camera InterfacesDual 15-pin MIPI CSI-2 Connectors
Video Output1x Micro HDMI
Supported CamerasRaspberry Pi Camera V1 (OV5647), V2 (IMX219), HQ (IMX477), HDMI Capture
GPIO Interface40-pin Classic Raspberry Pi Header (Standard Version)
EthernetRJ45 Jack (Standard Version)
BluetoothBluetooth 5.1 Dual Mode (via CM4 Wireless)
Input Voltage5V DC
Dimensions (Slim)100mm x 40mm x 15mm
Shipping Weight0.051 kg

Frequently Asked Questions

What Raspberry Pi Compute Module 4 variants are compatible with the StereoPi v2 Slim?

The StereoPi v2 Slim is compatible with all Raspberry Pi Compute Module 4 (CM4) variants. This includes models with or without wireless connectivity (Wi-Fi/Bluetooth), with or without onboard eMMC storage, and with any RAM configuration (1GB, 2GB, 4GB, or 8GB). The carrier board provides the necessary power and data interfaces for the CM4's edge connector.

Which camera modules can I use with the StereoPi's dual CSI-2 connectors?

The board natively supports official Raspberry Pi camera modules: the V1 (OV5647 sensor), V2 (Sony IMX219 sensor), and the High Quality (HQ) camera (IMX477 sensor). It is also compatible with other MIPI CSI-2 camera modules that have appropriate drivers for Raspberry Pi OS. You can use two identical cameras for stereoscopic imaging or mix modules for specific applications.

How do I power the StereoPi v2 Slim board and what is the required voltage?

Power the StereoPi v2 Slim via its JST EHR 2-pin connector using a stable 5V DC power supply. The included short power cables facilitate connection. Ensure your power source can provide sufficient current for the Compute Module 4 and any connected peripherals. The board does not have a barrel jack; you will need a compatible cable or adapter for the JST connector.

What is the difference between the StereoPi v2 Slim and Standard editions?

The Slim edition is 15mm thick and omits the physical RJ45 Ethernet port and the full 40-pin GPIO header to achieve its compact size. The Standard edition is 23mm thick and includes both the Ethernet jack and the full GPIO breakout. Both share the core dual CSI-2 and micro HDMI functionality. Choose Slim for space-constrained projects and Standard for maximum connectivity.

What software and OS are required to use the StereoPi v2 for stereoscopic imaging?

Use the official Raspberry Pi OS (formerly Raspbian) as your base operating system. From there, you will need to install the StereoPi software suite and drivers, which are available from the open-source StereoPi project repositories. This software provides tools for calibrating the stereo camera pair, capturing synchronized images/video, and processing depth maps or streaming 3D video over the network or via the micro HDMI output.

Package Includes

  • 1 x StereoPi v2 Slim Camera Carrier Board
  • 2 x Short Power Cable (JST EHR 2 Connector)
  • 3 x Jumpers

Additional Information

Weight 0.051 kg
Dimensions 4 × 10 × 1.5 cm
