SPI BIOS FLASH Non-Dismantling Clip for SOP8
This SPI BIOS FLASH Non-Dismantling Test Clip allows for direct, in-circuit programming and testing of SOP8 packaged EEPROMs and BIOS chips without requiring removal from the circuit board, supporting 24Cxx, 25Cxx, 93Cxx, and 95xxx series.
Features
- Enables in-circuit programming for SOP8 BIOS/EEPROM chips.
- Eliminates the need for chip desoldering, preserving device integrity.
- Compatible with 24C, 25C, 93C, and 95xxx series FLASH chips.
- Features 2.54mm lead pitch and 3.81mm row pitch for stable connection.
Out of stock
Introducing the SPI BIOS FLASH Non-Dismantling Clip, an essential tool for efficient and non-invasive BIOS flashing and testing. Designed specifically for SOP8, 24C, 93C, and 25LF series chips, this clip allows technicians and developers to test and program BIOS chips directly in-circuit, eliminating the need to desolder components from the device PCB.

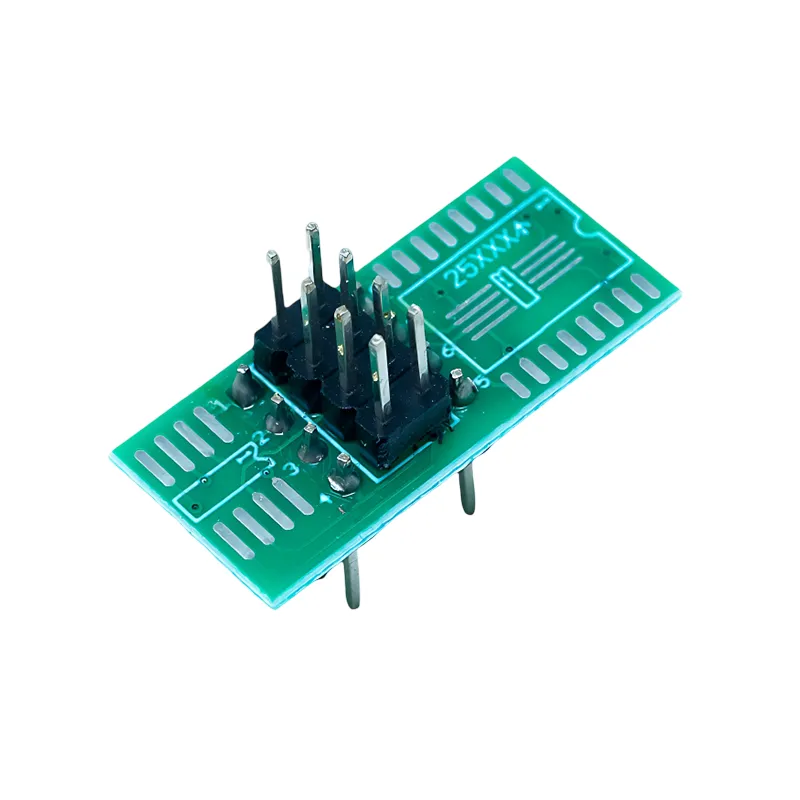

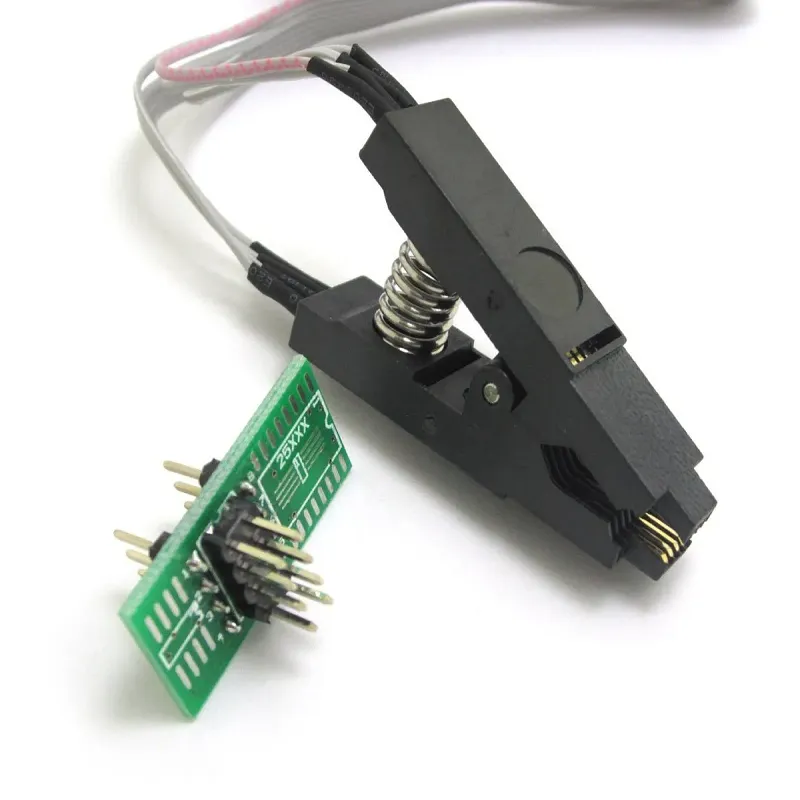

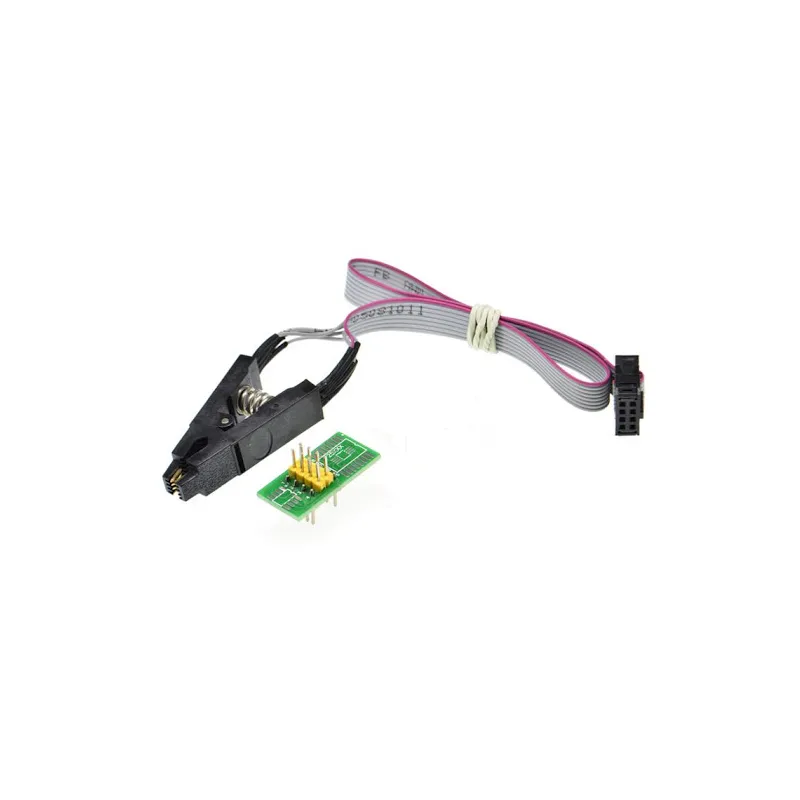

This clip is perfect for reading or writing EEPROMs without physical removal. Simply clip it onto the SOP8 chip, and utilize one of the two included breakout adapter boards to connect to your preferred programmer. The ISP cable features a 1:1 wiring configuration, ensuring compatibility with any programmer equipped with a ZIF/DIL socket and supporting ISP/ICSP programming modes.
Choosing this non-dismantling clip offers significant advantages: it’s quick and efficient, avoiding the hassle and risks associated with chip removal. This cost-effective solution reduces the complexity of disassembling devices for chip replacement or programming, making it versatile for a range of applications including BIOS recovery, firmware updates, and general chip diagnostics.
Additional Information
| Weight | 0.03 kg |
|---|---|
| Dimensions | 5 × 5 × 4 cm |
