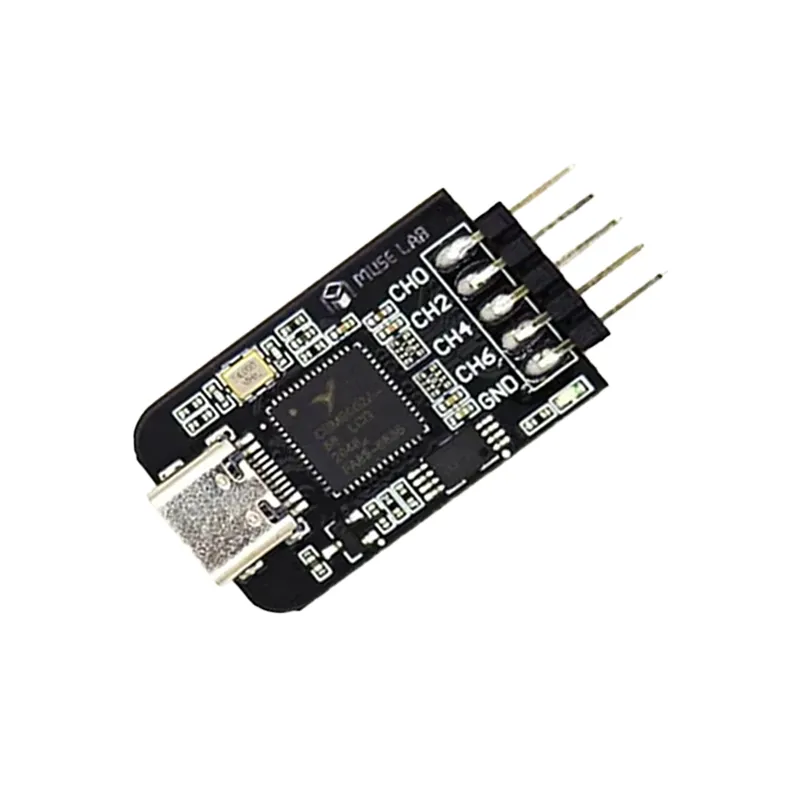

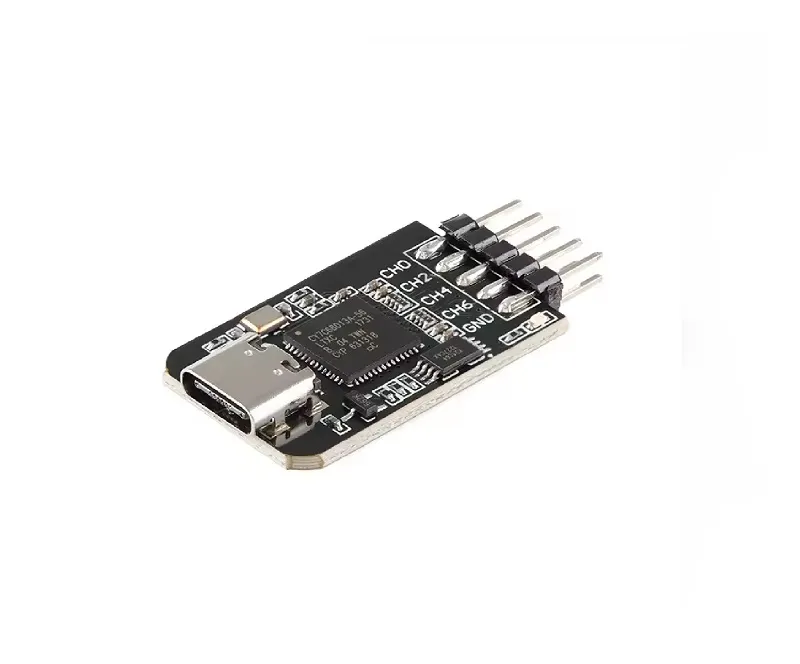

MuseLAB TYPE-C nanoDLA Logic Analyzer, 24MHz, 8 Channels
The MuseLAB TYPE-C nanoDLA is a compact, open-source logic analyzer designed for ARM FPGA debugging and protocol analysis. Offering a 24MHz sampling rate and 8 channels, it provides high-precision data capture for complex system timing and signal integrity analysis.
Features
- High-precision 24MHz sampling rate for accurate data capture.
- Simultaneous 8-channel input supports complex multi-signal debugging.
- Wide logic level compatibility from -0.5V to 5.25V for diverse circuits.
- Multi-platform support across Windows, Linux, Mac, and Android.
- Open-source PulseView software enables decoding of 100+ protocols.
Out of stock
The MuseLAB TYPE-C nanoDLA stands as an essential tool for embedded systems developers, offering robust capabilities for ARM FPGA debugging and comprehensive protocol analysis. This compact logic analyzer features a high-speed 24MHz sampling rate across 8 independent channels, making it perfectly suited for detailed timing analysis and signal verification in intricate digital circuits. Its ability to capture data from multiple signals concurrently ensures thorough examination of system interactions.
Designed for versatility, the nanoDLA supports an expansive input logic level range of -0.5V to 5.25V, accommodating various voltage standards encountered in modern electronics. Compatibility extends across major operating systems including Windows, Linux, Mac, and Android, ensuring seamless integration into diverse development environments. The device leverages open-source software like PulseView, providing access to a vast library of over 100 supported protocols for in-depth signal decoding and efficient problem isolation.
Additional Information
| Weight | 0.003 kg |
|---|---|
| Dimensions | 3.9 × 2 cm |
