RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Black
RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Black - Image 2

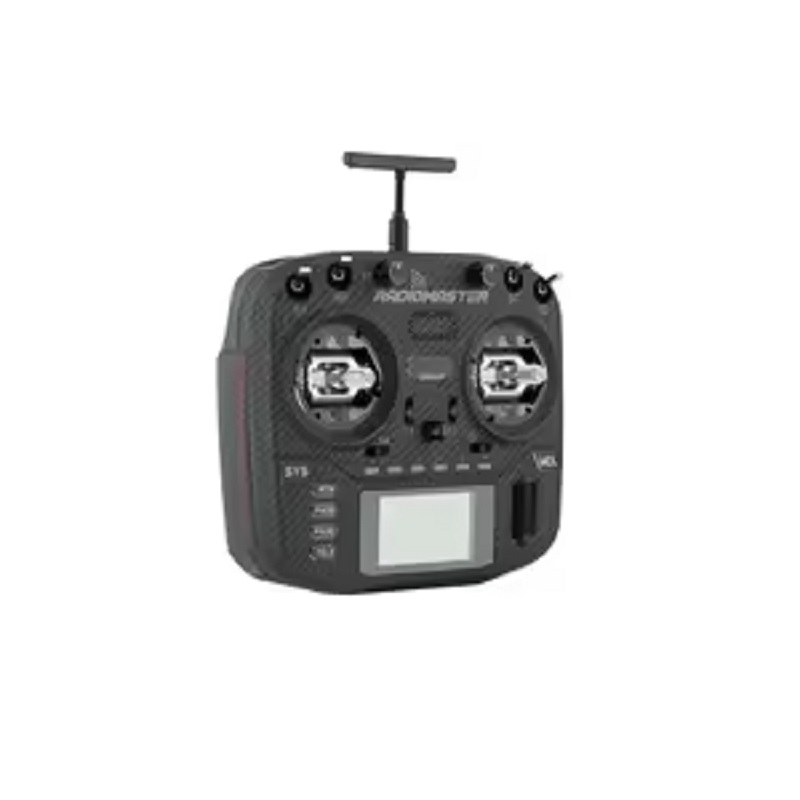

RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Black - Image 3
SKU: DRFC-3381
📋 GST Invoice Available

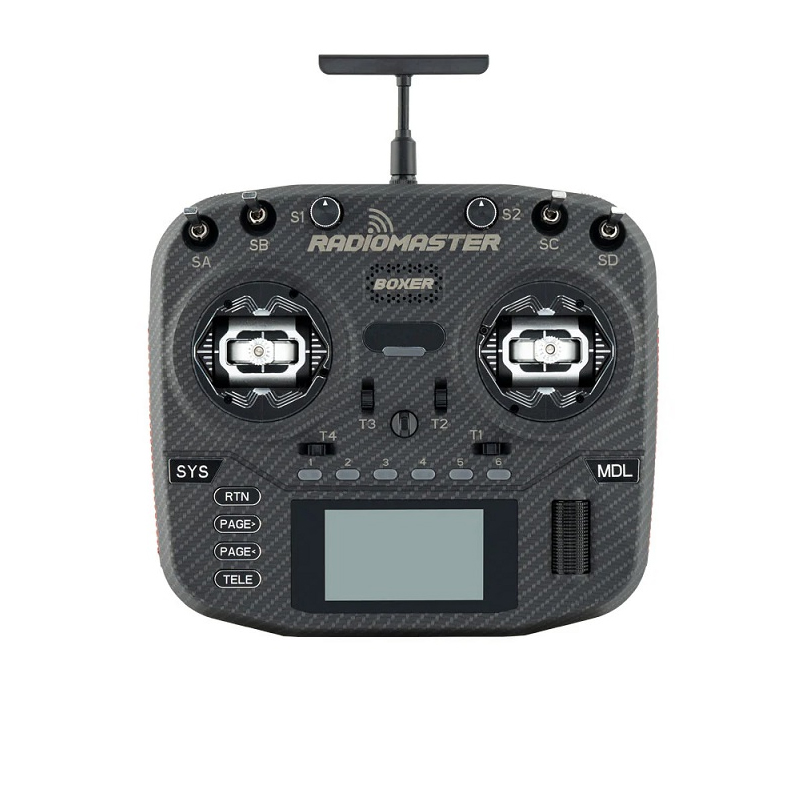

RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Black

₹26,469.00 (Inclusive of all taxes)
Out of Stock

The RadioMaster Boxer Max (M2) is a high-performance ELRS 2.4GHz radio transmitter featuring CNC AG01 Hall-effect gimbals, EdgeTX firmware, and a built-in cooling fan, designed for FPV drone pilots and RC enthusiasts requiring precise, long-range control.

Features

  • Integrated 2.4GHz ExpressLRS module with adjustable RF output and 1000Hz refresh rate.
  • CNC-machined AG01 Hall-effect gimbals and upgraded CNC buttons/roller for premium tactile feedback.
  • Powered by EdgeTX firmware on an STM32F407VGT6 processor for extensive model and telemetry support.
  • Large battery compartment supports 2S LiPo or dual 18650 cells for extended 20+ hour operation.
  • Includes internal cooling fan (ELRS version), QC3.0 fast charging, and a JR-compatible external module bay.

Out of stock

Description

The RadioMaster Boxer Max (M2) ELRS transmitter combines robust hardware with open-source software for a versatile control platform. Its carbon-fiber patterned case houses an STM32F407VGT6 MCU running EdgeTX, providing 16 channels and deep integration with ExpressLRS for low-latency, long-range RF links. The internal ELRS backpack features a cooling fan to maintain stable performance during high-power, high-refresh-rate operation.

Ergonomics are prioritized with adjustable-length CNC metal folding handles, replaceable leather grips, and a redesigned low-profile switch layout. The oversized battery bay and QC3.0 fast-charging circuit support intensive flying sessions, while the standardized JR module compartment ensures compatibility with a wide range of external RF systems like Crossfire or FrSky.

Key Features

  • AG01 CNC Hall-Effect Gimbals: Precision-machined aluminum gimbals with magnetic sensors for smooth, center-hold-free stick control and exceptional durability.
  • High-Performance ELRS Backpack: Internal 2.4GHz ExpressLRS module supports up to 1000Hz packet rate with adjustable RF power output and integrated active cooling.
  • EdgeTX Firmware Platform: Pre-installed open-source firmware offers unlimited model memory, advanced mixing, Lua scripting, and seamless updates via EdgeTX Companion.
  • Extended Battery & Charging System: Accommodates large 2S LiPo packs or dual 18650 cells; features QC3.0 fast-charging via USB-C for rapid field turnaround.
  • Premium Build & Modular Design: Carbon-fiber textured case, CNC metal buttons/roller, adjustable folding stand, and interchangeable grip panels for personalized ergonomics.
  • Comprehensive Connectivity: Standard JR external module bay, external power slots, USB-C data/power port, and a microSD card slot for sound packs and firmware.
  • Complete Protection & Accessories: Includes signature hard carry case, gimbal protectors, screen protector, neck strap, and all necessary mounting hardware.

Applications

  • Primary transmitter for long-range FPV drone builds utilizing ExpressLRS 2.4GHz receivers.
  • High-performance control for 5-inch and larger racing/freestyle drones requiring low-latency, high-refresh-rate links.
  • Versatile platform for fixed-wing, helicopter, and other RC models via the JR-compatible external module bay.
  • Ideal for pilots who value customizable ergonomics and extended flight sessions with large battery capacity.
  • Suitable for both beginner and advanced users leveraging the extensive capabilities of the EdgeTX ecosystem.

Technical Specifications

Item TypeRadio Controller
ColorBlack
Internal RF ProtocolExpressLRS 2.4GHz
Frequency Range2.400GHz - 2.480GHz
Cooling SystemBuilt-in Fan (ELRS Version)
MCUSTM32F407VGT6 (1MB Flash, 192KB RAM)
FirmwareEdgeTX (Transmitter) / ELRS (RF Module)
Max Channels16 (Receiver Dependent)
Voltage Input6.6V - 8.4V DC
Battery Compatibility7.4V 2S LiPo or Two 3.7V 18650 Cells (Not Included)
Display128 x 64 Monochrome LCD
Gimbal TypeAG01 CNC Hall-Effect Gimbal
External Module BayJR / FrSky / Crossfire Compatible
Upgrade MethodUSB-C / SD Card via EdgeTX Companion
ChargingQC3.0 Fast Charging (2.0A Max)
Shipping Weight1.308 kg
Shipping Dimensions24 x 21 x 11 cm

Frequently Asked Questions

What batteries does the RadioMaster Boxer Max use, and what is its typical operating duration?

The Boxer Max accepts a 7.4V 2S LiPo pack or two standard 3.7V 18650 lithium-ion cells (not included). With a large-capacity 2S 6200mAh LiPo, it can provide up to 20 hours of continuous operation. The integrated QC3.0 fast-charging circuit allows for quick recharging via the USB-C port.

Is the internal ELRS module's RF power adjustable, and does it have a cooling fan?

Yes, the built-in ExpressLRS 2.4GHz module features adjustable RF output power, configurable via the EdgeTX Lua script or the ExpressLRS web interface. The ELRS version of the Boxer Max includes a dedicated internal cooling fan to ensure stable performance during high-power, high-refresh-rate (up to 1000Hz) operation.

Can I use other long-range systems like TBS Crossfire with this transmitter?

Absolutely. The Boxer Max includes a standard JR-style external module bay compatible with systems like TBS Crossfire, FrSky R9, or other JR-formatted modules. The transmitter can supply power to the external module via dedicated slots in the battery cover, allowing seamless integration of additional RF protocols.

How do I update the EdgeTX firmware and the ExpressLRS module firmware?

EdgeTX firmware is updated via the EdgeTX Companion PC software over a USB-C connection. The internal ExpressLRS module firmware can be updated using the ExpressLRS Configurator, either wirelessly via Wi-Fi or via a passthrough flash method through the EdgeTX interface. Both processes are well-documented by the respective open-source communities.

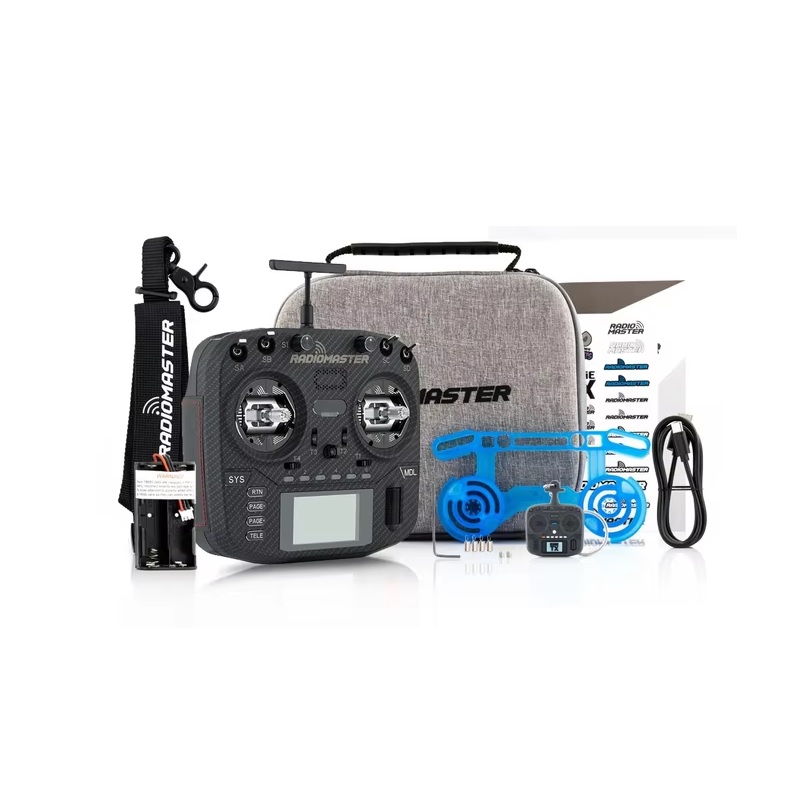

Package Includes

  • 1 x BOXER Max Radio Controller (Black)
  • 1 x Signature Hard Carry Case
  • 1 x T-Shaped Antenna
  • 1 x USB-C Cable
  • 1 x Gimbal Protector
  • 1 x 1.5mm Allen Key
  • 2 x M4*4 Screws
  • 4 x Low Tension Springs
  • 1 x Set of Stickers
  • 1 x User Manual
  • 1 x 18650 Battery Tray (Batteries Not Included)
  • 1 x RadioMaster Neck Strap
  • 1 x Boxer Key Chain
  • 1 x Screen Protector

Additional Information

Weight 1.308 kg
Dimensions 24 × 21 × 11 cm

Related Products

Out of Stock

Matek F405-WTE Flight Controller STM32F405

9,589.00
Learn More
Out of Stock

RadioMaster Boxer Crush Radio Controller (M2) ELRS Version - Frost White

28,599.00
Learn More
Out of Stock

AI-Thinker Ai-WB2-32S Wi-Fi & BLE 5.0 Dev Kit

409.00
Learn More
Out of Stock

RadioMaster Boxer 2.4GHz Radio Controller - ELRS Version

19,949.00
Learn More
Out of Stock

RadioMaster Zorro ELRS Radio Transmitter without Receiver

23,259.00
Learn More
Out of Stock

RadioMaster TX16S MKII HALL V4.0 ELRS Radio

33,529.00
Learn More
Out of Stock

Jumper T20 Gemini Radio Controller

15,049.00
Learn More
Out of Stock

RadioMaster Boxer 2.4GHz Radio Controller (M2) - ELRS Version - Transparent

24,049.00
Learn More
Out of Stock

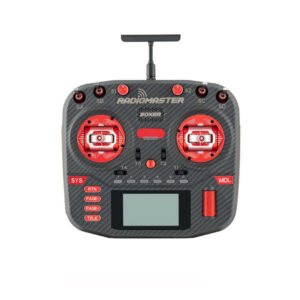

RadioMaster Boxer Max Radio Controller (M2) - ELRS Version - Red
