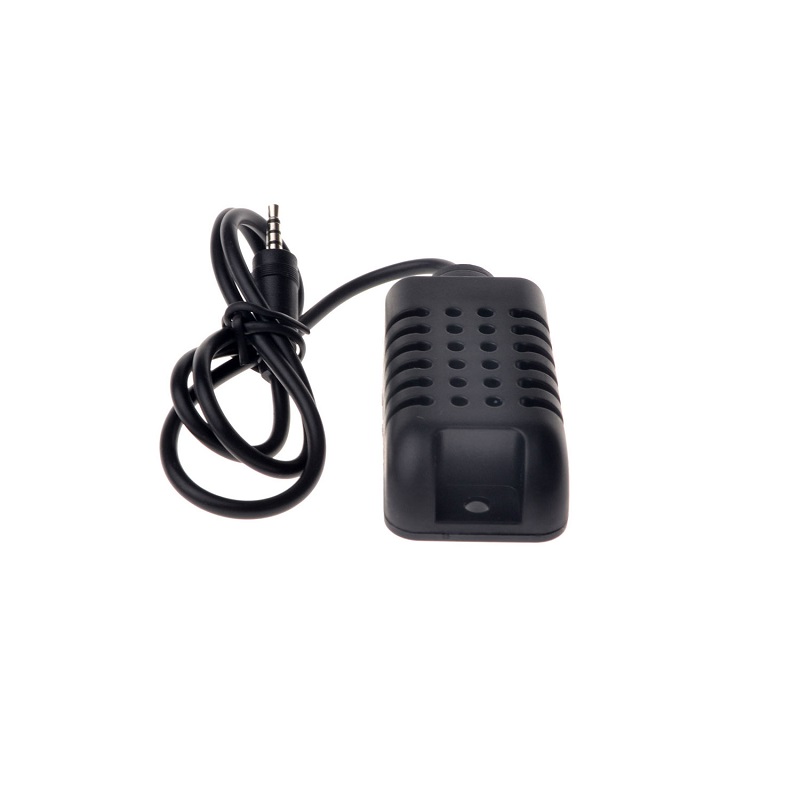

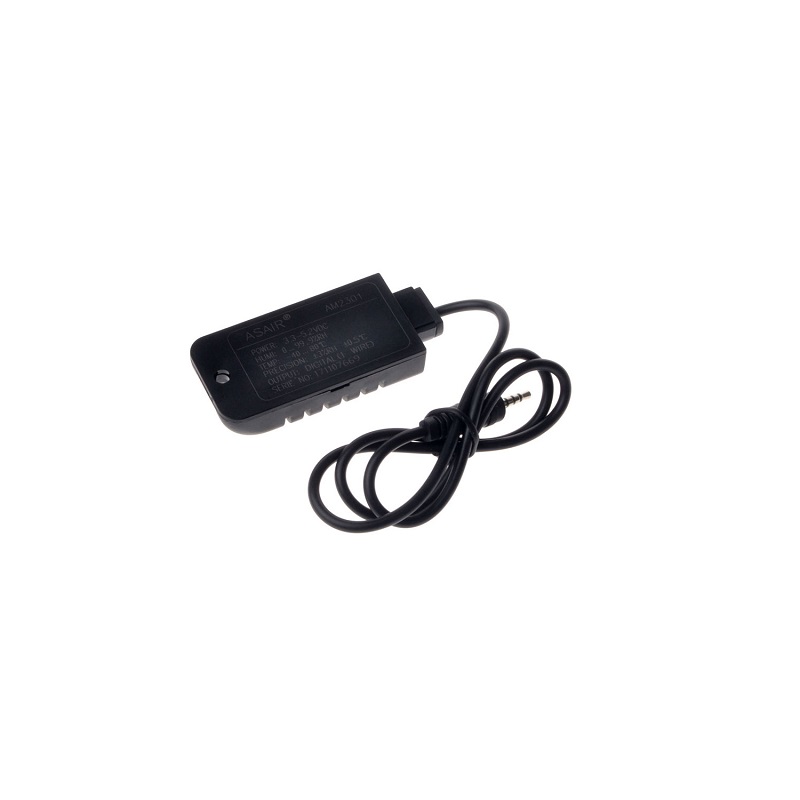

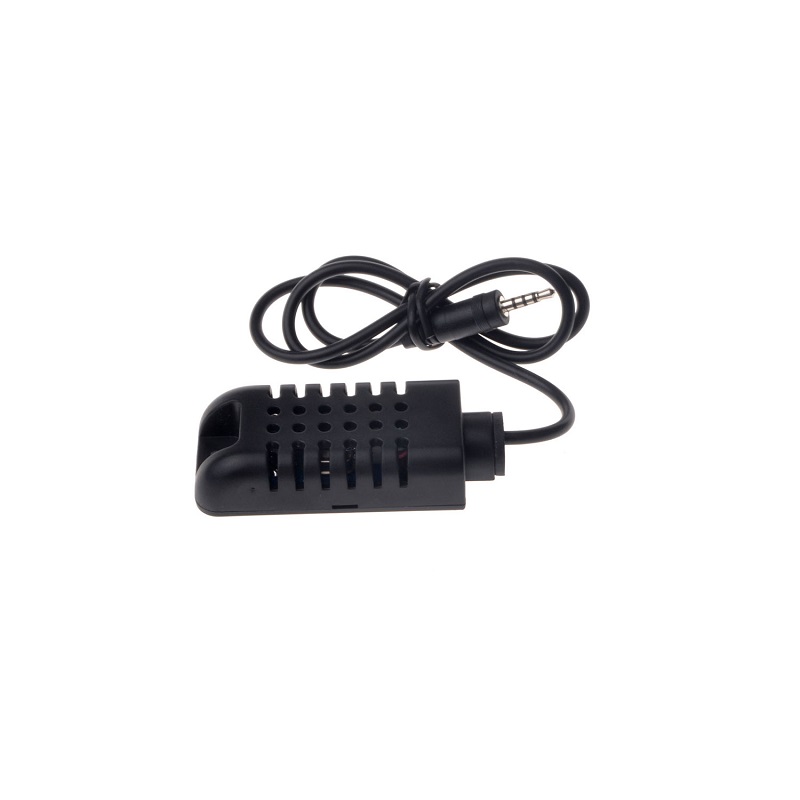

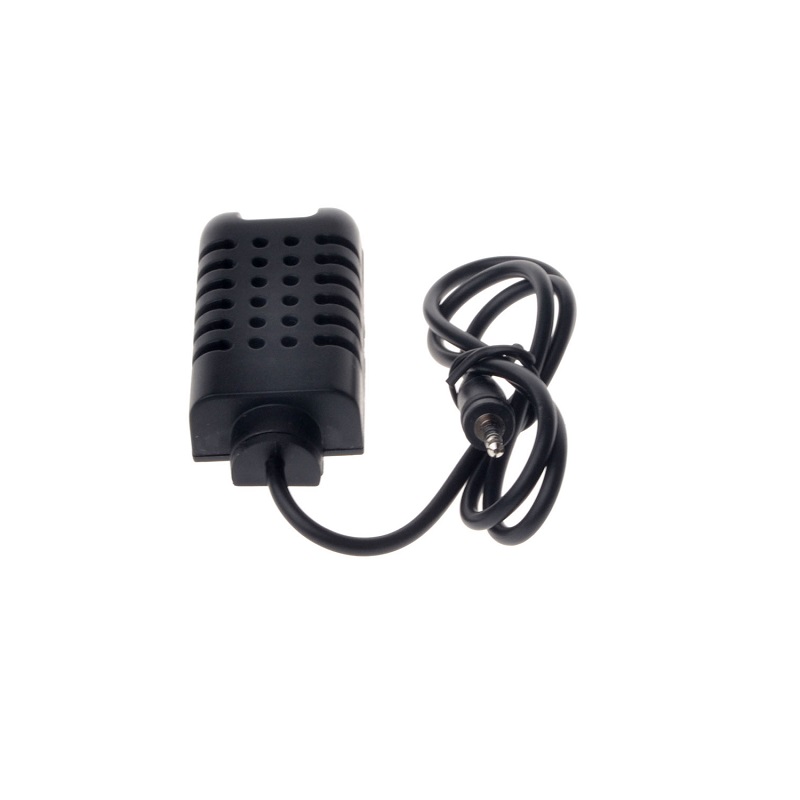

Sonoff AM2301 Temperature & Humidity Sensor for TH10/TH16 - 90-250V AC, 10A/16A
Sonoff AM2301 Temperature & Humidity Sensor for TH10/TH16 - 90-250V AC, 10A/16A - Image 2
Sonoff AM2301 Temperature & Humidity Sensor for TH10/TH16 - 90-250V AC, 10A/16A - Image 3
Sonoff AM2301 Temperature & Humidity Sensor for TH10/TH16 - 90-250V AC, 10A/16A - Image 4
SKU: SENS-3464
📋 GST Invoice Available

Sonoff AM2301 Temperature & Humidity Sensor for TH10/TH16 - 90-250V AC, 10A/16A

₹389.00 (Inclusive of all taxes)
Out of Stock

The Sonoff AM2301 is a wired temperature and humidity sensor designed for integration with the Sonoff TH10 and TH16 smart WiFi switches. It provides accurate environmental monitoring for remote control and automation of connected appliances via the eWeLink app, supporting 90-250V AC input and up to 16A load switching.

Features

  • Direct compatibility with Sonoff TH10/TH16 smart WiFi switches for appliance control.
  • Monitors temperature (-40°C to 80°C) and humidity (0-99.9% RH) with capacitive/resistive sensing.
  • Enables preset automation rules to turn appliances on/off based on environmental thresholds.
  • Supports high-power loads: 10A (2200W) or 16A (3500W) models available.
  • Integrates with eWeLink app for remote monitoring, scheduling, and smart scene creation.

Out of stock

Description

The Sonoff AM2301 sensor employs a capacitive element for humidity measurement and a resistive element for temperature sensing, delivering reliable environmental data to the host TH10/TH16 controller. This wired sensor connects directly to the switch’s terminals, enabling precise monitoring for automation triggers within residential, HVAC, and light industrial settings.

The primary function is to provide the TH10/TH16 switch with the local temperature and humidity readings required to execute user-defined automation rules. When conditions fall within a preset range, the switch can automatically power connected heating, cooling, dehumidification, or ventilation equipment. The system operates on standard 90-250V AC mains power and is designed for in-wall or enclosure mounting.

Key Features

  • High-accuracy capacitive humidity sensor and resistive temperature sensor.
  • Seamless integration with Sonoff TH10/TH16 WiFi smart switches for automated appliance control.
  • Configurable temperature and humidity thresholds for trigger-based on/off automation.
  • Robust 10A or 16A relay options for controlling high-power heating, cooling, or ventilation loads.
  • Full remote monitoring and control via the eWeLink iOS/Android application.
  • Supports advanced scheduling with countdown, single, and repeat timing tasks.
  • Enables creation of smart scenes to联动 other compatible eWeLink devices.
  • Durable wired connection with a 49 cm cable for flexible sensor placement.

Applications

  • Automated control of space heaters, air conditioners, or fans based on room temperature.
  • Dehumidifier or humidifier control in basements, greenhouses, or storage areas.
  • Ventilation system automation in server rooms, workshops, or agricultural buildings.
  • Remote monitoring of temperature-sensitive environments like wine cellars or pet habitats.
  • Integration into DIY smart home systems for energy-saving climate management.

Technical Specifications

Item TypeSensor
Model NameAM2301 Temperature and Humidity Sensor
Compatible ControllersSonoff TH10A, TH16A
Input Voltage90 to 250 V AC
Max Input Current10A / 16A (Model Dependent)
Max Power (10A Model)2200W
Max Power (16A Model)3500W
Humidity Sensing PrincipleCapacitive
Temperature Sensing PrincipleResistive
Humidity Measurement Range0 to 99.9% RH
Temperature Measurement Range-40°C to 80°C
Operating Temperature-40°C to 80°C
Sensor Cable Length49 cm
Sensor Dimensions (L x W)50 mm x 25 mm
Sensor Weight24 g
Communication/ControleWeLink WiFi App (iOS/Android)
Waterproof RatingNot Waterproof

Frequently Asked Questions

What is the difference between the TH10 and TH16 models, and which sensor do they use?

Both the Sonoff TH10 and TH16 are WiFi smart switches designed for appliance control based on temperature and humidity inputs. The primary difference is their relay current rating: the TH10 supports up to 10A (2200W), while the TH16 supports up to 16A (3500W). Both models use the same wired AM2301 temperature and humidity sensor included in this package to provide the environmental data for automation triggers.

How do I connect and configure the AM2301 sensor with my Sonoff TH switch?

The AM2301 sensor connects directly to the dedicated sensor terminals on the Sonoff TH10 or TH16 switch. After wiring the switch to mains power and your appliance, you must configure the device using the eWeLink mobile app. Within the app, you can set temperature and humidity thresholds, create automation rules to turn the connected appliance on/off, set schedules, and monitor real-time sensor readings remotely.

Can the AM2301 sensor be used outdoors or in wet locations?

No, the AM2301 sensor is explicitly listed as 'Not Waterproof.' It is designed for indoor use in dry environments. For applications requiring monitoring in damp, humid, or outdoor conditions, the sensor must be placed within a protective, sealed enclosure that allows for air exchange while preventing direct water ingress.

What types of appliances can I control with the Sonoff TH10/TH16 and this sensor?

You can control any electrical appliance within the switch's power rating, such as space heaters, portable air conditioners, fans, dehumidifiers, humidifiers, heat lamps, or ventilation fans. The system is ideal for automating climate control equipment. The automation is based on the sensor readings: for example, a heater can turn on when the temperature drops below a set point and turn off when it rises above another.

Package Includes

  • 1 x AM2301 Temperature and Humidity Sensor (Not Waterproof)

Additional Information

Weight 0.024 kg
Dimensions 5 × 2.5 cm
