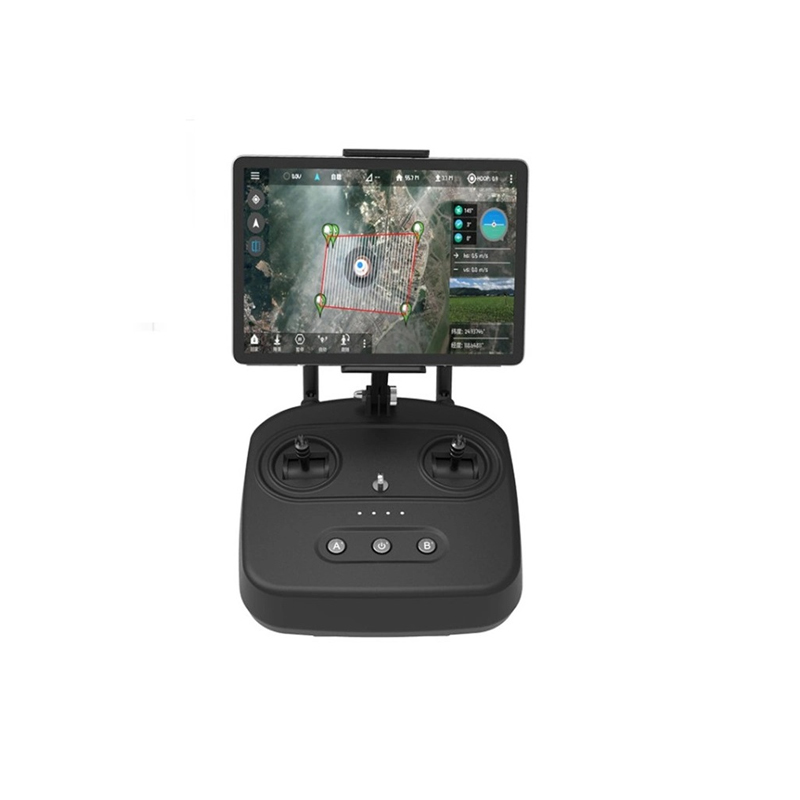

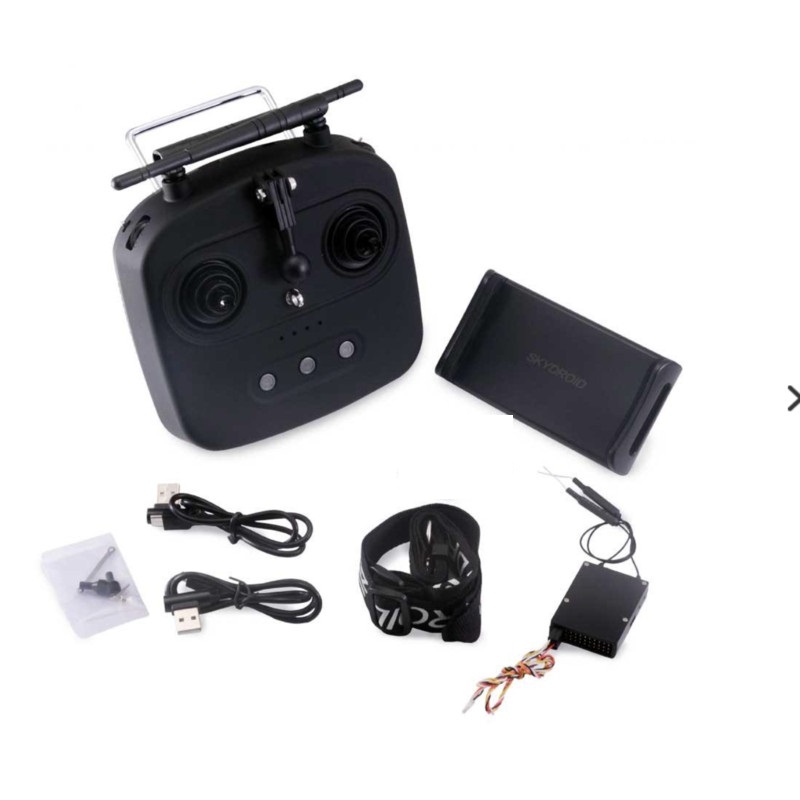

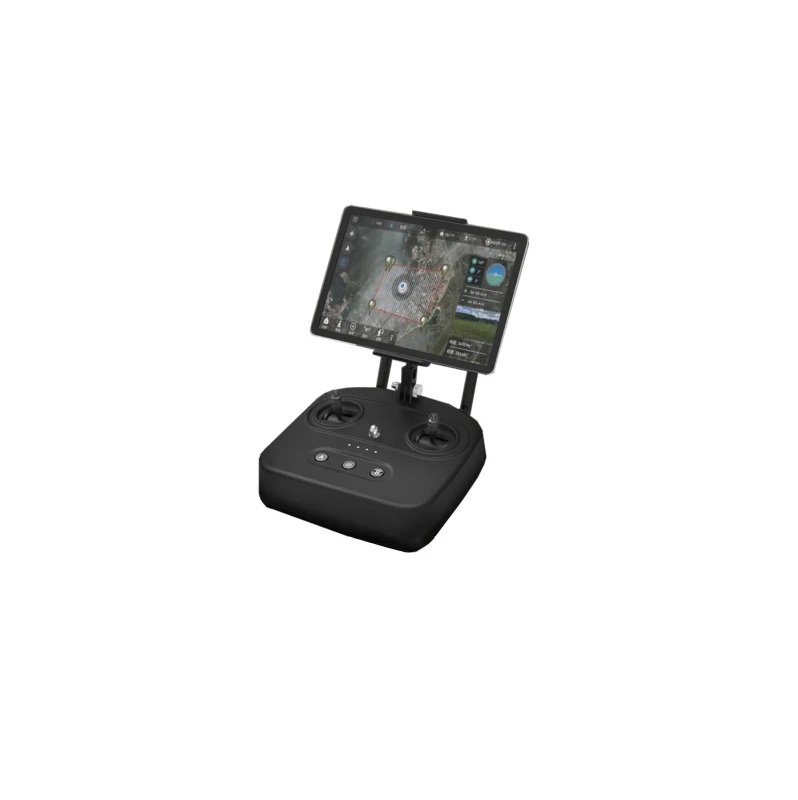

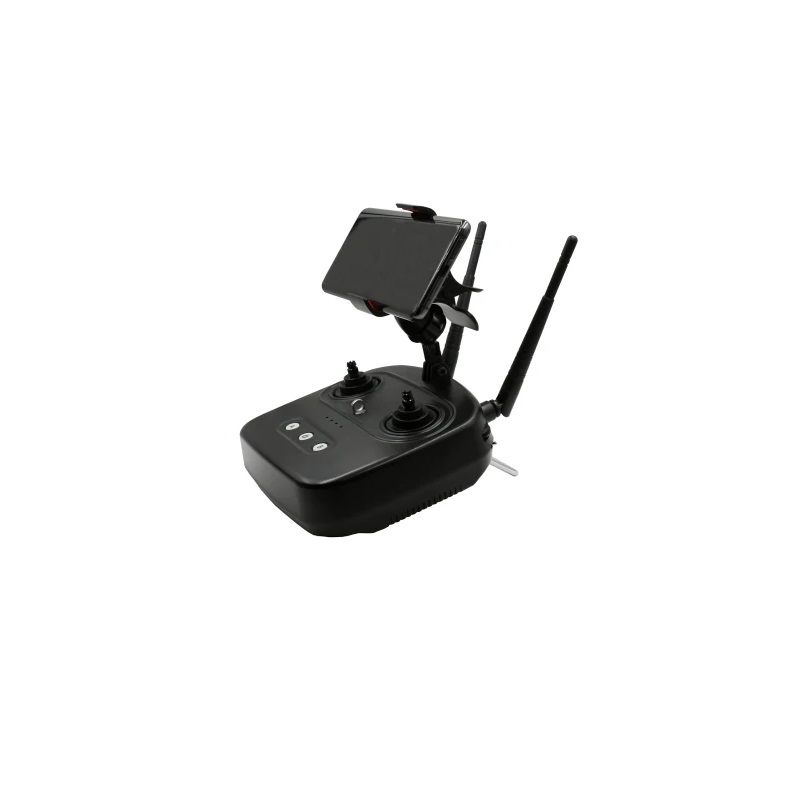

Skydroid T10 Remote Control w/ DCAM R10 Receiver 4-in-1 - 10km Digital Map Transmission
The Skydroid T10 is a 10-channel remote control system featuring integrated 10km digital map transmission and a 4-in-1 DCAM R10 receiver. Designed for professional UAV applications, it operates on 2.4GHz FHSS technology and is compatible with Pixhawk autopilots via the Tower, QGroundControl, and other mission planning apps.
Features
- 10-channel 2.4GHz FHSS transmitter with dual-antenna, dual-RF module design for stable long-range control.
- Integrated digital video transmission up to 10km and data link telemetry up to 20km.
- 4-in-1 DCAM R10 receiver supports SBUS, PPM, PWM, and serial outputs for flexible integration.
- Full parameter adjustment via Bluetooth-connected mobile app (Tower, QGC, Jiyi).
- Extended 20+ hour endurance powered by two user-supplied 18650 batteries.
Out of stock
The Skydroid T10 remote control system merges robust RF control with advanced telemetry and video transmission capabilities tailored for agricultural, mapping, and industrial UAV platforms. Its core employs Frequency Hopping Spread Spectrum (FHSS) modulation across the 2.400–2.483GHz band, ensuring interference-resistant communication critical for plant protection and surveying missions.
Engineered for system integration, the T10 transmitter pairs with the compact DCAM R10 4-in-1 receiver, providing multiple protocol outputs including SBUS and PPM for direct connection to flight controllers like Pixhawk. The unit’s integrated data link supports real-time telemetry and waypoint planning through companion mobile applications, enabling complex autonomous flight operations directly from the ground station.
Additional Information
| Weight | 0.75 kg |
|---|---|
| Dimensions | 21 × 19 × 9 cm |
