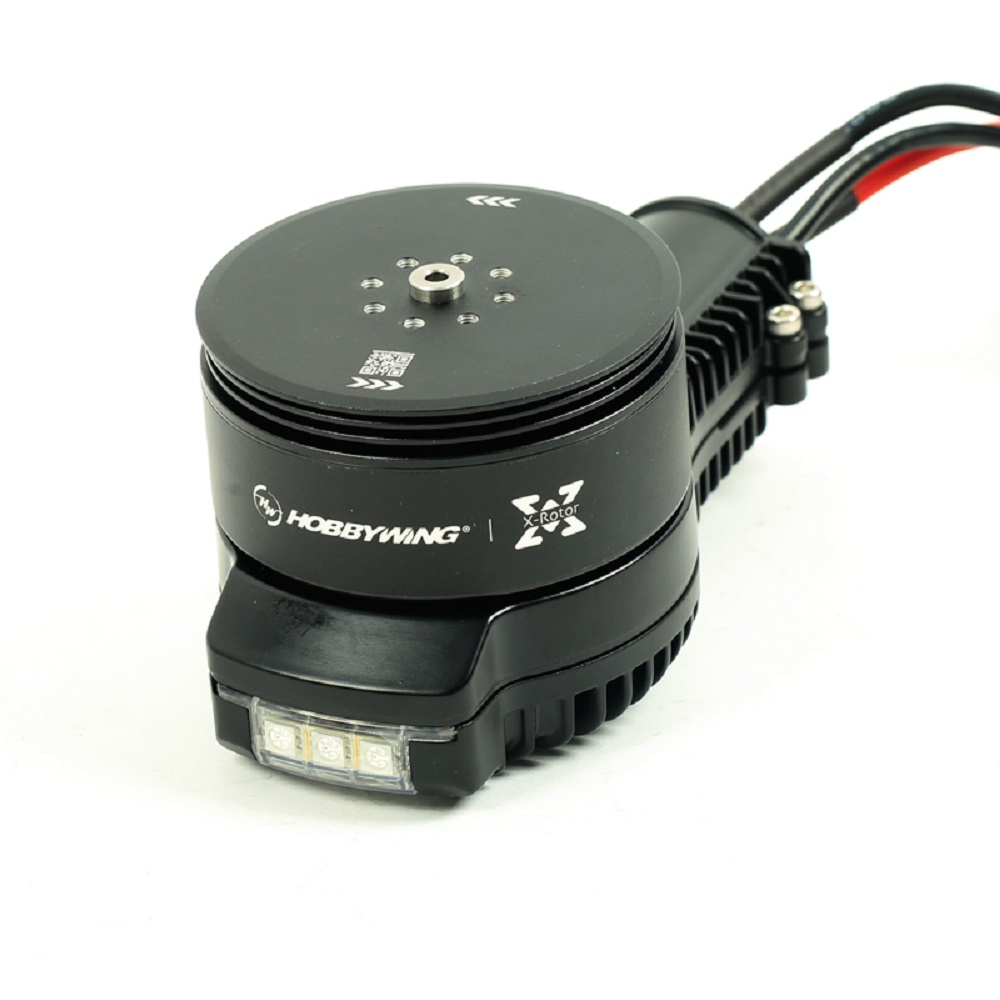

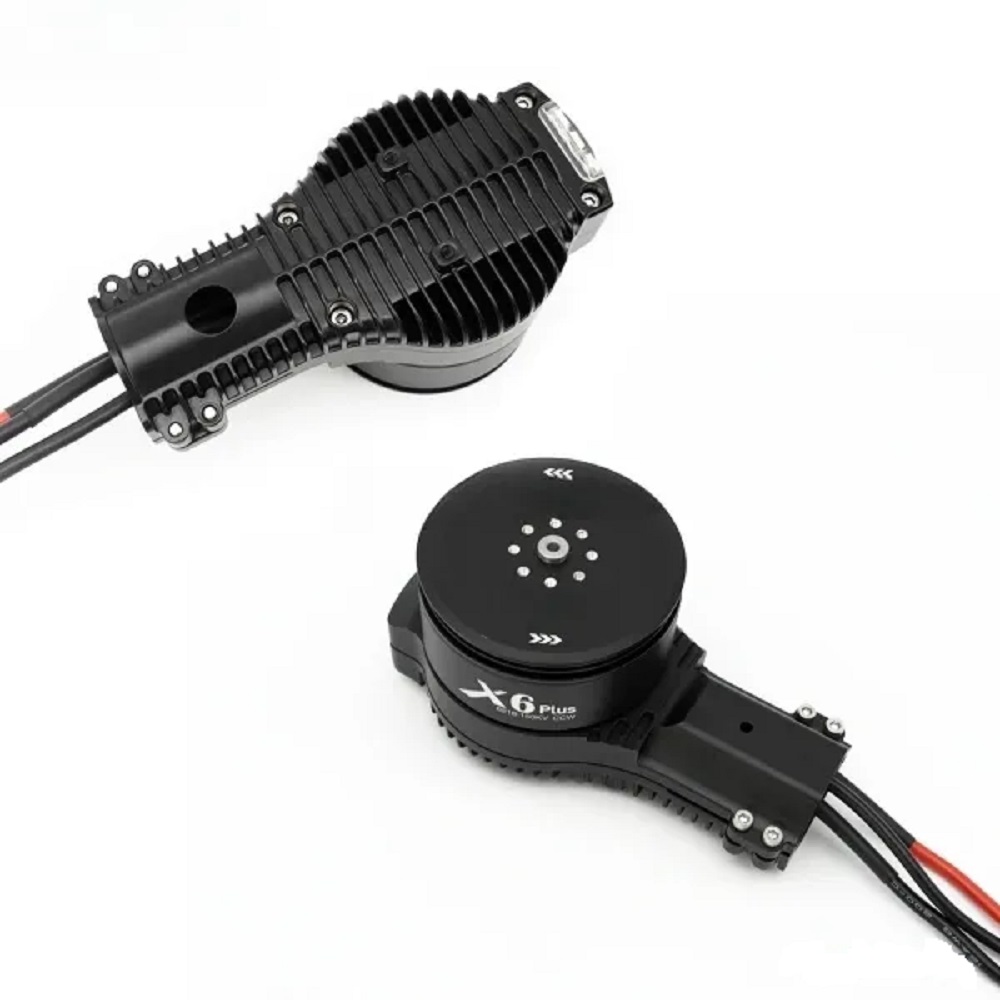

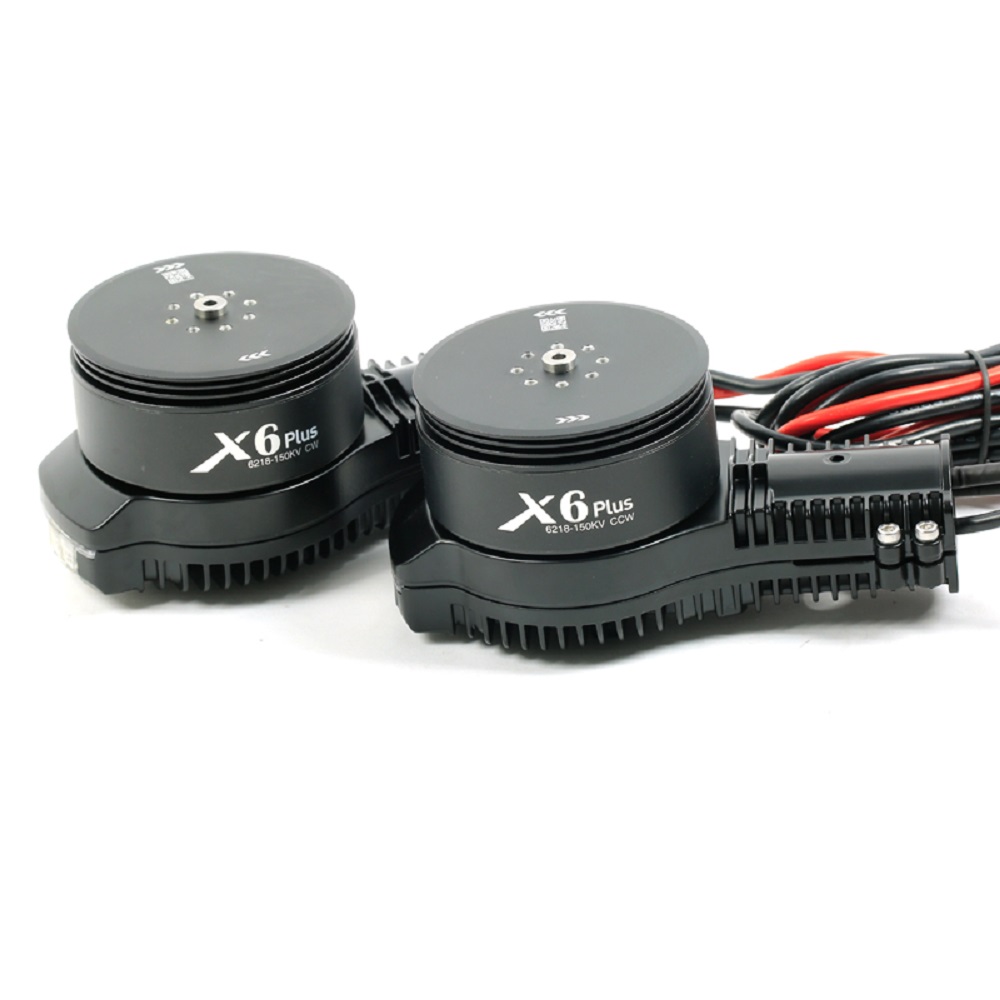

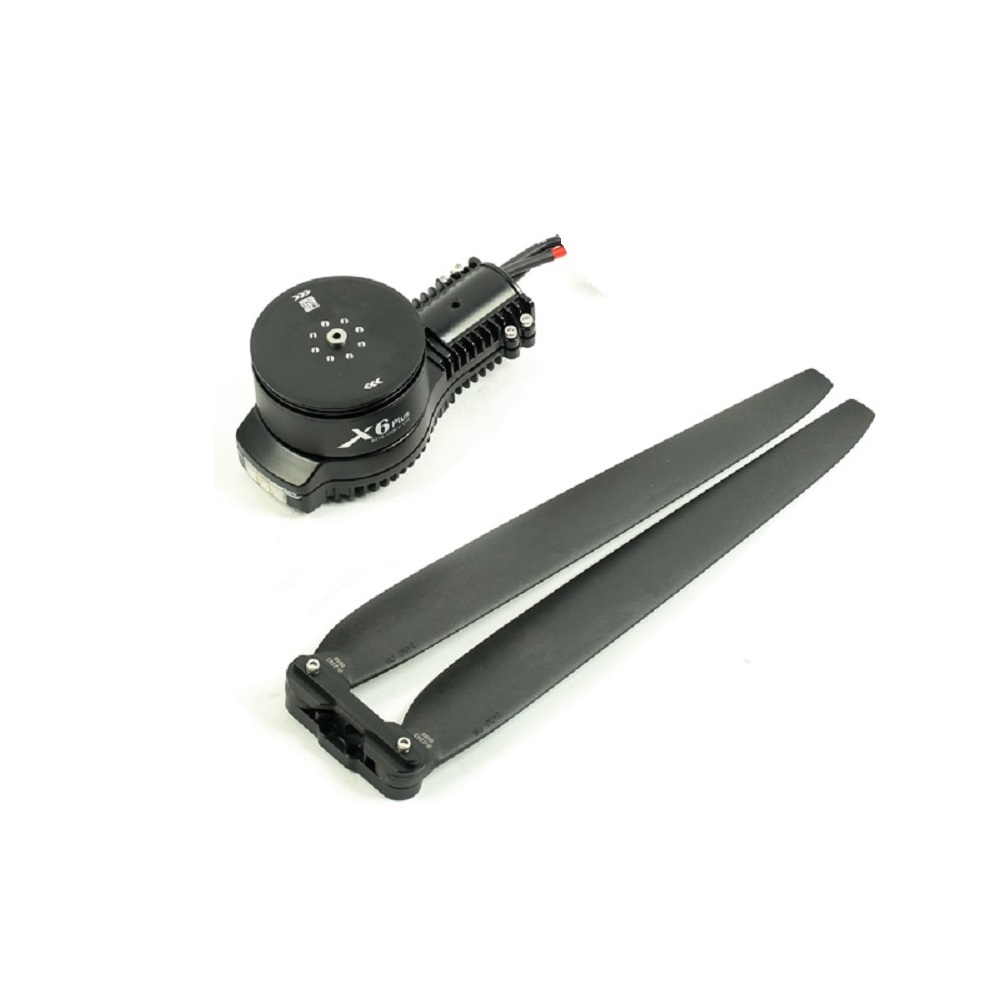

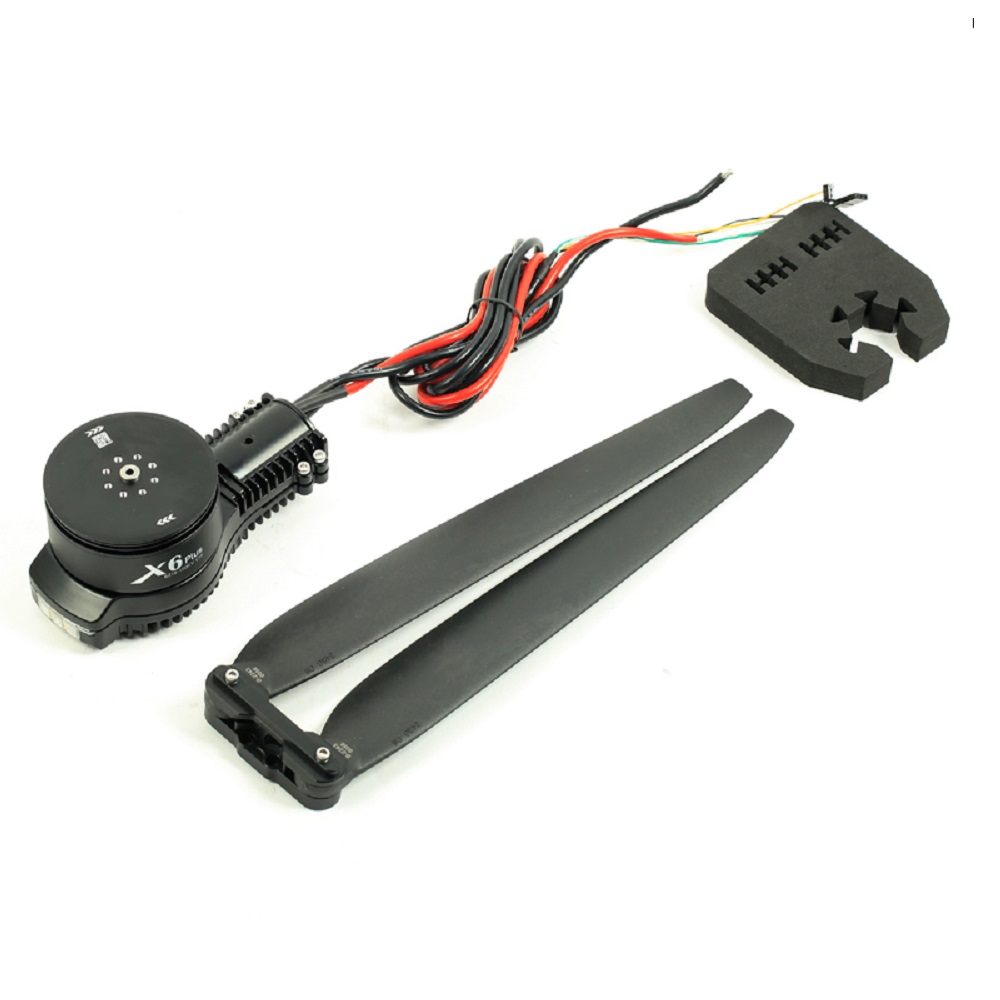

Hobbywing XRotor X6 Plus 150KV Motor & 2480 Prop CW
The Hobbywing XRotor X6 Plus is an integrated brushless motor and 2480 folding propeller combo designed for heavy-lift agricultural and industrial drones. Featuring a 150KV motor and 12-14S LiPo compatibility, this CW rotation system delivers robust thrust and efficient propulsion for demanding UAV applications.
Features
- Integrated 150KV brushless motor with 2480 folding propeller, pre-configured for CW rotation.
- Optimized for 12-14S LiPo power systems, delivering up to 11.8kg/axis of thrust.
- IPX6 waterproof and dustproof design ensures reliable operation in harsh environments.
- Advanced FOC ESC algorithm and multiple protections for enhanced system stability and safety.
- Ideal for agricultural and industrial drones requiring high load capacity (3.5-5.5kg/axis recommended).
Out of stock

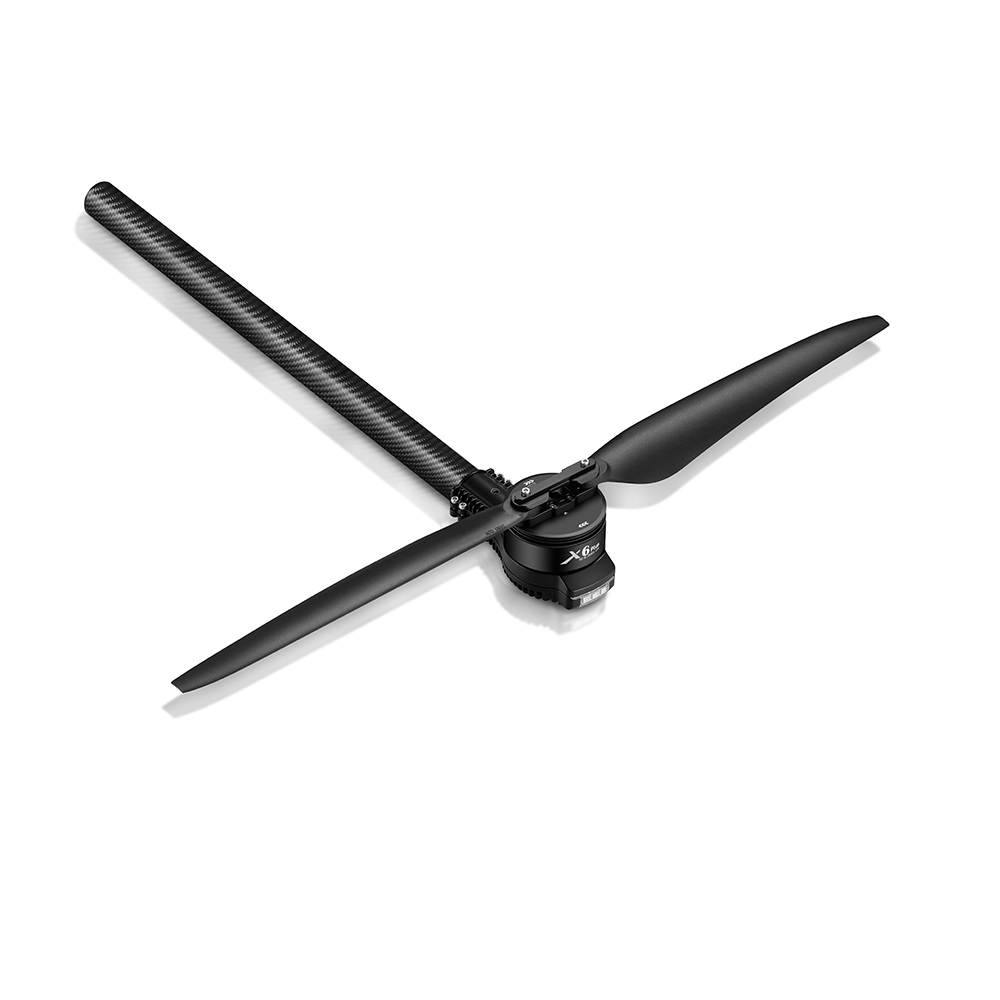

The XRotor X6 brushless power system is specifically engineered for high-payload agricultural and industrial drone platforms, capable of supporting a load of 3 to 5kg per axis. This robust propulsion unit integrates a powerful motor with a large 2480 folding propeller, delivering a substantial thrust of up to 11.9kg. Its design ensures seamless integration with standard 28mm or 30mm carbon fiber tube arms, facilitating straightforward installation into various airframe configurations.
Durability is a cornerstone of the XRotor X6 Plus, boasting an IPX6 waterproof and dustproof rating. This environmental protection makes it highly resilient against strong jets of water, pesticides, salt spray, sand, dust, mud, and extreme temperatures, ensuring consistent performance in challenging operational conditions. The system incorporates an advanced FOC (Field-Oriented Control) algorithm, which optimizes the interaction between the ESC and motor for superior balance and efficiency.
Furthermore, the XRotor X6 Plus is equipped with comprehensive safety features, including power-on self-detection, abnormal voltage protection, over-current safeguarding, and motor lock-up detection. These integrated protections enhance reliability and prevent damage under unforeseen circumstances. The system also supports real-time data output, providing critical operational insights for monitoring and maintenance.
Additional Information
| Dimensions | 30 × 20 × 10 cm |
|---|
