SIYI MK32 HDMI Enterprise Handheld Ground Station Smart Controller COMBO

₹93,629.00 (Inclusive of all taxes)
Out of Stock

The SIYI MK32 HDMI Enterprise Handheld Ground Station Smart Controller COMBO is a professional-grade remote control system featuring a high-resolution touchscreen, HDMI video input/output, and 16-channel control, designed for seamless integration with Pixhawk, APM, and other UART-based flight controllers.

Features

  • High-resolution touchscreen interface for real-time telemetry and video monitoring
  • HDMI connectivity for live video streaming and external display output
  • 16-channel control with support for Pixhawk, APM, and UART-based flight controllers
  • Includes HM30 Air Unit, long-range antennas, and comprehensive cabling for rapid deployment
  • Powered by a 30W PD fast charger for extended field operation

Out of stock

Description

The SIYI MK32 is engineered as a complete handheld ground control station for professional UAV operations. Its integrated system combines a robust transmitter with a smart display, providing a centralized hub for piloting, telemetry visualization, and high-definition video feed management.

Built for enterprise and industrial applications, the controller features an ergonomic design and a suite of connectivity options including HDMI, Ethernet, and multiple telemetry ports. The included HM30 Air Unit and optimized antenna array ensure reliable, long-range command and video downlink, making it suitable for mapping, inspection, and cinematography missions.

Key Features

  • Advanced touchscreen control with customizable UI for real-time drone monitoring and parameter adjustment
  • HDMI input/output ports for streaming live FPV video to external monitors or recording devices
  • 16-channel RF system providing precise control and expanded payload command capabilities
  • Direct compatibility with Pixhawk, APM, and any flight controller featuring a UART telemetry output
  • Integrated power module supports direct connection to 4S-18S LiPo batteries for field powering
  • Robust construction with ergonomic grips and a swivel hook strap for secure handling during extended use
  • Complete kit includes HM30 Air Unit, long-range directional antennas, and all necessary interface cables
  • 30W USB-PD fast charging system ensures quick turnaround between operational sessions

Applications

  • Enterprise drone operations for mapping, surveying, and infrastructure inspection
  • Cinematography and professional aerial filming requiring high-definition video downlink and monitoring
  • Long-range UAV missions utilizing the included directional antennas for extended control link
  • Research and development platforms integrating with Pixhawk or ArduPilot autopilot systems
  • Payload management and control for specialized industrial or agricultural UAVs

Technical Specifications

Item TypeTransmitter / Handheld Ground Station
Model NumberMK32
Number of Channels16
Compatible Flight ControllersPixhawk, APM-based, or any with UART data link output
Video InterfaceHDMI Input/Output
Charging StandardUSB Power Delivery (PD) Fast Charge
Charger Output30W (Type-C, US Plug)
Shipping Weight2.535 kg
Shipping Dimensions33 x 22 x 13 cm

Frequently Asked Questions

What flight controllers is the SIYI MK32 compatible with?

The SIYI MK32 is directly compatible with Pixhawk-series and APM-based flight controllers, as well as any autopilot system that provides a standard UART serial telemetry output. The included cables facilitate easy connection for real-time data transmission and parameter tuning.

What is the purpose of the included HM30 Air Unit?

The HM30 Air Unit is the airborne transceiver module that pairs with the MK32 ground station. It handles the bidirectional transmission of control commands, telemetry data, and video feed from the drone back to the handheld controller's display and HDMI output.

How do I power the MK32 Ground Station in the field?

The station can be powered via its internal battery, which is recharged using the included 30W USB-PD charger. For extended operation, the included 4S-18S power module allows you to connect directly to a wide range of drone LiPo or Li-ion battery packs.

Can I output the live video feed to an external monitor or recorder?

Yes, the MK32 features an HDMI output port for streaming the live FPV video feed to external monitors, recording devices, or broadcast equipment. The kit also includes an HDMI input converter for the air unit to accommodate various video sources.

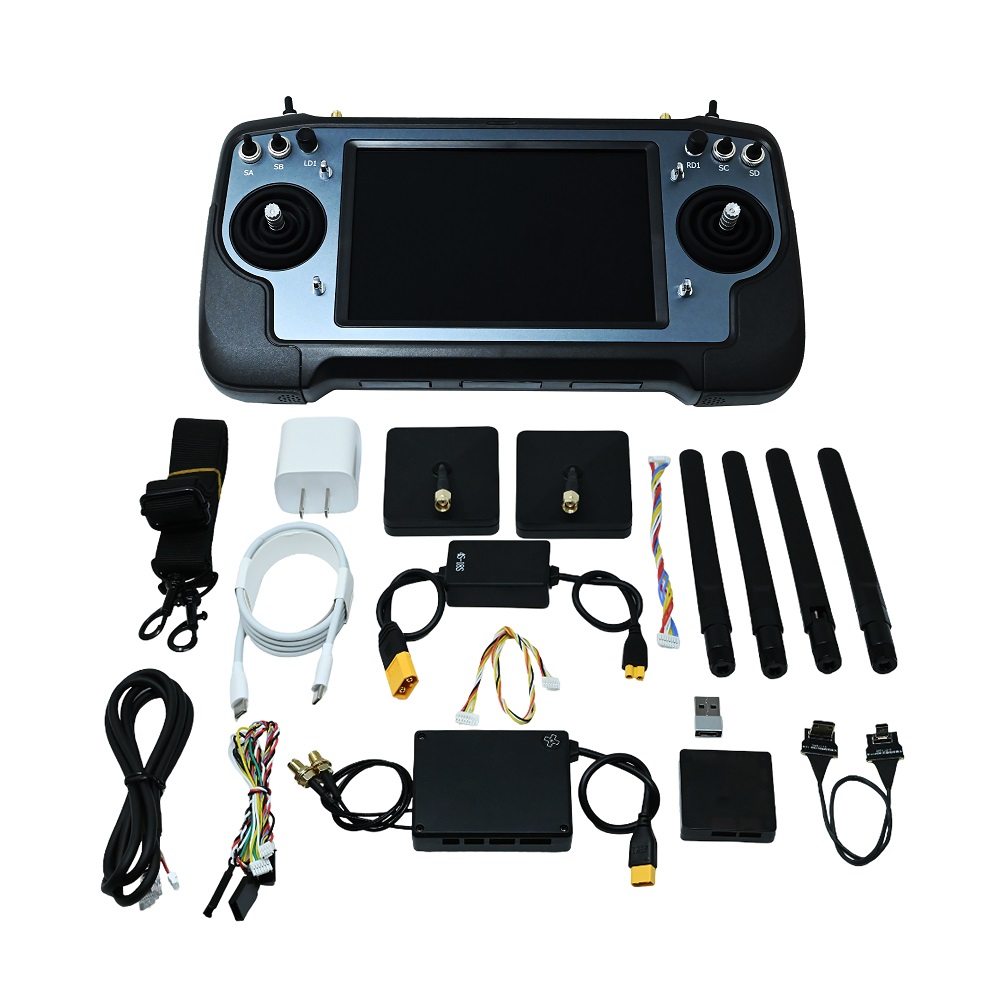

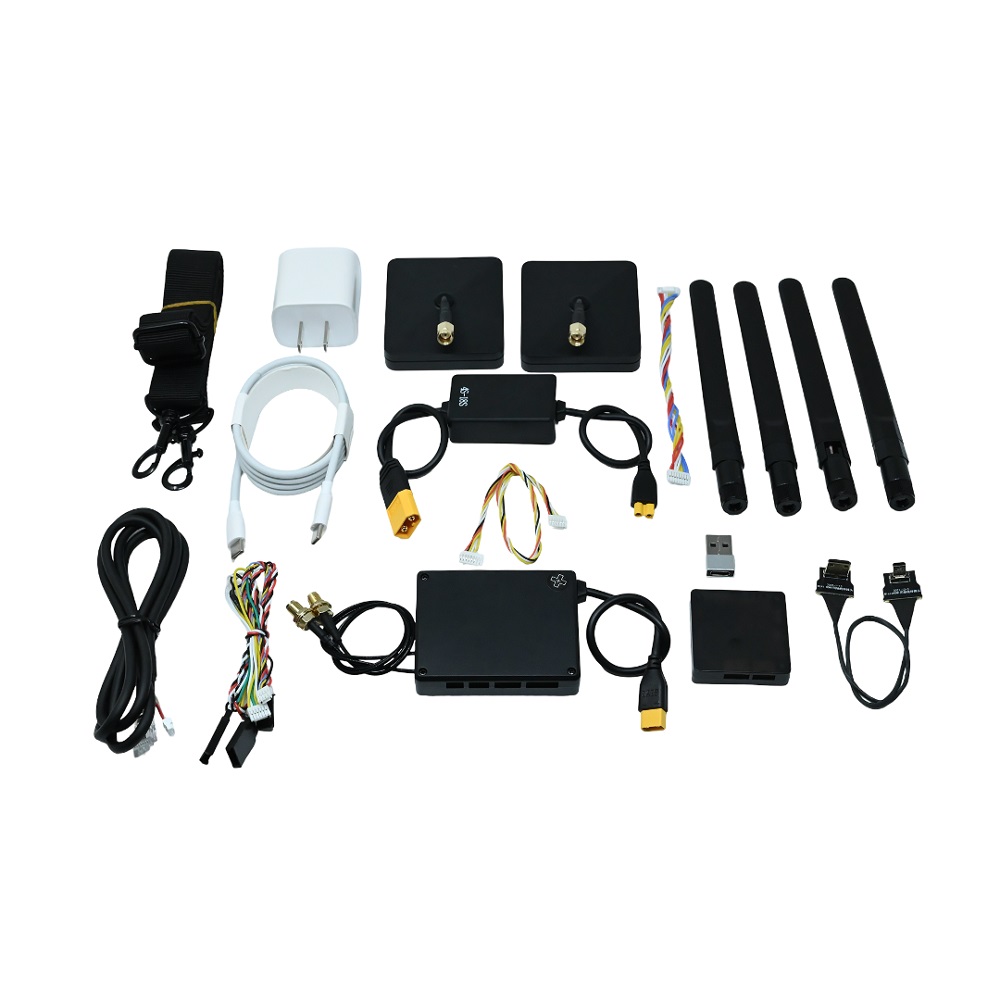

Package Includes

  • 1 x MK32 Ground Unit
  • 4 x Standard Omni Antenna
  • 2 x Long Range Antenna
  • 1 x HM30 Air Unit
  • 1 x 4S to 18S Power Module
  • 1 x PX4 / ArduPilot Flight Controller Telemetry Cable
  • 1 x Air Unit S.Bus Cable
  • 1 x Air unit Recording HDMI Input Converter
  • 1 x Strap with Swivel Hook
  • 1 x PWM Cable
  • 1 x Ethernet Cable
  • 1 x 30W PD Fast Charger (Type-C, US Plug)
  • 1 x PD Fast Charging Cable (Type-C to Type-C)

Additional Information

Weight 2.535 kg
Dimensions 33 × 22 × 13 cm
