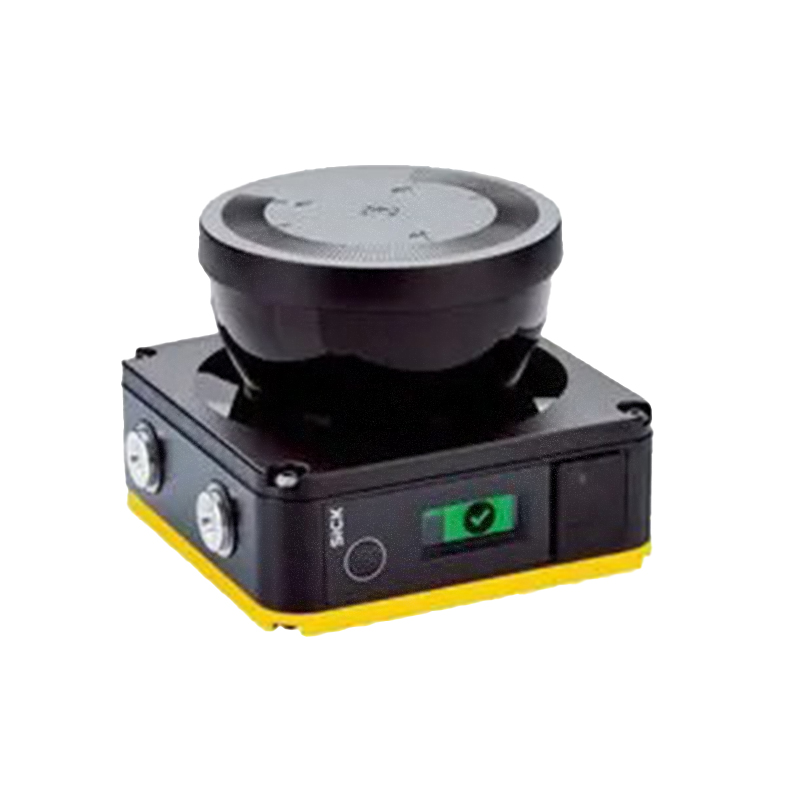

SICK NANS3-CAAZ30AN1 Safety Laser Scanner, 275° Beam Angle, 128 Field Pair, Type 3, SIL2, IP65, Sensing Range: 40m
The SICK NANS3-CAAZ30AN1 nanoScan3 Safety Laser Scanner provides SIL2/Type 3 certified protection for industrial automation and mobile robotics. Featuring a 275° scanning angle, a 40m sensing range, and configurable safety fields, it integrates with PLCs and AGV control systems for dynamic area monitoring and intrusion detection.
Features
- 275° wide scanning angle for extensive area coverage and monitoring.
- Up to 40-meter protective field range for large-scale industrial safety zones.
- Supports 128 configurable field pairs for dynamic, flexible safety zoning.
- Certified to SIL2, Performance Level d, and Type 3 safety standards.
- IP65-rated rugged housing for reliable operation in harsh industrial environments.
Out of stock
The SICK NANS3-CAAZ30AN1 is a compact, high-performance safety laser scanner from the nanoScan3 series, engineered for modern industrial automation and mobile platforms like AGVs and AMRs. It utilizes SICK’s advanced safe HDDM (High Definition Distance Measurement) scanning technology, which ensures accurate object detection and reliable performance even in challenging conditions such as dust, ambient light interference, and vibration.
This scanner combines safety protection with localization capabilities, functioning as a 2-in-1 solution for both safeguarding personnel and supporting navigation for mobile systems. Its configurable field sets allow for the creation of complex warning and protective zones, adaptable to dynamic operational layouts. The device operates within a -10°C to 50°C temperature range and is designed for seamless integration into safety control systems via its diagnostic interfaces.
Additional Information
| Weight | 0.67 kg |
|---|---|
| Dimensions | 11.75 × 1 cm |
