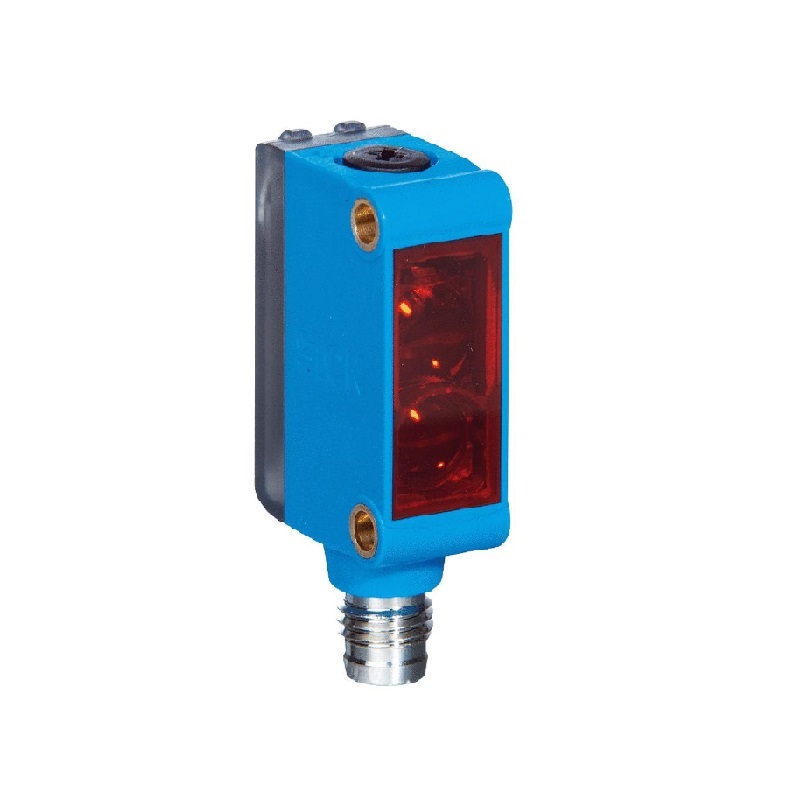

SICK GL6-P4212 (1062110) Retro-Reflective Photoelectric Sensor, PNP Output, 650 nm, 10~30VDC, M8 Connector, Sensing Range: 0.07~5m, G6 Series

Name: SICK GL6-P4212 (1062110) Retro-Reflective Photoelectric Sensor, PNP Output, 650 nm, 10~30VDC, M8 Connector, Sensing Range: 0.07~5m, G6 Series
Brand: SICK
SKU: SENS-1747
Price: 2769.00 INR
Availability: OutOfStock

₹2,769.00 (Inclusive of all taxes)

Out of Stock

The SICK GL6-P4212 is a compact retro-reflective photoelectric sensor with PNP output, designed for reliable object detection in industrial automation. Operating on a 10-30VDC supply with an IP67-rated housing, it offers a sensing range from 0.07 to 5 meters and is compatible with PLCs and control systems via its M8 connector.

Features

Retro-reflective sensing principle with 650 nm red light for reliable detection up to 5 meters.
PNP switching output with comprehensive circuit protection (reverse-polarity, overcurrent, short-circuit).
Robust IP67-rated enclosure ensures operation in harsh industrial environments.
Wide operating voltage range of 10-30VDC for flexible system integration.
Compact design with industry-standard M8 4-pin connector for easy installation.

Out of stock

Get Notified When Available

Description

The GL6-P4212 is part of SICK’s G6 series of miniature photoelectric sensors, utilizing a retro-reflective functional principle. It emits a modulated 650 nm red light beam and detects its reflection from a dedicated reflector, making it ideal for detecting objects regardless of surface color or texture. The sensor incorporates advanced signal processing for stable operation and reliable background suppression.

Engineered for industrial durability, the sensor features a sealed IP67 housing capable of withstanding dust and temporary immersion. Its integrated electronic protection safeguards against common installation errors like reverse polarity, overcurrent, and output short-circuits, ensuring high system uptime and reliability in demanding automation applications.

Key Features

Retro-reflective optical sensing with a 650 nm visible red light source.
PNP (sourcing) output configuration for direct interface with PLC digital inputs.
Extended sensing range from 70 mm to 5 meters with precise background suppression.
Robust IP67 protection rating for dust-tight and water-resistant operation.
Wide operating temperature range from -25°C to +75°C for harsh environments.
Integrated electronic protection: reverse polarity, overcurrent, and short-circuit.
Compact form factor with a pre-wired M8 4-pin connector for quick deployment.
10-30VDC operating voltage range compatible with standard industrial 24VDC systems.

Applications

Conveyor belt object detection and counting in packaging and material handling.
Pallet presence verification and positioning in automated storage and retrieval systems (AS/RS).
Door and gate monitoring for safety interlocks in industrial facilities.
Machine guarding and access control for personnel safety.
Part positioning and end-of-travel detection in automated assembly machinery.

Technical Specifications

Manufacturer Part Number (MPN)	GL6-P4212
Series	G6 Series
Sensing Principle	Retro-Reflective Photoelectric
Light Source	650 nm Red LED
Sensing Range	0.07 m to 5 m
Output Type	PNP (Sourcing)
Supply Voltage	10 VDC to 30 VDC
Connection Type	M8 4-Pin Connector
Enclosure Rating	IP67
Operating Temperature	-25°C to +75°C
Circuit Protection	Reverse Polarity, Overcurrent, Short-Circuit

Frequently Asked Questions

What is the output type of the SICK GL6-P4212 sensor and how do I wire it?

The GL6-P4212 provides a PNP (sourcing) output. Connect the brown wire to +V (10-30VDC), the blue wire to 0V, and the black wire is the switched PNP output. The white wire is typically unused. The output switches to +V when an object is detected, compatible with most PLC digital inputs.

What is the maximum sensing distance and does it require a reflector?

This retro-reflective sensor has a maximum sensing distance of 5 meters. It requires a dedicated retro-reflector (not included) to function. The target object breaks the beam between the sensor and the reflector. Ensure the reflector size and alignment are appropriate for the required range.

Can this sensor operate in wet or dusty environments?

Yes, the sensor features an IP67 protection rating, making it dust-tight and capable of withstanding temporary immersion in water up to 1 meter for 30 minutes. It is suitable for washdown areas and harsh industrial environments within its -25°C to +75°C operating temperature range.
