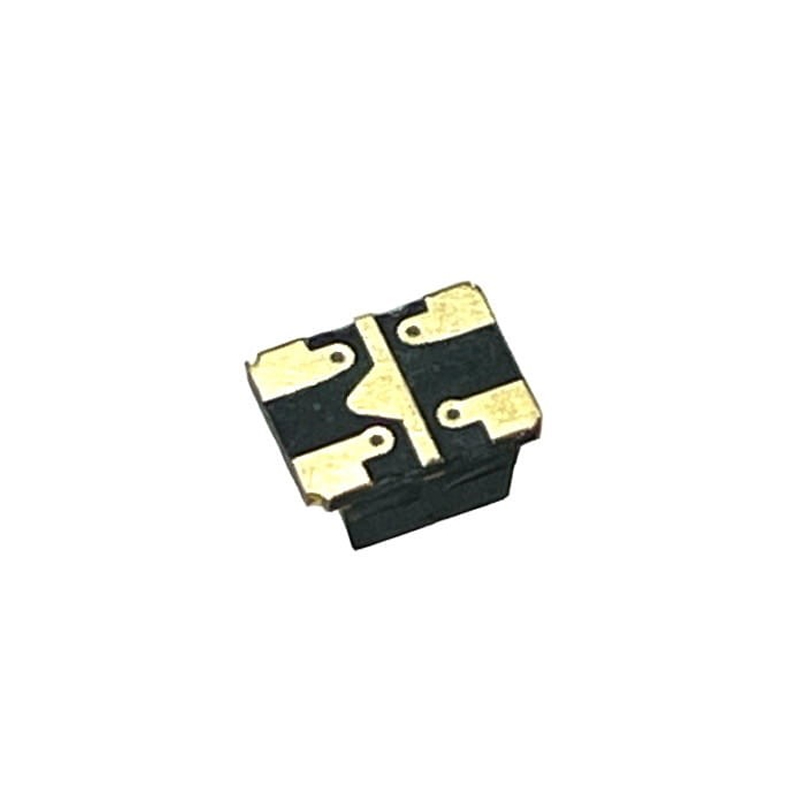

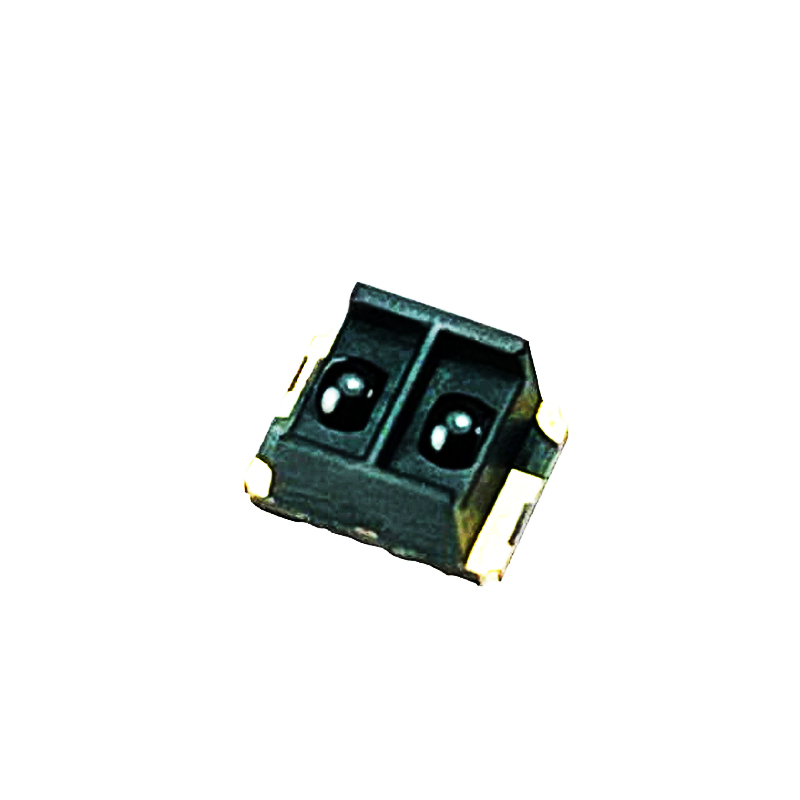

Sharp Microelectronics GP2S700HCP Reflective Optical Sensor - Analog Output, 950nm IR, 0.2-5mm Range, SMT Package
The Sharp Microelectronics GP2S700HCP is a compact, surface-mount reflective photointerrupter with an analog phototransistor output, designed for precise non-contact object detection within a 0.2 to 5mm range. It operates on 3.3V to 5V DC and features a visible light cut resin for high accuracy, making it suitable for integration into automated assembly lines and compact electronic devices.
Features
- Reflective optical sensor with analog phototransistor output for precise object detection.
- Compact leadless SMT package (4 x 3 x 2 mm) supports reflow soldering for automated assembly.
- Features a 950nm IR emitter and visible light cut resin to minimize false triggers from ambient light.
- Wide operating temperature range from -30°C to +75°C for robust industrial and commercial use.
- Supplied in Tape and Reel packaging (1000 pieces per reel) for high-volume production lines.
Out of stock
The Sharp Microelectronics GP2S700HCP is a high-precision reflective photointerrupter module integrating an infrared LED emitter and a phototransistor detector within a single, epoxy-molded surface-mount device (SMD). Its fundamental sensing principle relies on detecting the reflection of its 950nm infrared beam from a target object, with the analog output of the phototransistor varying proportionally to the reflected intensity. This allows for reliable detection of objects within a calibrated range of 0.2mm to 5mm.
Engineered for stability and durability, the module incorporates a visible light cut resin that filters out ambient light interference, ensuring consistent detection accuracy. Its leadless package is fully compatible with standard reflow soldering processes, facilitating efficient PCB assembly. The device is specified for operation across a broad industrial temperature range from -30°C to +75°C and is RoHS compliant, meeting modern environmental and manufacturing standards for automated production environments.
Additional Information
| Weight | 0.002 kg |
|---|---|
| Dimensions | 0.4 × 0.3 × 0.2 cm |
