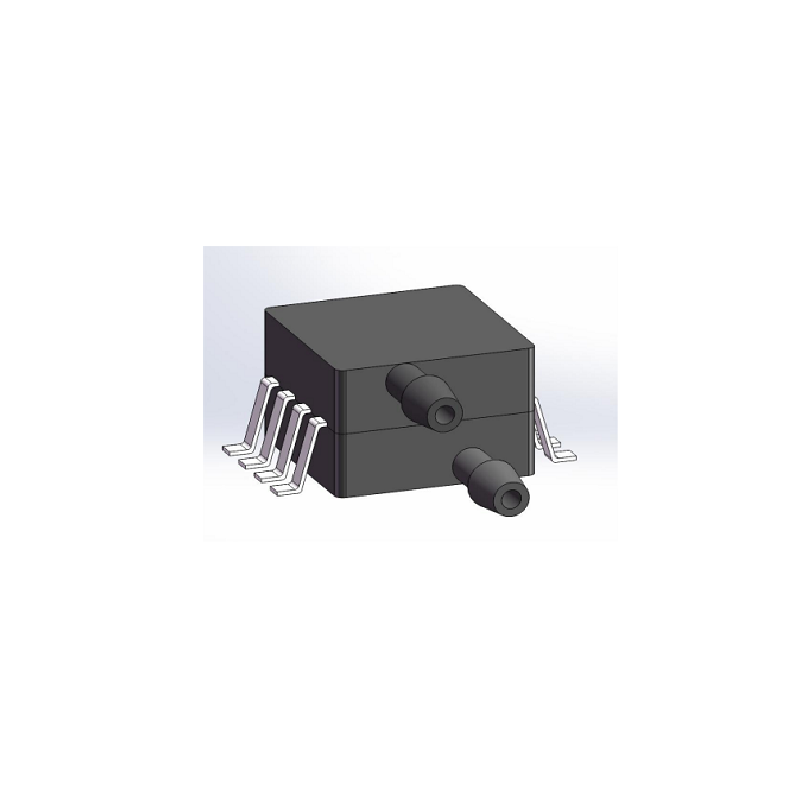

Sencoch GZP6899D0.5KPW Pressure Sensor, -0.5 kPa to +0.5 kPa Range, 3.3V I2C Output, SOP-8 Package
The Sencoch GZP6899D0.5KPW is a low-power MEMS piezoresistive gauge pressure sensor with a ±0.5 kPa range and I2C digital output. Operating at 3.3V with a 100nA standby current, it is designed for integration into portable medical devices, home appliances, and battery-powered IoT systems requiring precise differential pressure measurement.
Features
- Ultra-low 100nA standby current for extended battery life in portable applications.
- Digital I2C interface provides direct, noise-immune communication with microcontrollers like Arduino, ESP32, and Raspberry Pi.
- MEMS piezoresistive sensing element ensures high sensitivity across a ±0.5 kPa differential pressure range.
- Compact SOP-8 surface-mount package suitable for space-constrained PCB designs.
- Wide operating temperature range from -30°C to +85°C for reliable performance in diverse environments.
Out of stock
The GZP6899D0.5KPW utilizes a MEMS piezoresistive Wheatstone bridge structure fabricated on a silicon diaphragm. Applied pressure causes a mechanical strain, resulting in a proportional change in the bridge resistance. This analog signal is conditioned and digitized by an integrated ASIC, providing calibrated digital pressure data via the I2C bus, simplifying system design and reducing external component count.
Engineered for low-power operation, the sensor’s 100nA standby mode makes it ideal for always-on, battery-powered monitoring applications. The 3.3V single-supply operation and I2C interface ensure straightforward compatibility with modern 3.3V logic microcontrollers and system-on-chip platforms, eliminating the need for level shifters or additional signal conditioning circuitry.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
