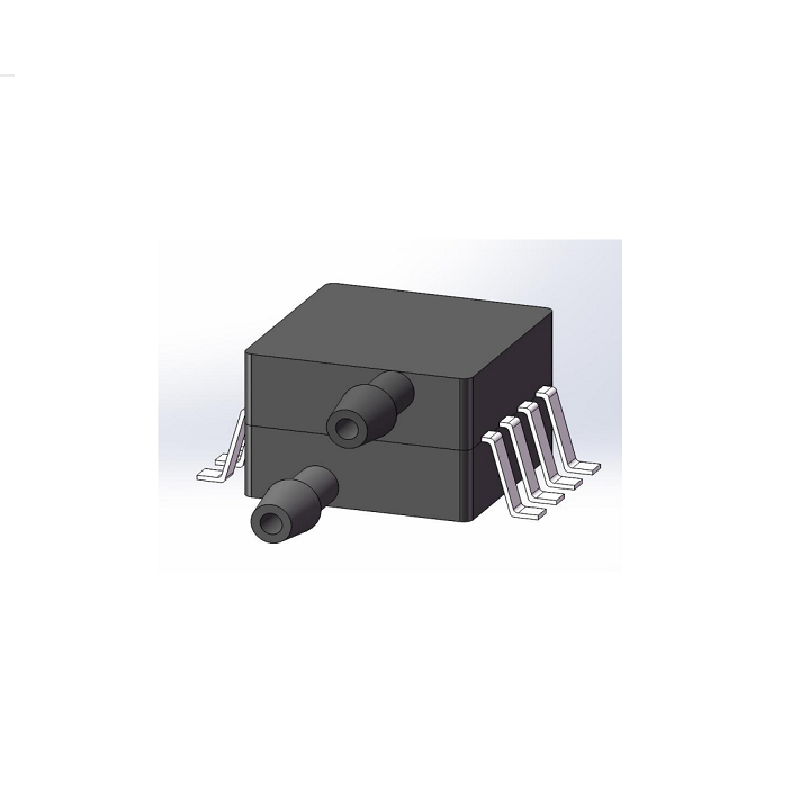

Sencoch GZP6899A0.5KPW50K Pressure Sensor, −0.5 kPa ~ 0.5 kPa, 5V Analog Output, SOP-8 Package
The Sencoch GZP6899A0.5KPW50K is a high-precision MEMS piezoresistive pressure sensor delivering analog voltage output for measuring differential pressures from -0.5 kPa to +0.5 kPa. Operating from a 5V DC supply, it is designed for integration into medical devices, HVAC controls, and low-pressure monitoring systems requiring compact, surface-mount packaging.
Features
- High-sensitivity MEMS piezoresistive sensing element for low-pressure differential measurement.
- Analog voltage output for direct ADC interfacing with microcontrollers like Arduino, ESP32, or STM32.
- Compact SOP-8 surface-mount package with 2.54mm pin pitch for space-constrained PCB designs.
- Wide operating temperature range from -30°C to +85°C for reliable performance in varied environments.
- Low standby current consumption of 1.8mA, optimized for battery-powered or energy-efficient applications.
Out of stock
The GZP6899A0.5KPW50K utilizes a MEMS piezoresistive Wheatstone bridge structure fabricated on a silicon diaphragm. Applied pressure causes a proportional change in resistance, which is conditioned by an internal ASIC to provide a ratiometric analog voltage output relative to the 5V supply. This design ensures high sensitivity and linearity across its ±0.5 kPa full-scale range.
Housed in a robust SOP-8 package, the sensor is suitable for automated PCB assembly and offers protection against typical handling stresses. Its performance across an industrial temperature span makes it applicable for medical respiratory equipment, appliance pressure switches, and environmental monitoring systems where precise low-pressure detection is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
