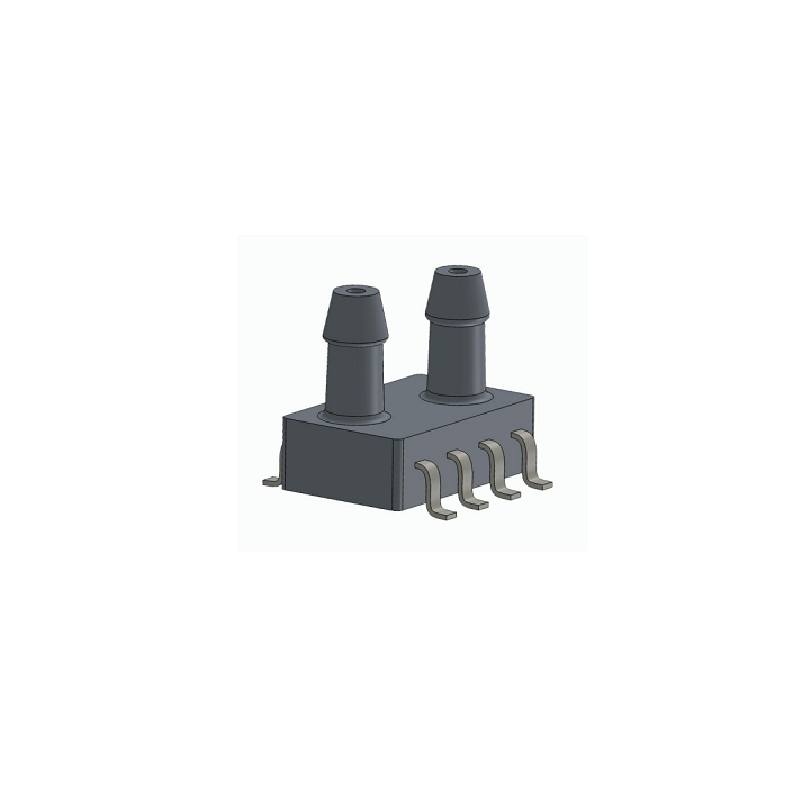

Sencoch GZP6897D0.5KPW Digital Air Pressure Sensor, 3.3V, 100nA, I2C, SOP-8 (Range: -0.5kPa~0.5kPa)
The Sencoch GZP6897D0.5KPW is a low-power digital MEMS pressure sensor with an I2C interface, designed for precise differential air pressure measurement from -0.5 kPa to +0.5 kPa. Operating at 3.3V with ultra-low 100nA standby current, it is ideal for battery-powered portable devices, medical equipment, and smart home appliances.
Features
- Ultra-low power consumption with 100nA standby current for extended battery life.
- Digital I2C interface provides direct, noise-resistant communication with microcontrollers like Arduino, ESP32, and Raspberry Pi.
- High-precision MEMS piezoresistive sensing element with ±2% accuracy across the -0.5kPa to +0.5kPa range.
- Compact SOP-8 surface-mount package suitable for space-constrained PCB designs.
- Wide operating temperature range from -30°C to +85°C ensures reliable performance in various environments.
Out of stock
The GZP6897D0.5KPW utilizes a MEMS piezoresistive sensing element to convert differential air pressure into a digital signal via an integrated ASIC and I2C interface. This design eliminates the need for external analog-to-digital conversion, simplifying system integration and improving signal integrity in electrically noisy environments.
Engineered for low-power applications, its 100nA standby current makes it suitable for always-on monitoring in portable medical devices, HVAC controls, and smart home systems. The sensor’s robust construction and wide temperature tolerance support reliable operation in demanding conditions.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 0.5 × 0.6 × 0.2 cm |
