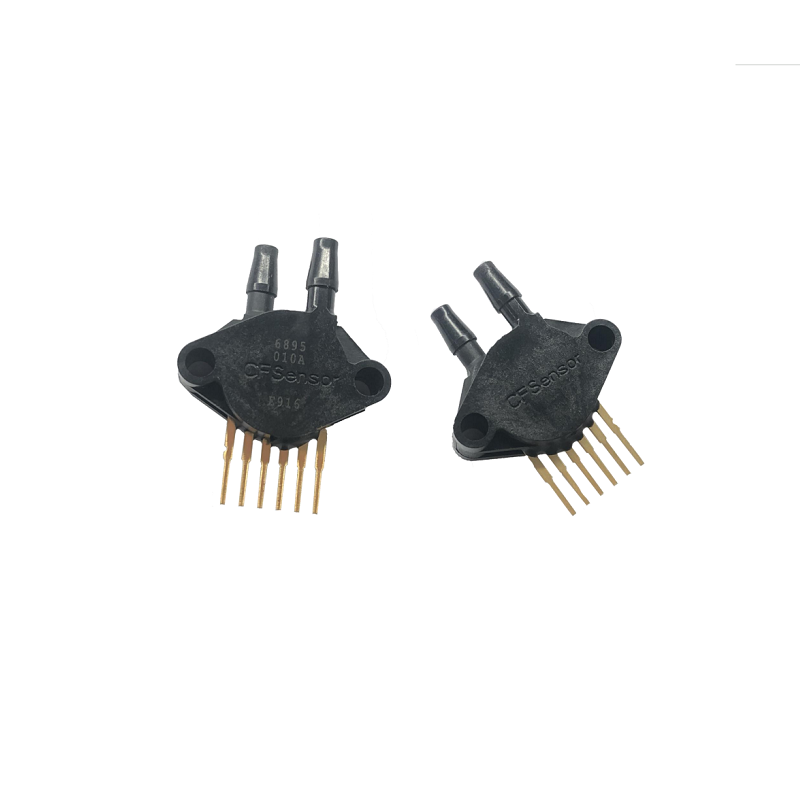

Sencoch GZP6895A010KPP50H Plug-In Pressure Sensor, Through-Hole, Range: 0-10 kPa, Analog Voltage Output
The Sencoch GZP6895A010KPP50H is a compact, plug-in MEMS piezoresistive pressure sensor delivering an analog voltage output proportional to gauge pressure in the 0-10 kPa range. Designed for 5V DC operation, it is compatible with microcontrollers like Arduino and Raspberry Pi for medical, HVAC, and appliance monitoring applications.
Features
- MEMS piezoresistive sensing element for gauge pressure measurement
- 0 to 10 kPa measurement range with ±2% typical accuracy
- Analog voltage output for direct interface with ADC inputs
- 5V DC supply voltage, RoHS compliant construction
- Through-hole plug-in package for easy PCB mounting
Out of stock
The GZP6895A010KPP50H utilizes a micromachined silicon piezoresistive sensing element to detect gauge pressure changes. The internal Wheatstone bridge configuration provides a stable analog voltage signal that is linearly proportional to the applied pressure, requiring minimal external signal conditioning for integration into 5V logic systems.
Housed in a compact, through-hole package, this sensor is designed for reliable performance in controlled environments. Its construction adheres to RoHS standards, making it suitable for integration into medical devices, household appliances, and HVAC systems where precise low-pressure monitoring is critical.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
