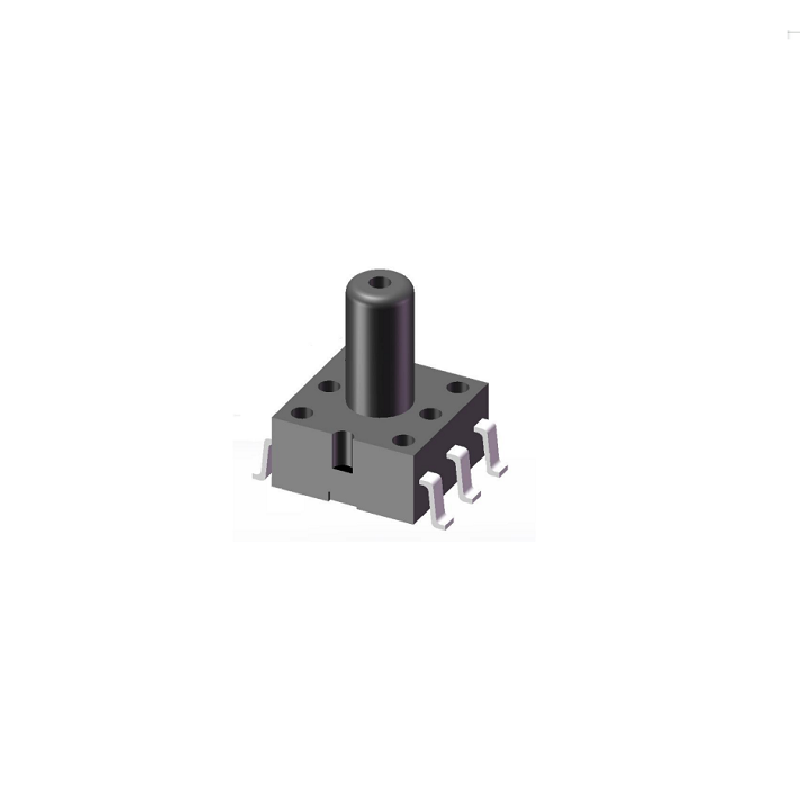

Sencoch GZP6859D201KPP Pressure Sensor, 0-200 kPa, 3.3V, 100nA, I2C

Name: Sencoch GZP6859D201KPP Pressure Sensor, 0-200 kPa, 3.3V, 100nA, I2C
Brand: Sencoch
SKU: SENS-2095
Price: 449.00 INR
Availability: OutOfStock

₹449.00 (Inclusive of all taxes)

Out of Stock

The Sencoch GZP6859D201KPP is a low-power MEMS piezoresistive pressure sensor module with a 0-200 kPa gauge range and I2C digital output. Operating at 3.3V with an ultra-low 100nA standby current, it is ideal for battery-powered portable devices, medical equipment, and smart home appliances.

Features

Ultra-low 100nA standby current for extended battery life
Digital I2C interface for direct microcontroller integration (Arduino, ESP32, Raspberry Pi)
MEMS piezoresistive sensing element with ±2% accuracy
Wide operating temperature range from -30°C to +85°C
Compact SOP-6-2.54mm package for space-constrained designs

Out of stock

Get Notified When Available

Description

The GZP6859D201KPP utilizes a MEMS piezoresistive sensing element to translate applied pressure into a precise electrical signal, which is then conditioned and digitized for output via a standard I2C communication bus. This digital interface simplifies wiring and provides noise-immune data transmission to host controllers like Arduino, ESP32, or industrial PLCs.

Engineered for reliability in demanding environments, the sensor operates across a -30°C to +85°C temperature range. Its 3.3V supply voltage and exceptionally low power consumption make it a prime choice for portable medical diagnostic tools, HVAC system monitors, and intelligent appliance controls where energy efficiency is critical.

Key Features

High-accuracy MEMS piezoresistive pressure sensing core
Fully digital I2C output for simplified system integration
Exceptional power efficiency with 100nA standby mode
Robust construction suitable for medical and appliance applications
Compact, surface-mount SOP-6 package with 2.54mm pin spacing
Wide industrial operating temperature range
Optimized performance-to-cost ratio for volume applications

Applications

Portable medical devices for non-invasive blood pressure monitoring
HVAC system duct pressure and airflow control
Smart appliance pressure sensing in coffee makers, air fryers, or dishwashers
Battery-powered environmental data loggers and weather stations
Industrial pneumatic system pressure monitoring and leak detection

Technical Specifications

Manufacturer Part Number	GZP6859D201KPP
Pressure Type	Gauge
Pressure Range	0 to 200 kPa
Sensor Type	MEMS piezoresistive pressure sensor
Output Interface	I2C
Supply Voltage	3.3 V DC
Standby Current	100 nA
Accuracy	±2%
Operating Temperature	-30°C to +85°C
Package / Case	SOP-6-2.54mm
Weight	0.008 kg

Frequently Asked Questions

What is the communication protocol for this pressure sensor?

The sensor uses a standard I2C communication interface. This allows for simple two-wire connection (SCL, SDA) to microcontrollers like Arduino, ESP32, or Raspberry Pi, providing direct digital pressure readings without the need for an external ADC.

What is the power consumption of this sensor?

The GZP6859D201KPP is designed for ultra-low power applications, featuring a standby current of only 100 nanoamperes (nA). Its operating supply voltage is 3.3V DC, making it highly suitable for battery-powered and portable devices where energy efficiency is paramount.

What pressure type and range does this sensor cover?

This is a gauge pressure sensor with a measurement range of 0 to 200 kilopascals (kPa). It measures pressure relative to ambient atmospheric pressure. The sensor is rated for an accuracy of ±2% across its specified operating temperature range of -30°C to +85°C.

How do I mount and interface with this sensor module?

The module comes in a compact SOP-6 surface-mount package with a 2.54mm pin pitch. It can be soldered directly onto a PCB or used with a breakout board. Ensure a stable 3.3V power supply and connect the I2C lines with appropriate pull-up resistors as per the I2C bus specification for reliable communication.
