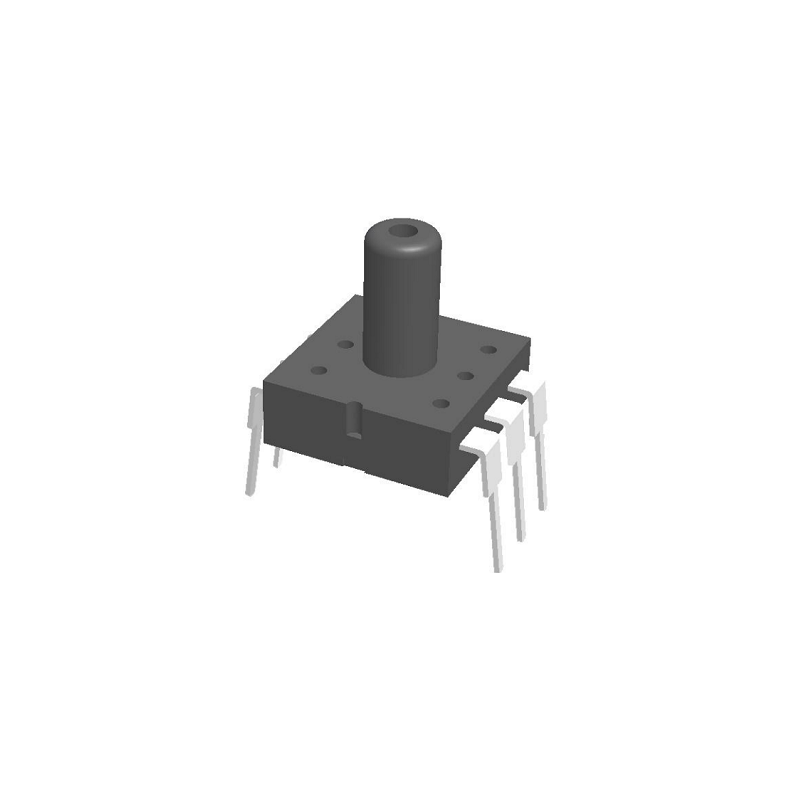

Sencoch GZP6857A101KPP50K MEMS Pressure Sensor, 0-100 kPa Gauge, 5V Analog Output, DIP-6 Package
Sencoch GZP6857A101KPP50K MEMS Pressure Sensor, 0-100 kPa Gauge, 5V Analog Output, DIP-6 Package - Image 2
SKU: SENS-2106
📋 GST Invoice Available

Sencoch GZP6857A101KPP50K MEMS Pressure Sensor, 0-100 kPa Gauge, 5V Analog Output, DIP-6 Package

₹569.00 (Inclusive of all taxes)
Out of Stock

The Sencoch GZP6857A101KPP50K is a MEMS piezoresistive pressure sensor providing an analog voltage output proportional to gauge pressure from 0 to 100 kPa. Operating from a 5V DC supply, this compact DIP-6 module is designed for integration into medical devices, HVAC systems, and appliance control boards.

Features

  • MEMS piezoresistive sensing element for gauge pressure measurement
  • 0 to 100 kPa measurement range with ±2% accuracy
  • 5V DC supply voltage with low 1.8mA standby current
  • Analog voltage output for direct ADC interfacing
  • Compact DIP-6 package for easy PCB mounting

Out of stock

Description

The GZP6857A101KPP50K utilizes a micromachined silicon piezoresistive diaphragm to translate applied pressure into a precise analog voltage signal. This MEMS-based design ensures stable, repeatable measurements suitable for monitoring and control applications.

Engineered for reliability across a -30°C to +85°C operating temperature range, the sensor’s robust construction and ROHS compliance make it suitable for integration into demanding electronic systems requiring compact pressure sensing.

Key Features

  • High-precision MEMS piezoresistive sensing technology
  • Wide operating temperature range from -30°C to +85°C
  • Low power consumption with 1.8mA typical standby current
  • Analog voltage output for straightforward signal conditioning
  • Compact and standardized DIP-6 through-hole package
  • RoHS compliant construction for environmental safety
  • Optimized for gauge pressure measurement applications

Applications

  • Medical device pressure monitoring (e.g., ventilators, infusion pumps)
  • HVAC system duct pressure and airflow measurement
  • Appliance control for washing machines, dishwashers, and coffee makers
  • Industrial process control for low-pressure pneumatic systems
  • Portable electronic manometers and environmental monitoring devices

Technical Specifications

Manufacturer Part NumberGZP6857A101KPP50K
Pressure TypeGauge
Pressure Range0 to 100 kPa
Sensor TypeMEMS Piezoresistive
Output TypeAnalog Voltage
Supply Voltage5 V DC
Standby Current1.8 mA
Accuracy±2%
Operating Temperature-30°C to +85°C
Package / CaseDIP-6
Weight0.008 kg

Frequently Asked Questions

What is the output signal type of the GZP6857A101KPP50K pressure sensor?

This sensor provides an analog voltage output that is linearly proportional to the applied gauge pressure. The signal requires an external analog-to-digital converter (ADC) for digital microcontroller interfacing, such as with Arduino, Raspberry Pi, or industrial PLC analog input modules.

What is the required power supply for this sensor?

The sensor requires a stable 5V DC power supply. It has a typical standby current draw of 1.8mA. Ensure your power source can provide clean, regulated 5V to maintain measurement accuracy and sensor longevity.

Can this sensor measure negative or vacuum pressure?

No, the GZP6857A101KPP50K is specified as a gauge pressure sensor with a range of 0 to 100 kPa. It measures pressure relative to ambient atmospheric pressure and is not designed for absolute pressure (referenced to vacuum) or differential pressure across two ports.

How do I mount and interface with the DIP-6 package?

The sensor is in a standard DIP-6 through-hole package for direct PCB mounting. You will need to solder it onto a board or use a DIP socket. Consult the official datasheet for the pinout diagram to correctly connect power, ground, and the analog output signal.

Package Includes

  • 1 x Sencoch GZP6857A101KPP50K Pressure Sensor

Additional Information

Weight 0.008 kg
Dimensions 9 × 6 × 2 cm
