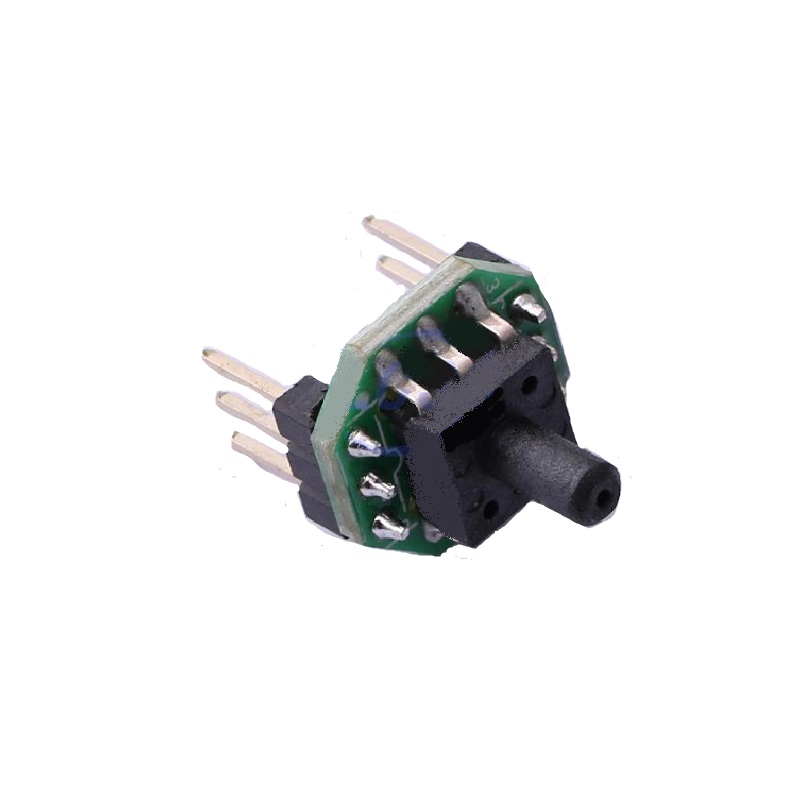

Sencoch GZP6847A201KPP50K Gauge Pressure Sensor, 0-200 kPa Range, 5V DC, DIP-6 Package
The Sencoch GZP6847A201KPP50K is a compact, MEMS piezoresistive gauge pressure sensor delivering an analog voltage output proportional to applied pressure from 0 to 200 kPa. Operating from a 5V DC supply, this DIP-6 packaged sensor is engineered for integration into medical devices, HVAC controls, and appliance monitoring systems requiring reliable pressure measurement.
Features
- MEMS piezoresistive sensing element for stable, low-drift analog output.
- Gauge pressure measurement range from 0 to 200 kilopascals (kPa).
- Low power consumption with a typical standby current of 1.8 mA at 5V DC.
- Broad operating temperature range from -30°C to +85°C for robust environmental performance.
- Compact DIP-6 through-hole package for straightforward PCB mounting and integration.
Out of stock
The GZP6847A201KPP50K utilizes a precision MEMS piezoresistive silicon sensing element. Applied pressure induces a strain on the micromachined diaphragm, causing a proportional change in the resistance of the embedded piezoresistors. This change is conditioned internally to provide a ratiometric analog voltage output signal, simplifying interface with microcontrollers or analog-to-digital converters.
Designed for durability, the sensor operates reliably across an industrial temperature span from -30°C to +85°C. Its gauge pressure configuration measures pressure relative to ambient atmospheric pressure, making it suitable for applications like pneumatic control, fluid level detection, and medical instrumentation where absolute vacuum reference is not required. The DIP-6 package ensures compatibility with standard PCB assembly processes.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
