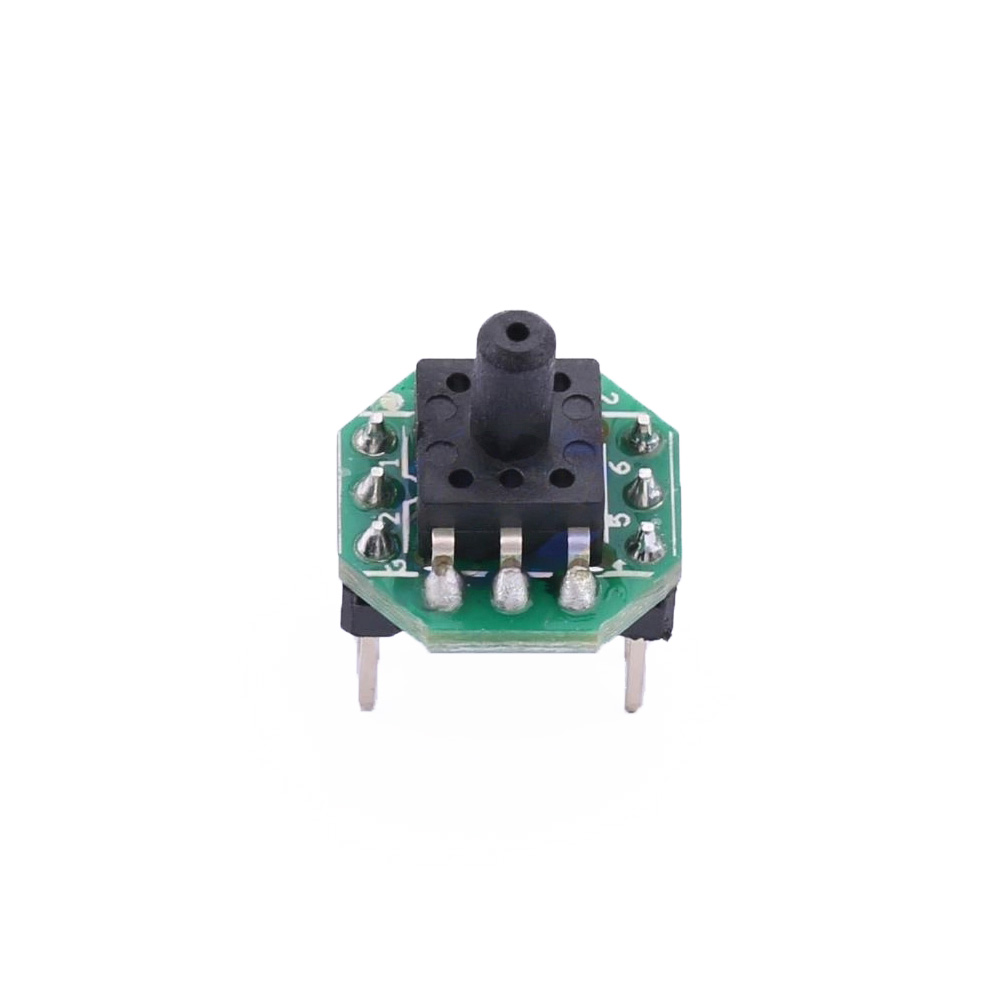

Sencoch GZP6847A010KPP50K Pressure Sensor, 0-10 kPa Range, 5V Analog Output, DFN-8 Package
The Sencoch GZP6847A010KPP50K is a low-pressure MEMS piezoresistive sensor with a 0-10 kPa gauge range and analog voltage output, designed for 5V systems and suitable for integration into medical devices, HVAC controls, and portable instrumentation.
Features
- Precise 0 to 10 kPa gauge pressure measurement range.
- Low-power operation at 5V supply voltage and 1.8mA current consumption.
- Wide operating temperature range from -30°C to +85°C.
- Compact DFN-8 surface-mount package for space-constrained designs.
- Analog voltage output for direct ADC interfacing with microcontrollers.
Out of stock
The GZP6847A010KPP50K is a MEMS piezoresistive pressure sensor that translates applied pressure into a proportional analog voltage signal. Its internal Wheatstone bridge configuration and integrated signal conditioning provide a stable, linear output suitable for direct connection to microcontroller ADCs, simplifying system design.
Engineered for reliability, the sensor’s robust construction ensures consistent performance across a broad industrial temperature span from -30°C to +85°C. Its low current draw makes it ideal for battery-powered or energy-sensitive applications requiring continuous pressure monitoring.
Additional Information
| Weight | 0.01 kg |
|---|
