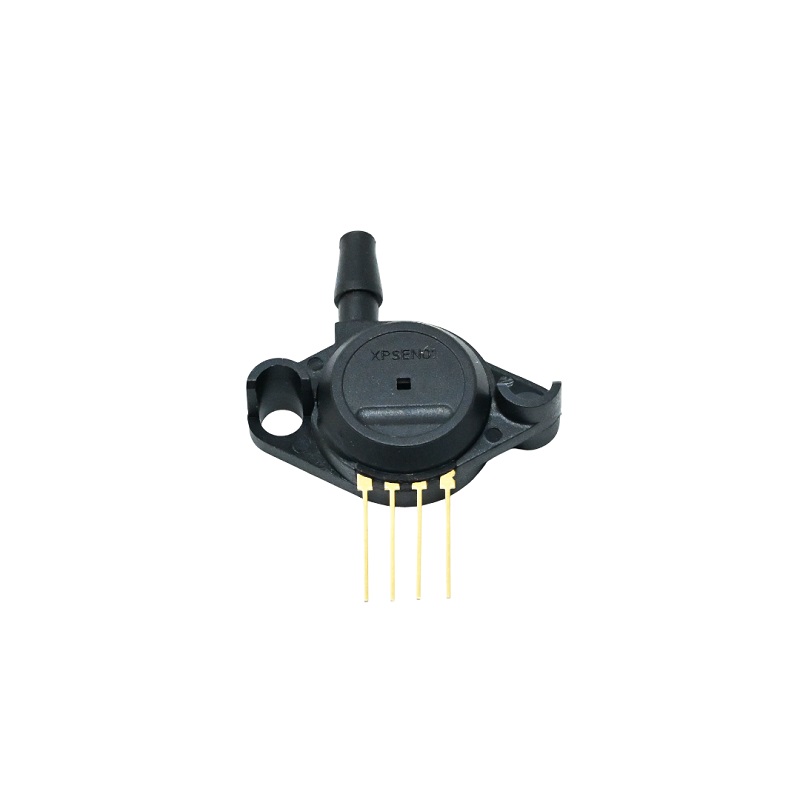

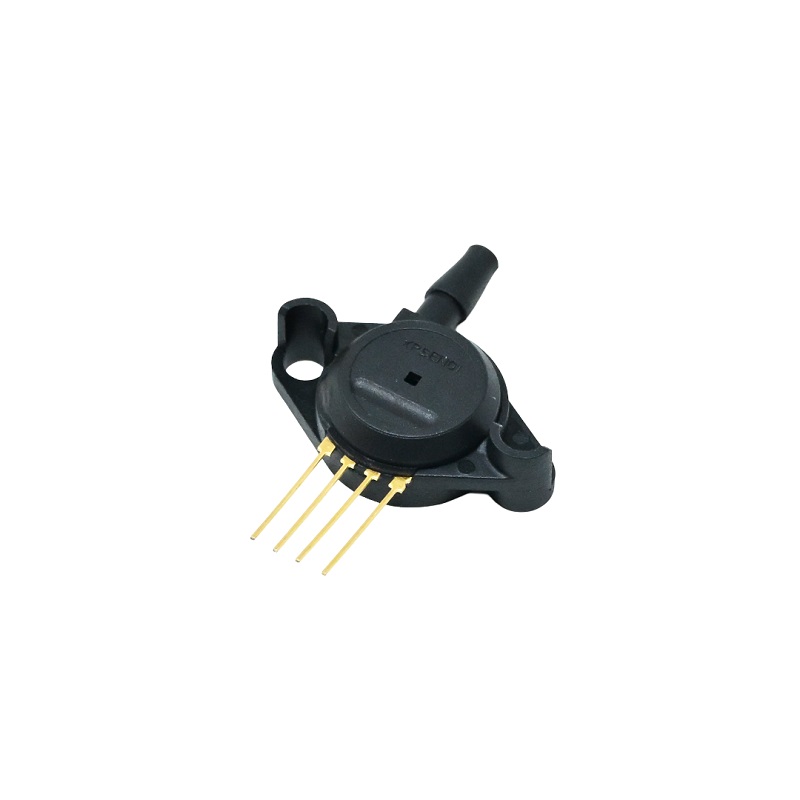

Sencoch GZP191-101G Pressure Sensor, 0kPa~10kPa, Analog Voltage Output
The Sencoch GZP191-101G is a low-pressure piezoresistive sensor providing an analog voltage output for precise measurement of gauge pressures from 0 to 10 kPa, suitable for integration into medical devices and precision instrumentation.
Features
- Piezoresistive sensing element for stable, low-pressure measurement.
- Analog voltage output (approx. -1 mV to +1 mV) for direct ADC interfacing.
- ±2% accuracy across the 0-10 kPa gauge pressure range.
- Compact plugin package for space-constrained applications.
- Designed for medical, healthcare, and precision appliance use.
Out of stock
The GZP191-101G utilizes a piezoresistive MEMS sensing element to convert applied gauge pressure into a proportional analog voltage signal. This technology provides a stable and linear output, making it ideal for low-pressure monitoring and control systems requiring high sensitivity.
Housed in a compact plugin package, the sensor is engineered for reliable performance in controlled environments typical of medical and high-precision household applications. Its low power consumption and straightforward analog interface facilitate easy integration with microcontrollers and data acquisition systems.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 9 × 6 × 2 cm |
