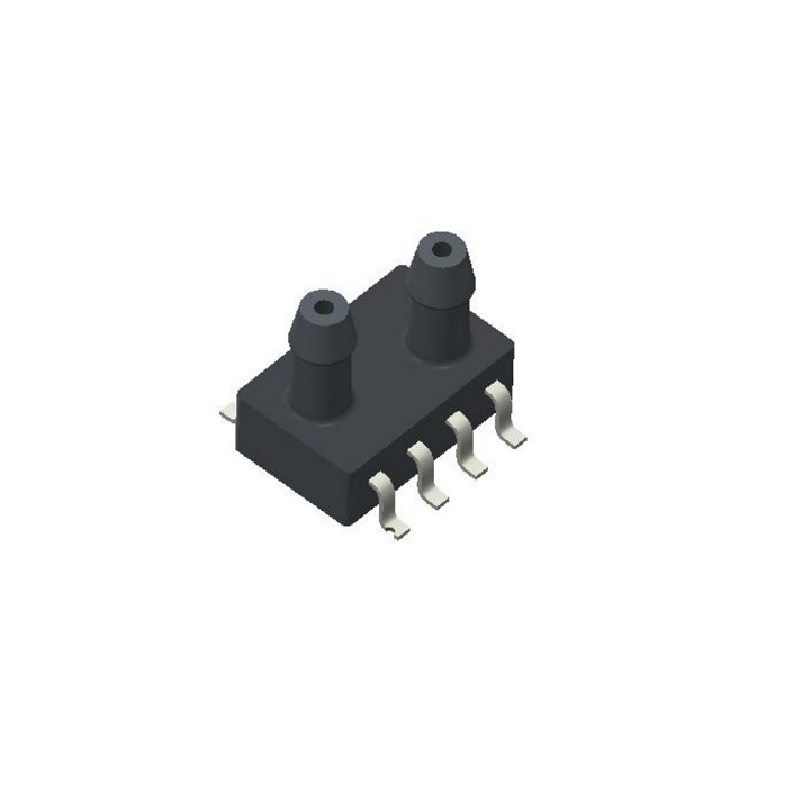

Sencoch GZP190-010S Pressure Sensor, -10Kpa~10Kpa, 1.8V~15V, -30℃~+100℃
The Sencoch GZP190-010S is a piezoresistive gauge pressure sensor delivering an analog voltage output for measuring differential pressures from -10 kPa to +10 kPa. Operating from a wide 1.8V to 15V DC supply, it is suitable for integration into low-power medical devices, portable instruments, and embedded systems requiring precise pressure monitoring.
Features
- Piezoresistive MEMS sensor for gauge pressure measurement from -10 kPa to +10 kPa.
- Wide operating voltage range from 1.8V to 15V DC for flexible system integration.
- Analog voltage output proportional to applied pressure for direct ADC interfacing.
- Extended operating temperature range from -30°C to +100°C.
- Compact and lightweight design with a typical accuracy of ±2% full scale.
Out of stock
The GZP190-010S utilizes a piezoresistive MEMS sensing element to convert applied gauge pressure into a linear analog voltage signal. This technology provides stable and repeatable measurements suitable for monitoring low-pressure differentials in controlled environments.
Designed for reliability across a broad temperature spectrum, the sensor maintains performance from -30°C to +100°C. Its wide supply voltage compatibility allows for direct connection to 3.3V or 5V microcontroller ADCs, as well as higher voltage industrial systems, simplifying power supply design.
Additional Information
| Weight | 0.008 kg |
|---|---|
| Dimensions | 6 × 9 × 2 cm |
