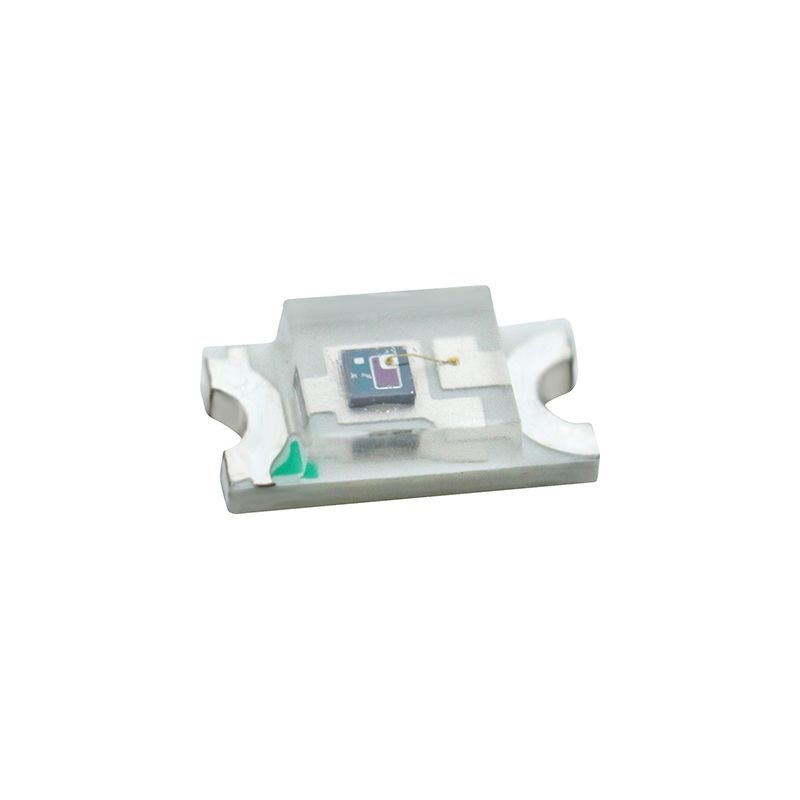

Senba SMD1206-30 1206 Ambient Light Sensor - ROHS
The Senba SMD1206-30 is a compact 1206-form-factor ambient light sensor (ALS) designed for automatic brightness control in portable electronics, IoT devices, and industrial panels. It features a spectral response close to the human eye and operates from -25°C to 85°C, making it suitable for a wide range of environmental conditions.
Features
- 1206 SMD package for compact PCB integration
- Spectral sensitivity matched to human eye response
- Wide operating temperature range: -25°C to 85°C
- Low power dissipation of 70mW
- ROHS compliant for environmental safety
Out of stock
The SMD1206-30 ambient light sensor utilizes a photodiode with integrated infrared filtering to accurately measure visible light intensity, enabling adaptive display brightness and power management in electronic systems. Its spectral response curve is designed to closely match the photopic luminosity function, ensuring accurate perception of ambient light levels as seen by the human eye.
Housed in a robust 1206 surface-mount package, this sensor is built for reliable operation across an industrial temperature range from -25°C to +85°C. Its low power consumption makes it ideal for battery-powered devices, while the standardized footprint allows for straightforward integration into automated assembly processes.
Additional Information
| Weight | 0.01 kg |
|---|---|
| Dimensions | 1 × 0.8 × 0.5 cm |
