Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 2
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 3
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 4
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 5
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 6
Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable - Image 7
SKU: SENS-3470
📋 GST Invoice Available

Seeed Studio Studio Grove High Temperature Sensor Module - K-Type Thermocouple, 3.3-5V, 1m Cable

₹1,339.00 (Inclusive of all taxes)
Out of Stock

The Seeed Studio Studio Grove High Temperature Sensor Module integrates a K-Type thermocouple with a dedicated amplifier featuring cold-junction compensation, enabling precise temperature measurement from -50°C to +600°C. It is designed for easy integration with 3.3V/5V microcontroller platforms like Arduino and Raspberry Pi via the Grove connector system.

Features

  • Wide-range K-Type thermocouple measures from -50°C to +600°C
  • Integrated amplifier with cold-junction compensation for accurate readings
  • Operates on a 3.3V to 5V DC supply, compatible with Arduino and Raspberry Pi
  • Grove standardized connector for plug-and-play system integration

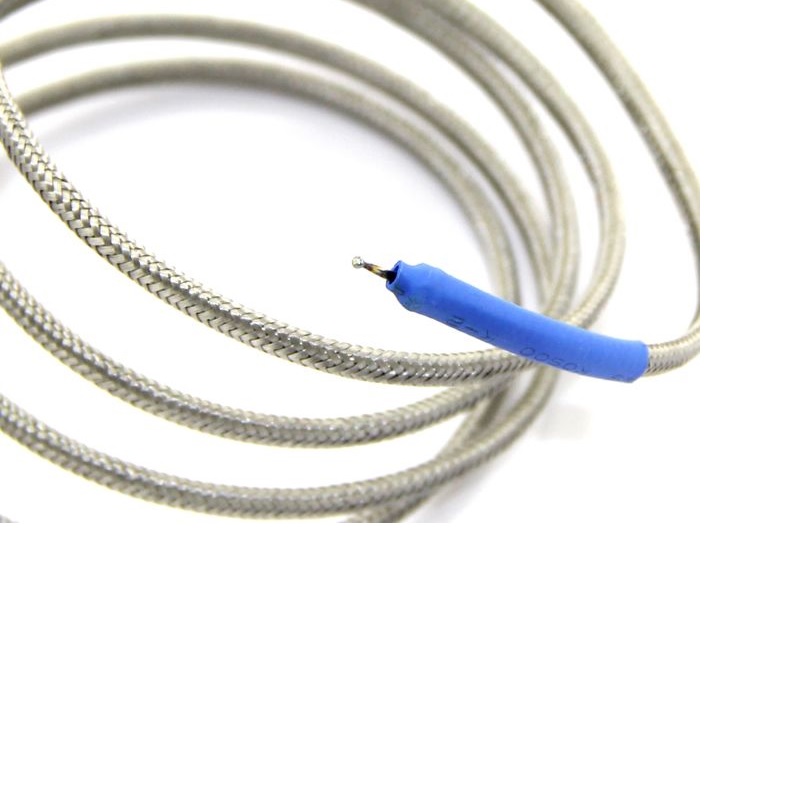

  • Includes a 1-meter high-temperature glass fiber thermocouple probe

Out of stock

Description

This sensor module employs a K-Type thermocouple paired with a precision thermocouple amplifier. The amplifier utilizes a thermistor for ambient temperature measurement to perform cold-junction compensation, a critical function for accurate thermocouple readings. The combination allows for reliable temperature sensing across an extensive industrial-grade range.

The module is engineered for durability in high-temperature environments, featuring a glass fiber insulated thermocouple probe. Its Grove interface simplifies wiring, making it suitable for prototyping, industrial monitoring, and high-temperature process control applications where precise thermal measurement is required.

Key Features

  • High-temperature K-Type thermocouple with a measurement span of -50°C to +600°C

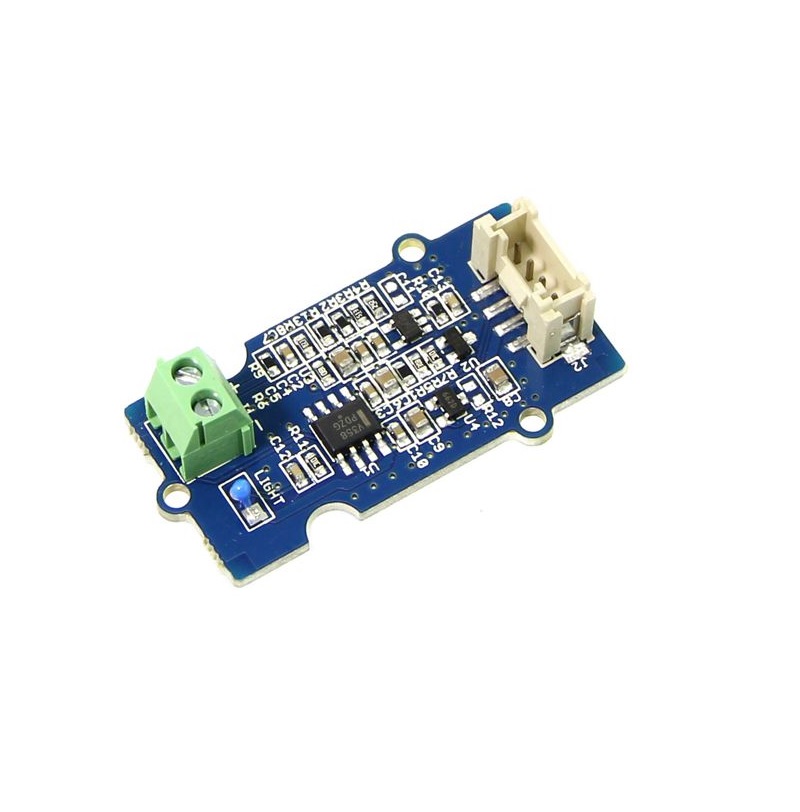

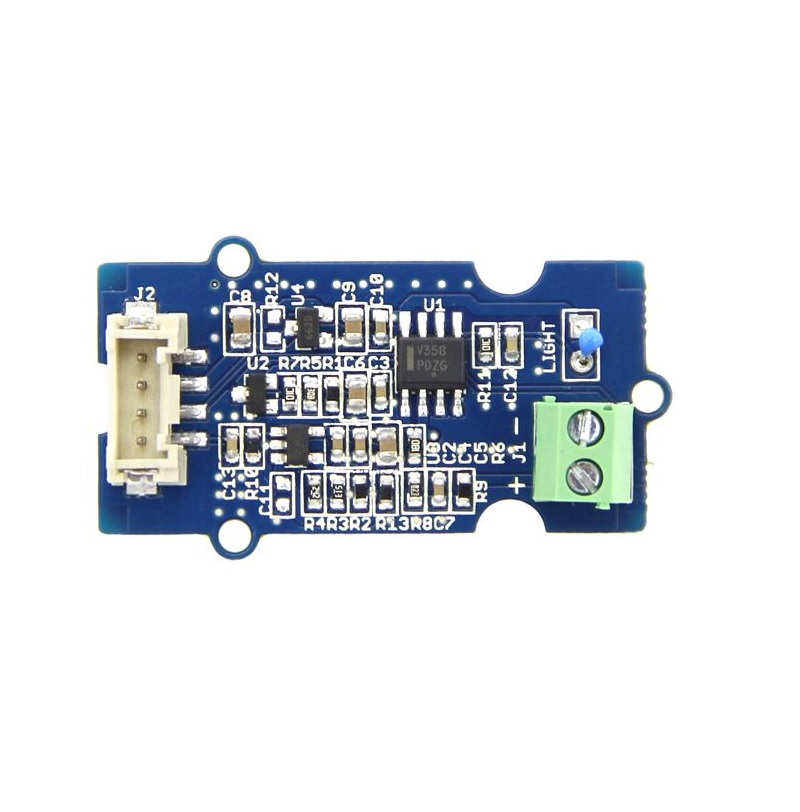

  • On-board thermocouple amplifier with integrated cold-junction compensation circuit
  • Low-power operation with a maximum rating of 300mW at 25°C
  • Wide operating temperature range for the module itself: -40°C to +125°C
  • Grove digital/analog interface for straightforward connection to microcontrollers
  • Includes a 1-meter long, flexible glass fiber sheathed thermocouple probe
  • Optimized performance-to-cost ratio for industrial and maker applications

Applications

  • Industrial process monitoring and control in furnaces, kilns, and ovens
  • High-temperature prototyping and testing in electronics development labs
  • Temperature monitoring in 3D printer hotends and heated beds
  • Energy management systems for boiler and HVAC equipment
  • Academic research and experiments involving extreme thermal environments

Technical Specifications

KeyValue
Model/NameGrove High Temperature Sensor Module
Operating Voltage3.3V to 5V DC
Max Power Rating300mW at 25°C
Module Operating Temperature-40°C to +125°C
Temperature Measurement Range-50°C to +600°C
Thermocouple TypeK-Type

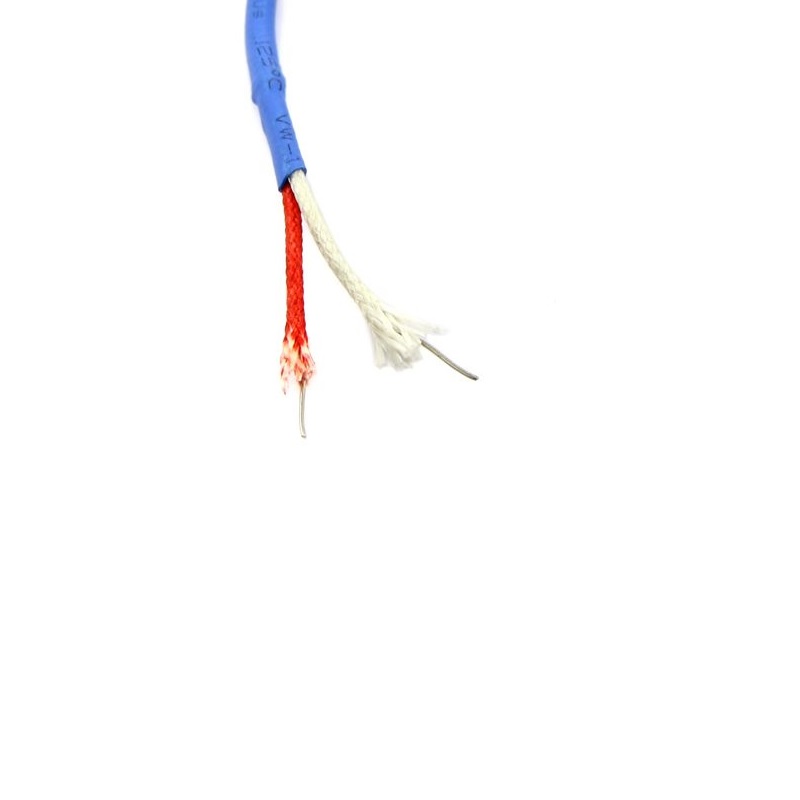

Thermocouple InsulationGlass Fiber
Measurement Accuracy±2.0% (+2°C)
Cable Length1 meter
InterfaceGrove (Digital/Analog)

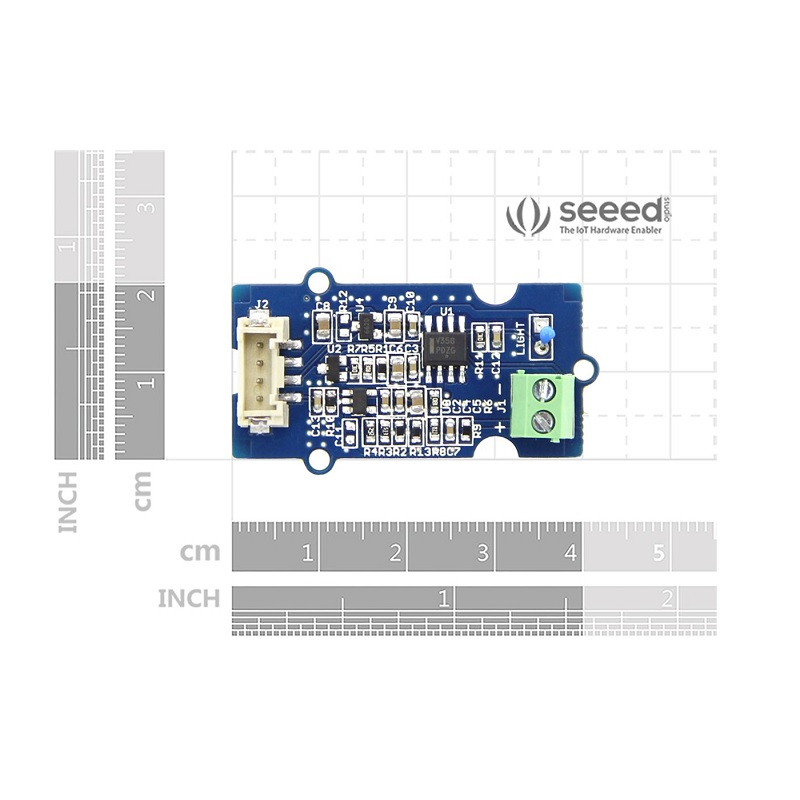

Dimensions (L x W)40mm x 20mm
Shipping Weight0.04 kg

Frequently Asked Questions

What is the purpose of the cold-junction compensation in this module?

The module includes a thermistor to measure the ambient temperature at the connector (cold junction). This measurement is used by the onboard amplifier to compensate for the voltage offset created by the temperature difference between the measurement tip and the connector, which is essential for accurate thermocouple readings.

Can I use this sensor with a 5V Arduino board?

Yes, the module is designed to operate from a 3.3V to 5V DC supply, making it directly compatible with standard 5V Arduino boards like the Uno. Simply connect it using the included Grove cable to a digital or analog Grove port, or wire it directly to the microcontroller's power and input pins.

What is the maximum temperature the thermocouple probe can withstand?

The K-Type thermocouple probe included with this module is rated for continuous measurement up to +600°C. The probe is insulated with glass fiber, which provides good thermal resistance and flexibility. Ensure the amplifier module itself is kept within its operating range of -40°C to +125°C.

How do I interpret the sensor's output signal?

The module outputs an analog voltage signal proportional to the measured temperature. You will need to read this voltage with an ADC pin on your microcontroller and apply a conversion formula or library (often provided by Seeed Studio Studio) to translate it into a temperature value in degrees Celsius, accounting for the cold-junction compensation.

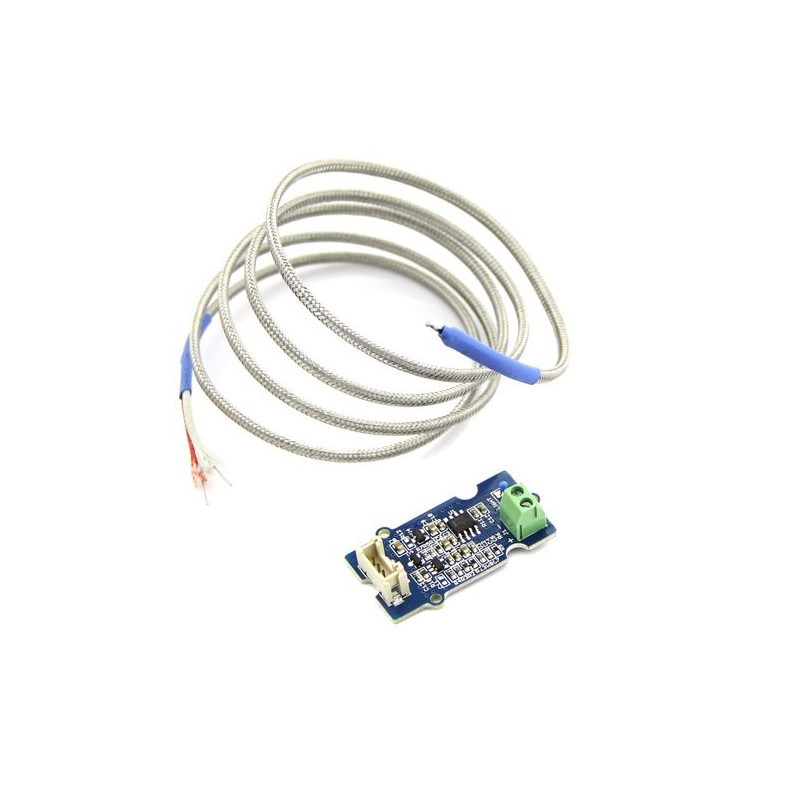

Package Includes

  • 1 x Grove High Temperature Sensor Amplifier Module
  • 1 x K-Type Thermocouple Temperature Sensor (1m cable)
  • 1 x Grove 4-pin Cable

Additional Information

Weight 0.04 kg
Dimensions 4 × 2 cm
