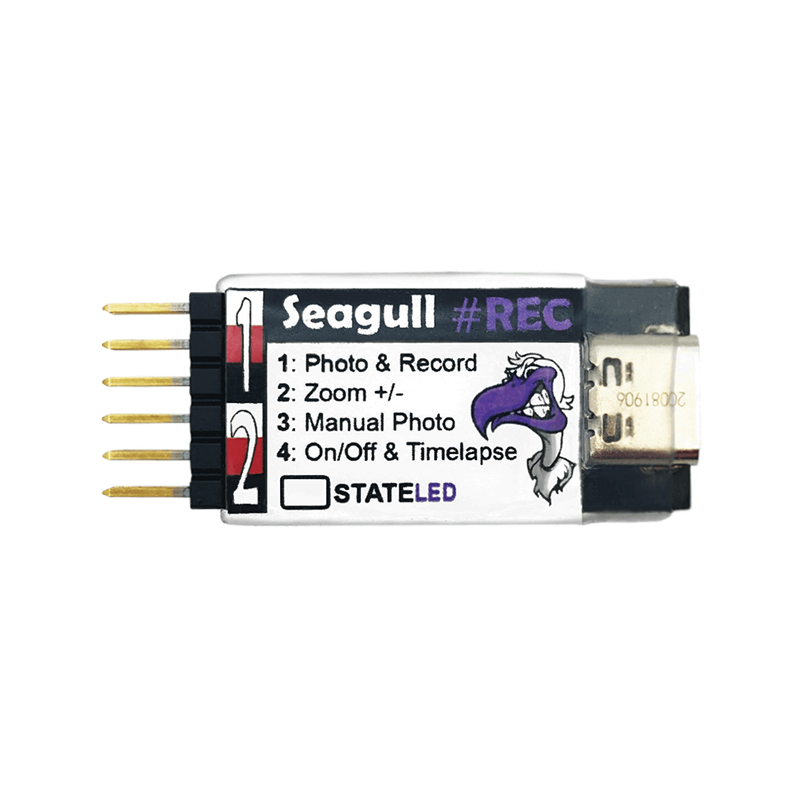

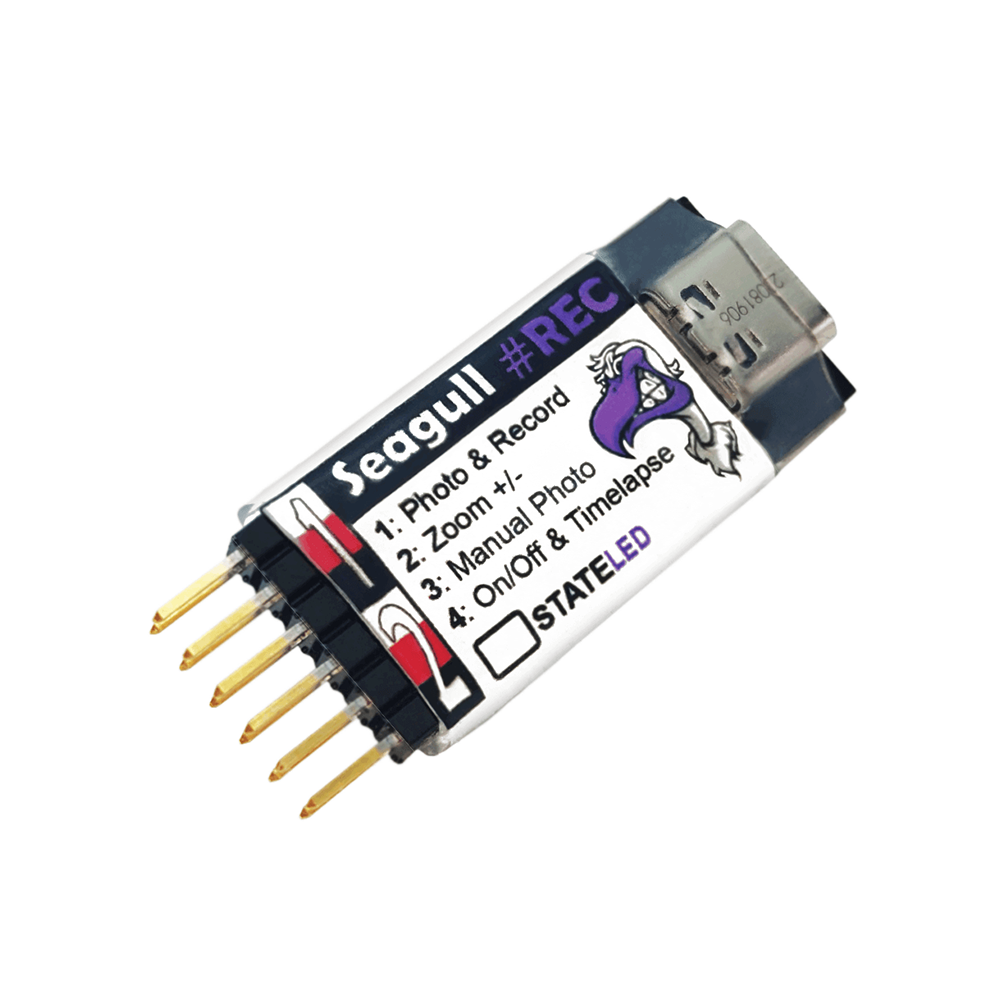

Seagull UAV UAV #REC Camera Controller
The Seagull UAV UAV #REC Camera Controller provides direct PWM-based control for Sony MULTI interface cameras from flight controllers like Pixhawk or standard R/C transmitters, enabling in-flight photo, video, and zoom commands for aerial imaging and mapping platforms.
Features
- Direct control for Sony MULTI interface cameras via PWM signal.
- Wide voltage input range from 3.6V to 16V with a low 25mA average current draw.
- Compact and lightweight design measuring 41mm x 17.5mm x 6.1mm and weighing 4g.
- Supports video start/stop, zoom, photo modes, power management, and timelapse.
- Compatible with Pixhawk, DJI flight controllers, and standard R/C radio systems.
Out of stock
The Seagull UAV #REC is a dedicated interface module designed to bridge professional flight control systems with Sony cameras equipped with the MULTI accessory terminal. It translates standard R/C PWM servo signals (1000–2000µS) into precise camera commands, allowing pilots to trigger complex shooting sequences without manual intervention.
Engineered for reliability in UAV environments, its circuit is protected for input voltages up to 16V, with a recommended 5V supply. The ultra-compact PCB footprint and minimal weight ensure it can be integrated into even tightly packed aerial photography or mapping drones without affecting flight performance or balance.
Additional Information
| Weight | 0.004 kg |
|---|---|
| Dimensions | 4.1 × 1.75 × 0.61 cm |
