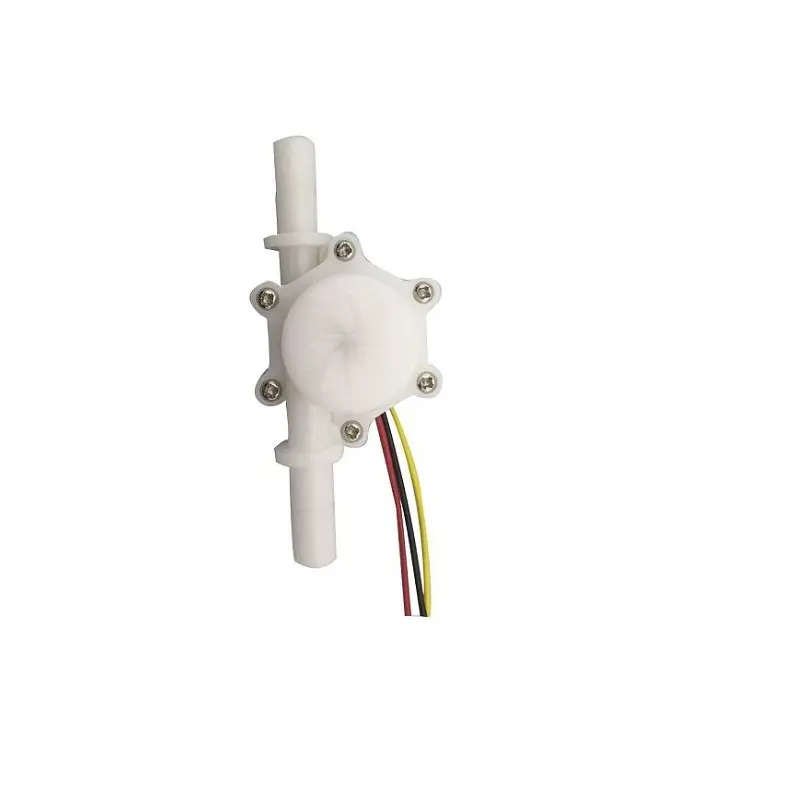

Saier HZ83C Water Flow Sensor (0.3–10 L/min) - DC 4.5-18V
The Saier HZ83C is a turbine-based water flow sensor designed for precise monitoring of liquid flow rates from 0.3 to 10 L/min. Operating on a wide DC 4.5-18V supply, it provides a digital pulse output compatible with microcontrollers like Arduino, Raspberry Pi, and industrial PLCs for flow measurement and control applications.
Features
- Turbine-based flow sensor with a measurement range of 0.3 to 10 liters per minute.
- Wide operating voltage range from DC 4.5V to 18V with low current consumption (≤15mA).
- Provides digital pulse output (high ≥4.5V, low ≤0.5V) for easy interface with microcontrollers.
- Durable construction rated for working pressures up to 1.20 MPa.
- Compact form factor (approx. 12 x 10 x 4 cm) for installation in confined spaces.
Out of stock
The Saier HZ83C Water Flow Sensor employs a precision turbine mechanism to translate fluid velocity into a corresponding digital pulse signal. Each rotation of the internal impeller generates a square wave output, allowing flow rate to be calculated by measuring the pulse frequency. This electromechanical design provides a robust and direct method for liquid flow monitoring.
Engineered for reliability, the sensor features a sealed housing capable of withstanding pressures up to 1.20 MPa and offers high insulation resistance (>100 MΩ). Its wide 4.5-18V DC input range ensures compatibility with various power supplies and logic levels, making it suitable for integration into both 5V and 3.3V microcontroller systems, industrial control panels, and automated fluid management setups.
Additional Information
| Weight | 0.041 kg |
|---|---|
| Dimensions | 12 × 10 × 4 cm |
