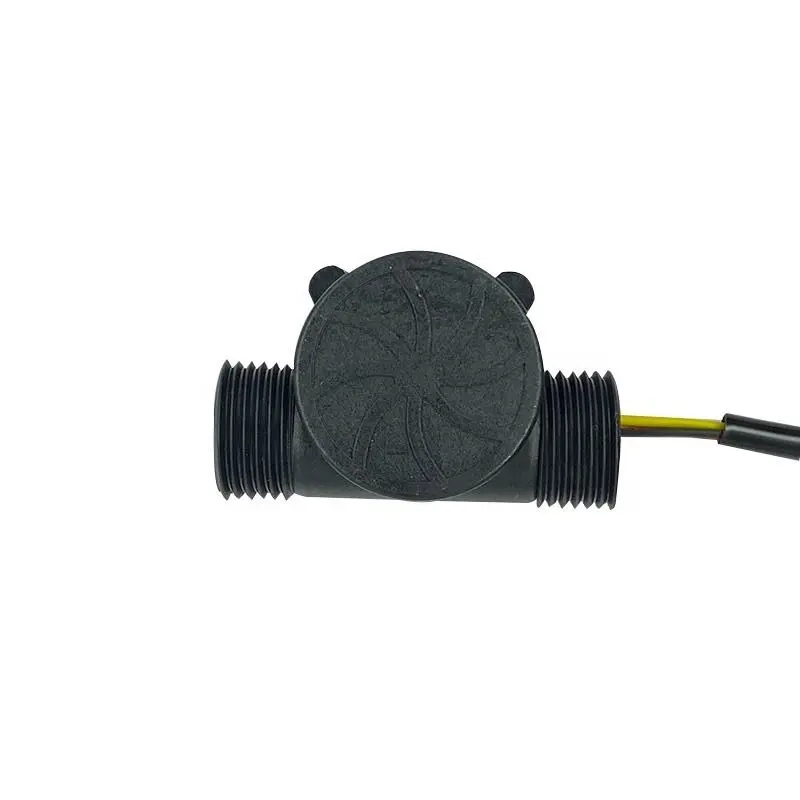

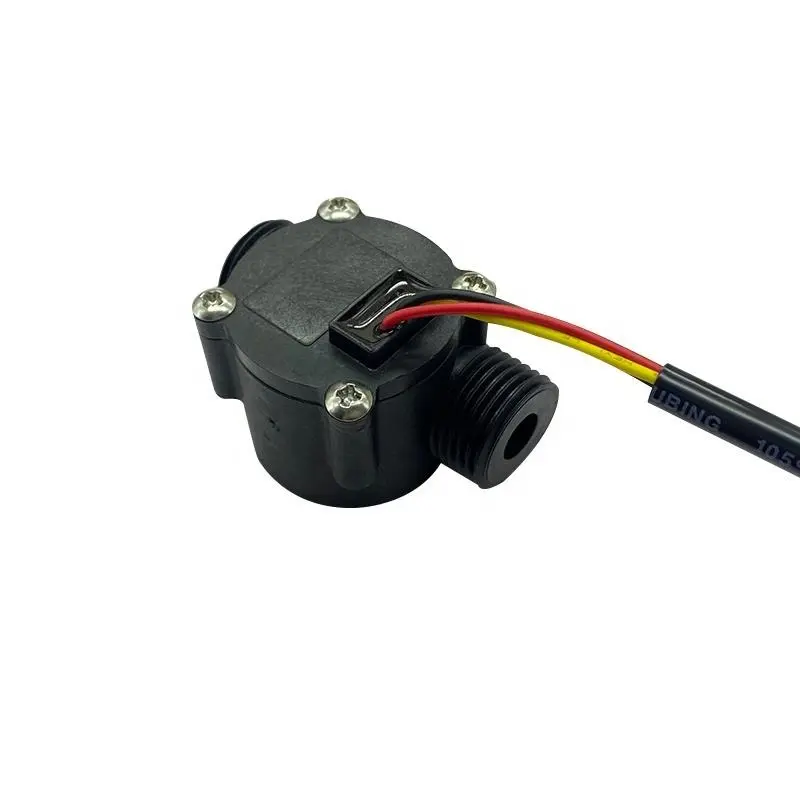

Saier HZ21WA-C Water Flow Sensor (1–30 L/min, 4.5–18V)
The Saier HZ21WA-C is a compact turbine-based water flow sensor designed for precise flow rate monitoring from 1 to 30 L/min. Operating from a 4.5–18V DC supply, it provides both analog and digital output signals for easy integration with microcontrollers, PLCs, and IoT systems in industrial and automation applications.
Features
- Turbine-based sensor provides flow rate measurement from 1 to 30 liters per minute.
- Wide operating voltage range of 4.5–18V DC with low current draw (≤15mA).
- Durable construction rated for working water pressures up to 1.75 MPa.
- Offers both analog and digital output options for flexible system integration.
- Compact design facilitates installation in confined spaces and inline plumbing.
Out of stock
The Saier HZ21WA-C employs a precision turbine rotor to measure liquid flow. As fluid passes through the sensor body, it spins the turbine, generating a pulsed output signal proportional to the flow rate. This signal can be interpreted as either a frequency (digital) or a voltage (analog), providing compatibility with a wide range of data acquisition systems, from Arduino and Raspberry Pi to industrial PLCs.
Built for reliability in demanding environments, the sensor features a robust housing capable of withstanding pressures up to 1.75 MPa. Its electrical isolation, with an insulation resistance greater than 100 MΩ, ensures stable operation and protects connected electronics. The sensor is also suitable for monitoring compatible gases, extending its utility beyond liquid flow applications.
Additional Information
| Weight | 0.055 kg |
|---|---|
| Dimensions | 12 × 10 × 4 cm |
