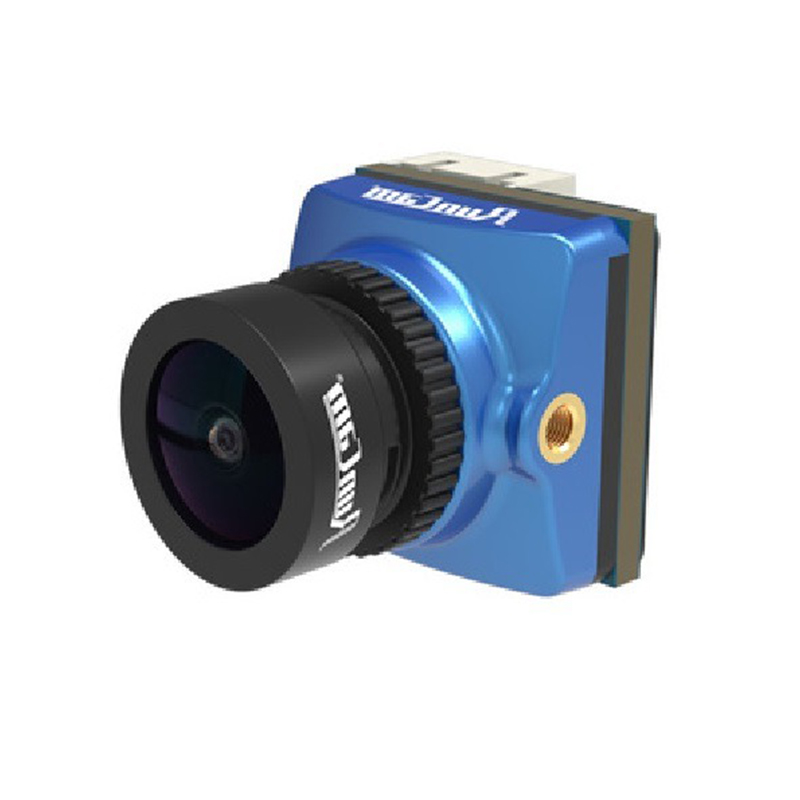

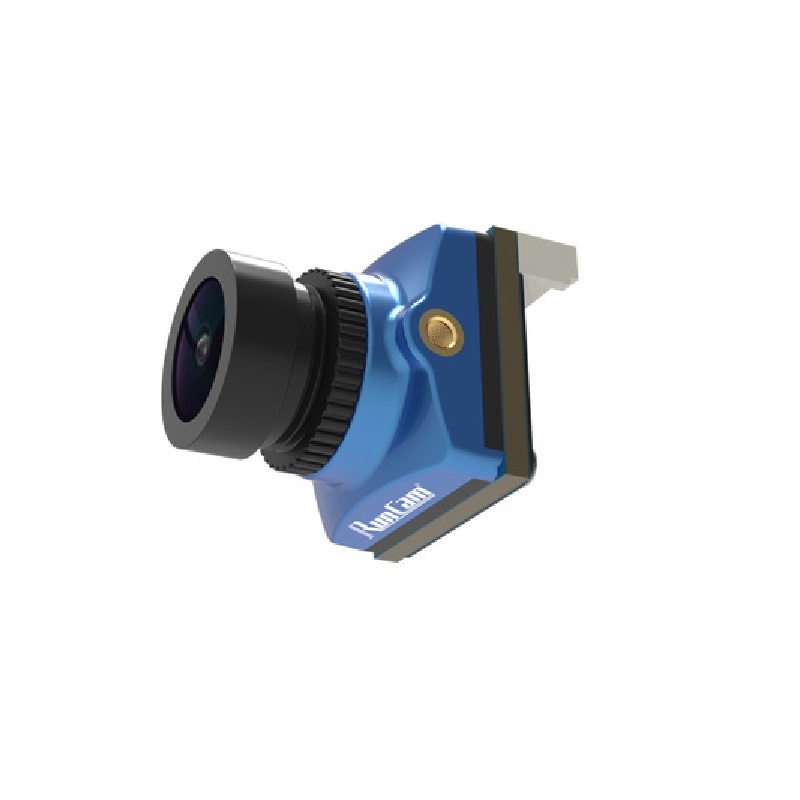

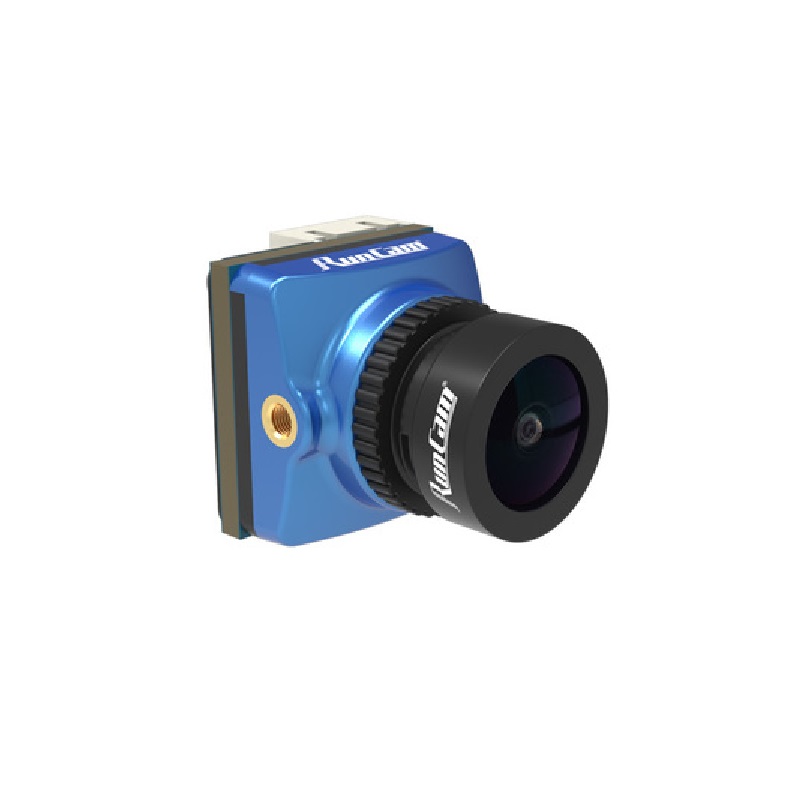

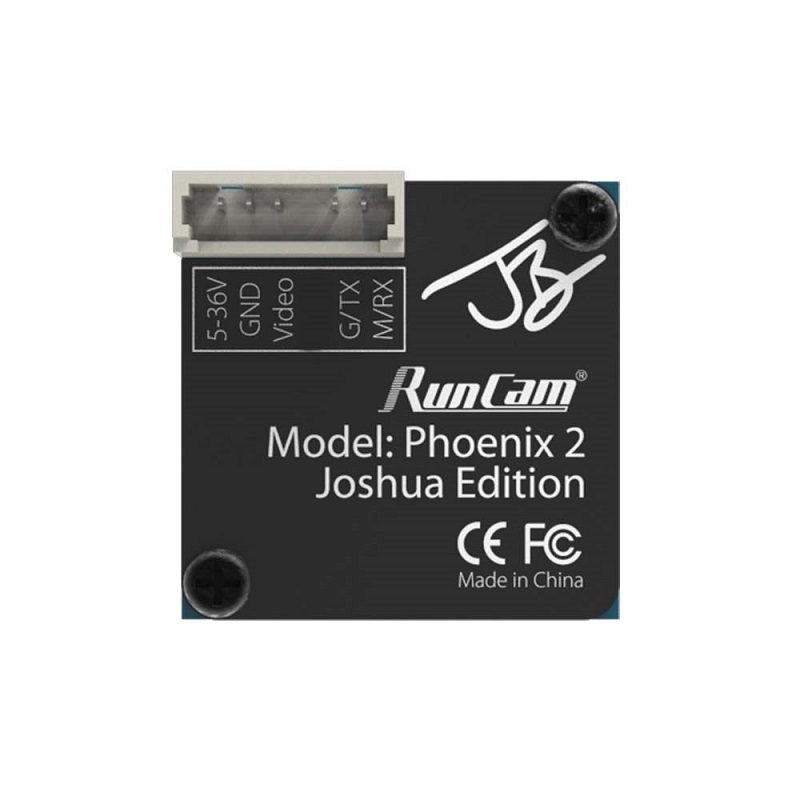

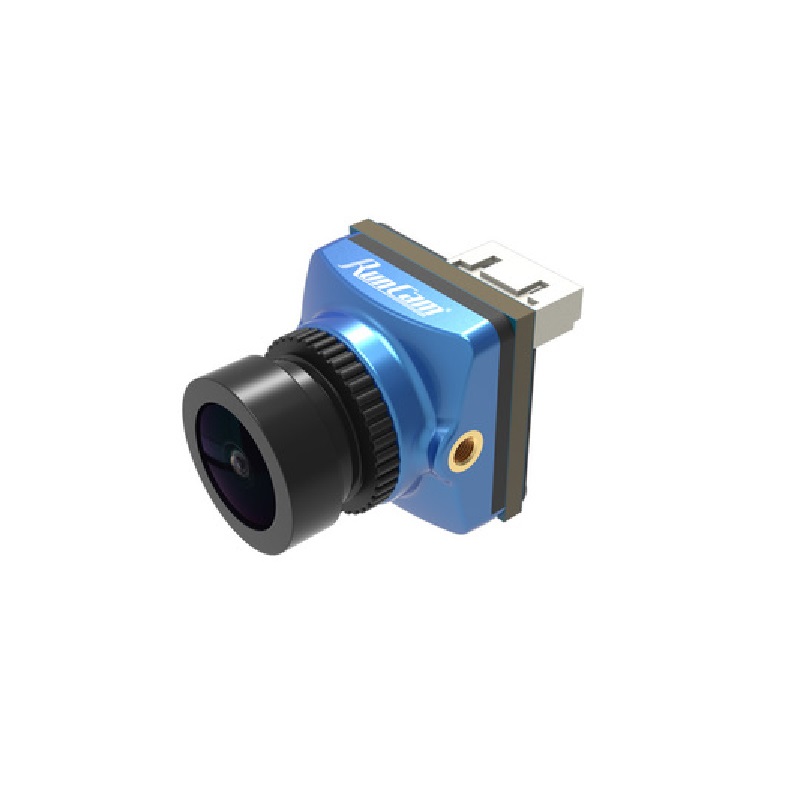

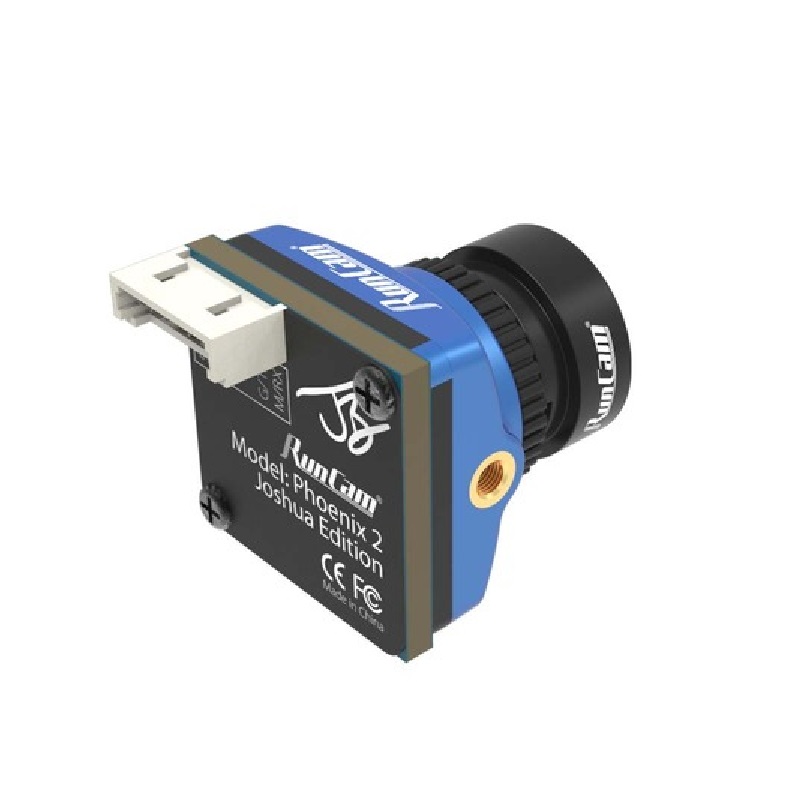

RunCam Phoenix 2 JB Micro FPV Camera for Quadcopters
The RunCam Phoenix 2 JB Micro FPV Camera is a compact, high-performance analog camera featuring a 1/2″ CMOS sensor, 1000TVL resolution, and a 155° FOV 2.1mm M12 lens. It offers switchable PAL/NTSC signal systems and UART control for OSD menu adjustments, making it compatible with a wide range of FPV quadcopter builds.
Features
- 1/2″ CMOS Sensor for vivid, high-resolution 1000TVL video output.
- 2.1mm M12 Lens with 155° FOV (4:3) and f/2.0 aperture for excellent low-light performance.
- UART Control (Joshua Bardwell Edition) enables on-screen display menu for settings adjustment.
- Switchable PAL/NTSC signal systems and 4:3/16:9 screen formats for broad compatibility.
- Compact 19x19mm micro form factor weighing only 9 grams for lightweight builds.
Out of stock
The RunCam Phoenix 2 JB Micro FPV Camera builds upon its predecessor with an upgraded CPU and a high-performance 1/2″ CMOS image sensor, delivering rich, natural color and reduced image artifacts like red flare and purple fringing. Its six-layer glass lens and optimized aperture provide superior clarity and performance in both daylight and low-light conditions.
Designed for integration into modern FPV drones, this camera supports image mirror and flip functions and features a low-latency video pipeline essential for racing and freestyle flying. The Joshua Bardwell Edition includes UART control, allowing pilots to access and change camera settings directly via an OSD menu overlay, streamlining the setup process without requiring external buttons or a separate configuration board.
Additional Information
| Weight | 0.009 kg |
|---|---|
| Dimensions | 1.9 × 1.9 cm |
